HIGH QUALITY AUDIO THROUGH DSP

The  power  of  Fusion’s  Digital  Signal  Processing  (DSP)  enables  the optimization of Fusion speakers in each audio zone on your vessel. Our system approach ensures every step of the audio chain is optimized through calculations by our engineers to deliver a technically superior listening experience – without the need for you to have a technical understanding.  From  the  kick  drum  to  your  eardrum  Fusion  DSP reproduces your music the way the musicians intended.

WORLD’S FIRST MARINE WI-FI STEREO

Wi-Fi audio streaming delivers higher quality audio through Wi-Fi’s exceptionally faster data transfer rate in comparison with Bluetooth. PartyBus over Wi-Fi allows for quick and simple network setup.

FUSION-PARTYBUS™

The power of PartyBus kicks in when you add more PartyBus enabled stereos to your entertainment system.  Each additional PartyBus enabled stereo gives you the option to join Party Mode and play the same perfectly synced audio source through the entire vessel. Switch into Personal Mode and listen to available audio sources from your stereo in the area of your choice without disrupting Party Mode in the other areas of the vessel.

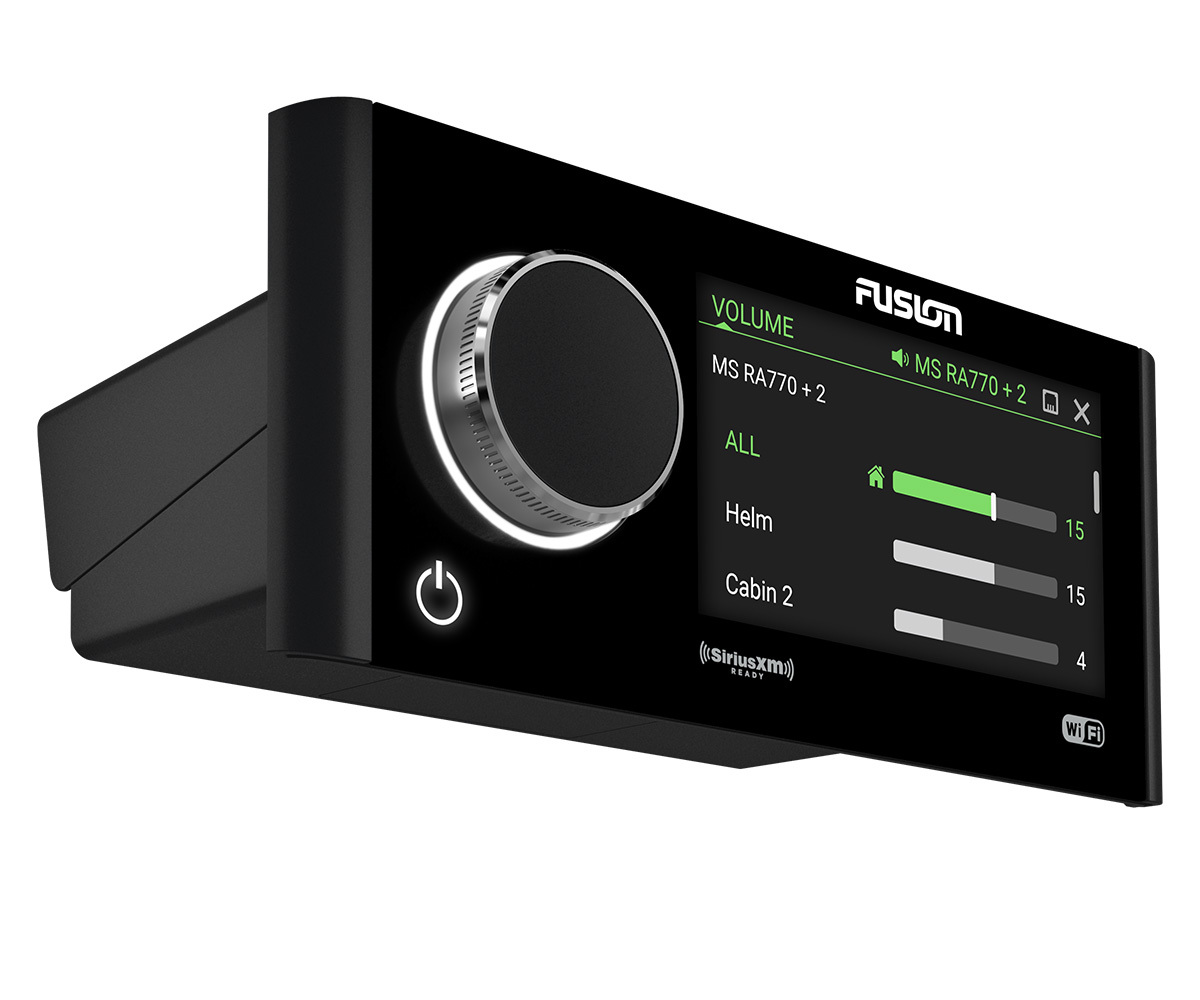

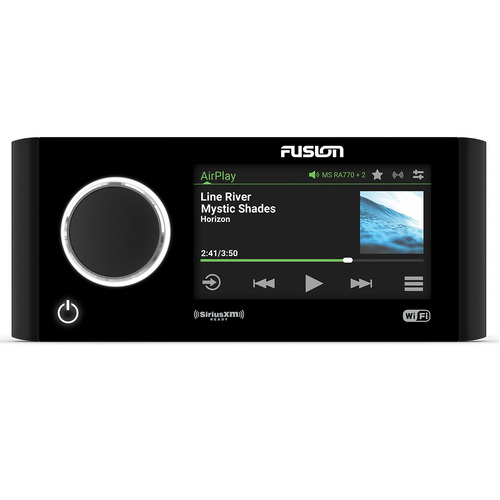

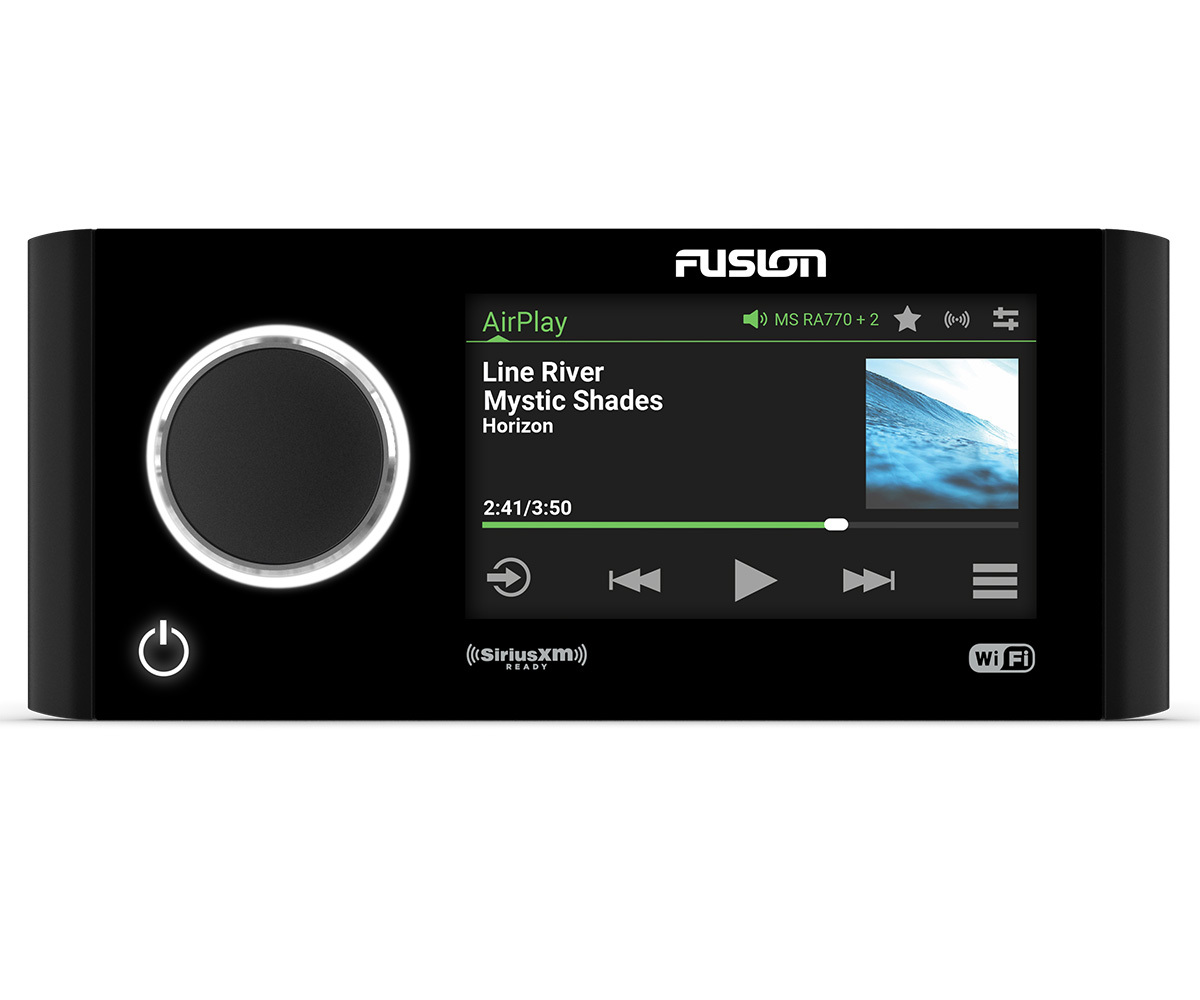

TOUCHSCREEN DISPLAY

Control your entertainment with the touch of a finger on the optically bonded touchscreen display. Simply tap the screen to pause and play, or swipe through your playlist to your favourite song – the future has arrived.

OVER-THE-AIR SOFTWARE UPDATES

Over-the-air software updates are now available from your smartphone or compatible device via the free Fusion-Link™ app, making the Apollo Series intelligently simple and always up to date.

FUSION-LINK™ CONTROL

The Fusion-Link remote control app gives you the flexibility to control your onboard entertainment from anywhere on the boat, with multiple connectivity options available:

  • NMEA 2000 network via a partnered Multi-Function Display.
  • Ethernet via a partnered Multi-Function Display.
  • Wi-Fi via a wireless Ethernet router or wireless network.
  • NRX Series remote via a stand-alone Fusion Remote Control Network.
  • Bluetooth Wireless Technology via a compatible Apple or Android device.
  • ANT via a compatible Garmin watch with the Fusion-Link Lite app.

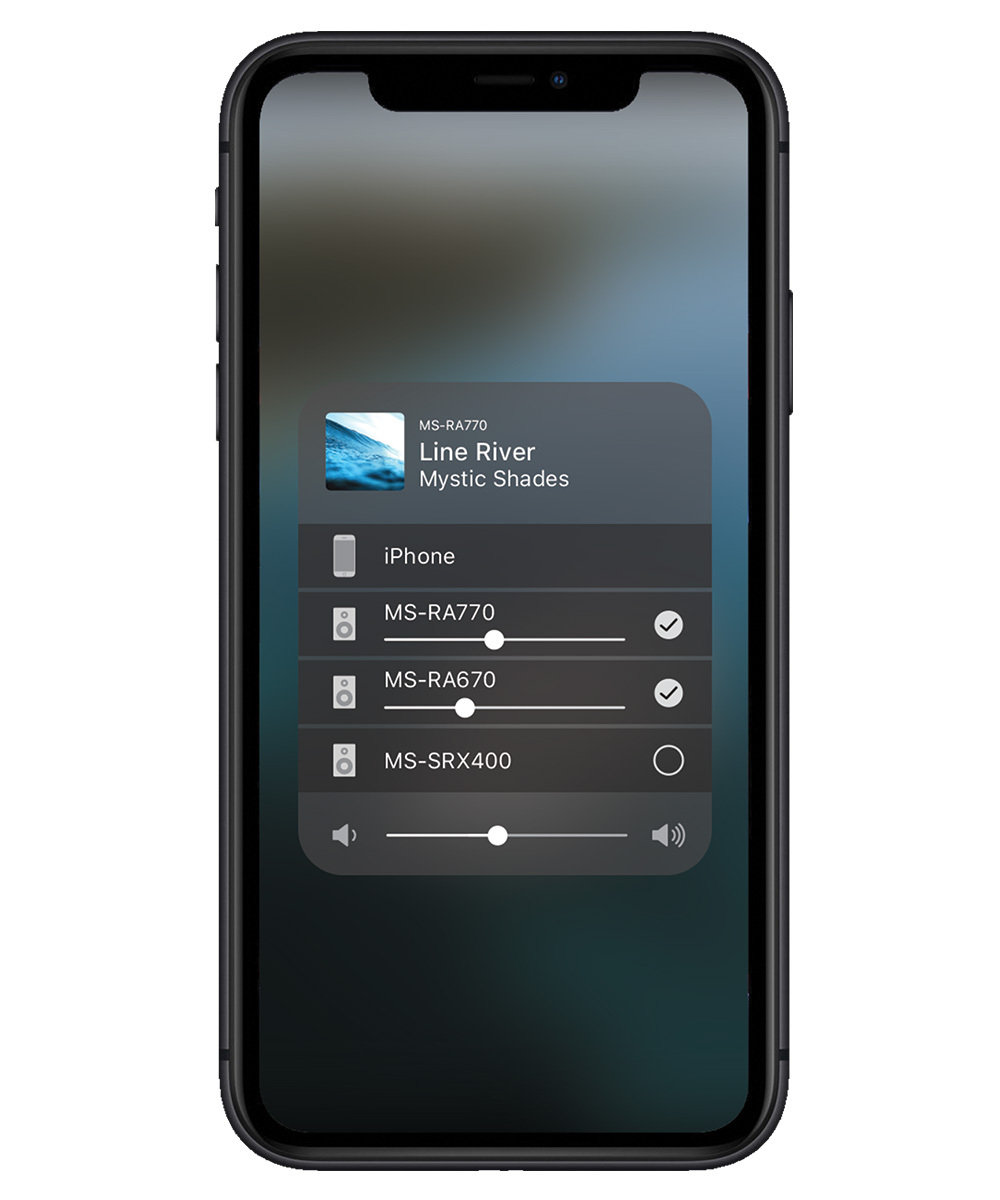

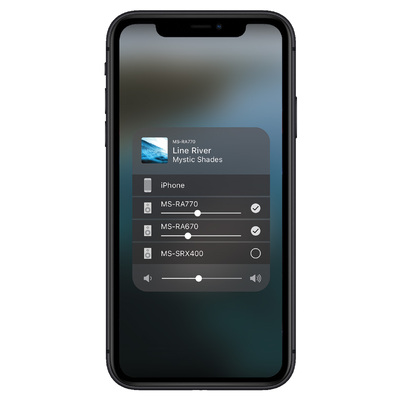

APPLE AIRPLAY®

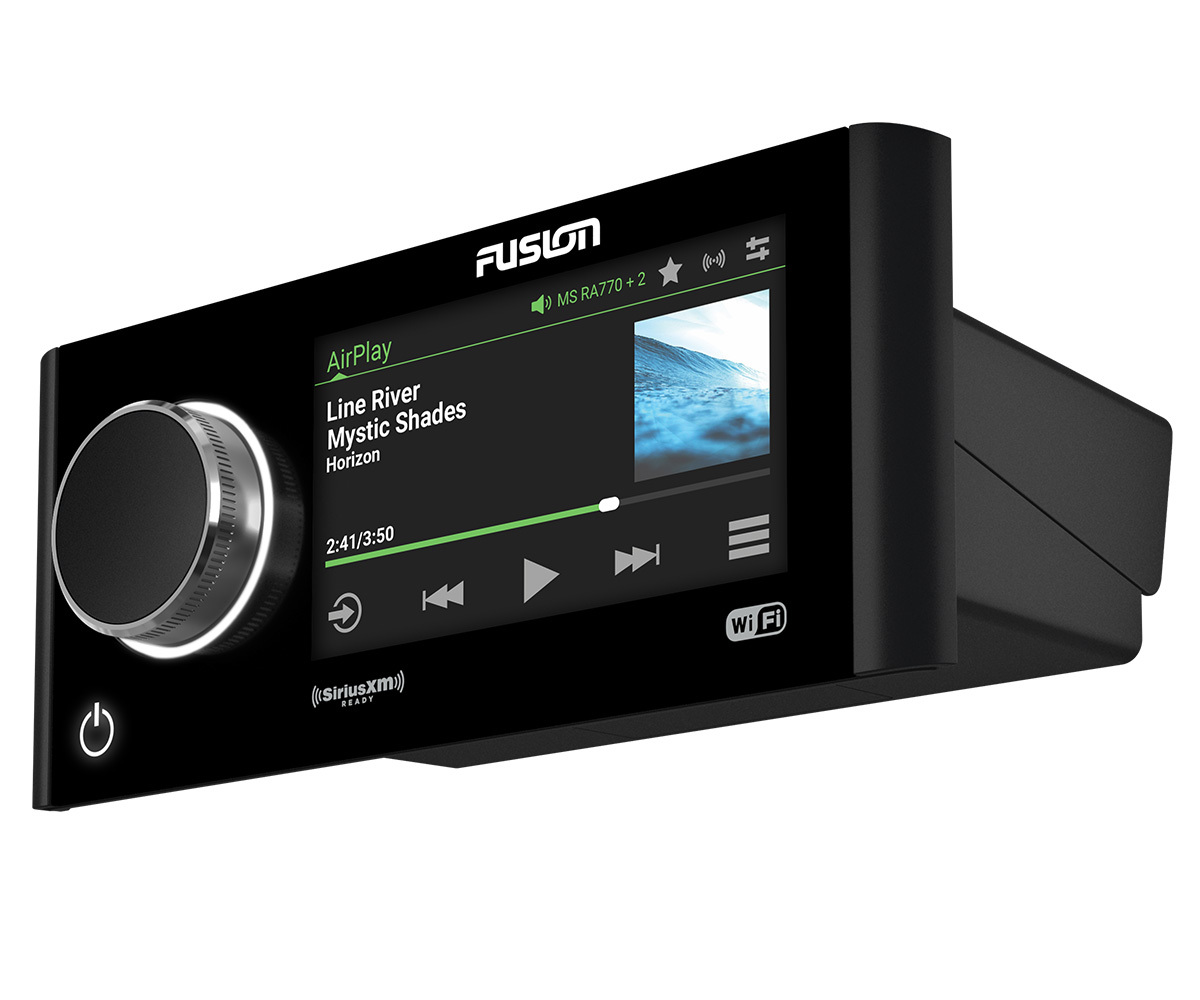

Enjoy seamless high quality audio streaming via Apple AirPlay over Wi-Fi from a compatible Apple device to the Apollo RA770. Control of your favourite music app is only a tap away with your iPhone, on either the control centre, lock screen or in-app controls.
Note: AirPlay is not supported over PartyBus.



Display Display Size 4.3”
Capacitive Touch Panel (with swipe control) Yes
LCD Color Display Yes
Operating System Fusion
General Sources AM / FM / Bluetooth® / Apple AirPlay® / PartyBus / digital optical input / USB audio / AUX x 2 / UPnP / MTP / SiriusXM-Ready™ (for USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only, does not support traffic and weather)
Digital Signal Processing (DSP) Yes
Speaker Presets (easy to tune) Yes
Fusion-Link Control (Wireless) Yes - via Bluetooth and Wi-Fi
PartyBus Technology Yes (receive and broadcast - wired or wirelessly)
Bluetooth Wireless Technology Bluetooth music streaming, music control (via devices compatible with A2DP/ AVRCP 1.3 Bluetooth protocols).
SiriusXM-Ready™ Yes - with advanced features
Wi-Fi Yes
ANT Yes
NMEA 2000 (Control via MFD - Fusion-Link) Yes
Works With NRX Remotes Yes
Digital Optical Input (SPDIF) Yes
Fits DIN Cut-Out Yes
Water Resistance (IPX rating) IPx7 from the front panel when installed correctly
Internal Amplifier Class-D
Power Output Peak Power 280 W max
Languages Multi-Language User Interface English / French / German / Spanish / Dutch / Italian

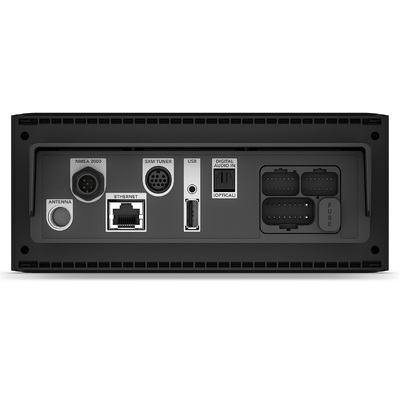

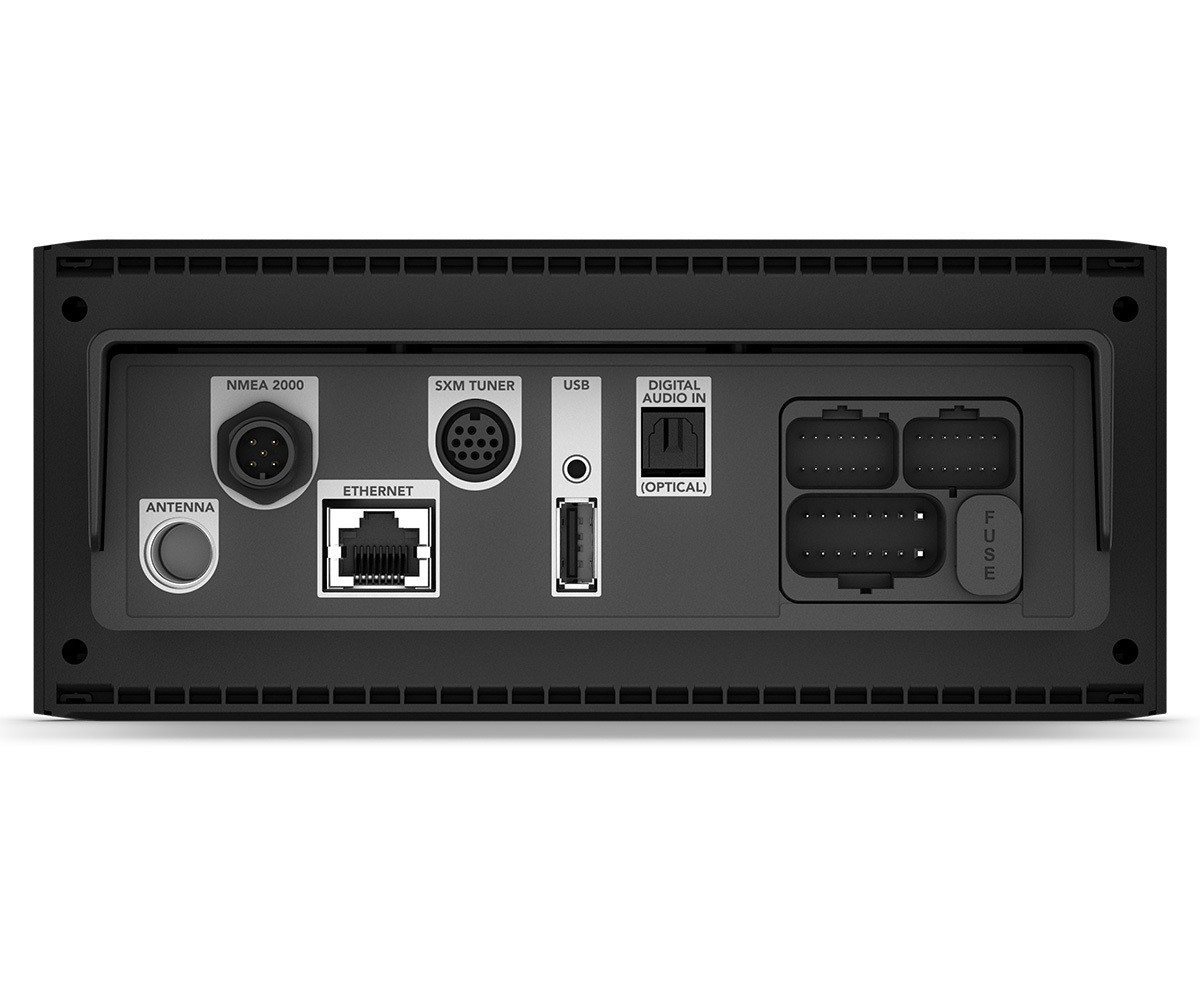

Connections Auxiliary Inputs 2 x RCA inputs (AUX1, AUX2)
SPDIF Optical Audio-in One (1) SPDIF port - Supports TV audio output
Ethernet One (1) Ethernet port
USB 2.0 Port One (1) USB 2.0 port (for phone charging / media playback)
SiriusXM-Ready One (1) SiriusXM port (Requires optional SiriusXM Connect vehicle tuner. Does
not support traffic and weather)
AM / FM One (1) Motorola antenna connector port
Speaker 4 x speaker (2 zone amplified)
RCA Pre-Out (Left, Right and Subwoofer) 4 zones (requires external amplification)
Operating Voltage +10.8V - 16V DC
DAB+ Ready Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported
Line Out 4 (1 x L + R per zone. Requires external amplification)
Subwoofer Out 4 (1 per zone. Requires external amplification)
Updates Software Updates Over-the-air updates via the Fusion-Link app or via USB
SKU FUS.010-01905-00
Model # 010-01905-00
UPC/EAN 0753759198251
Brand Fusion
Shipping Weight 1.8200kg
