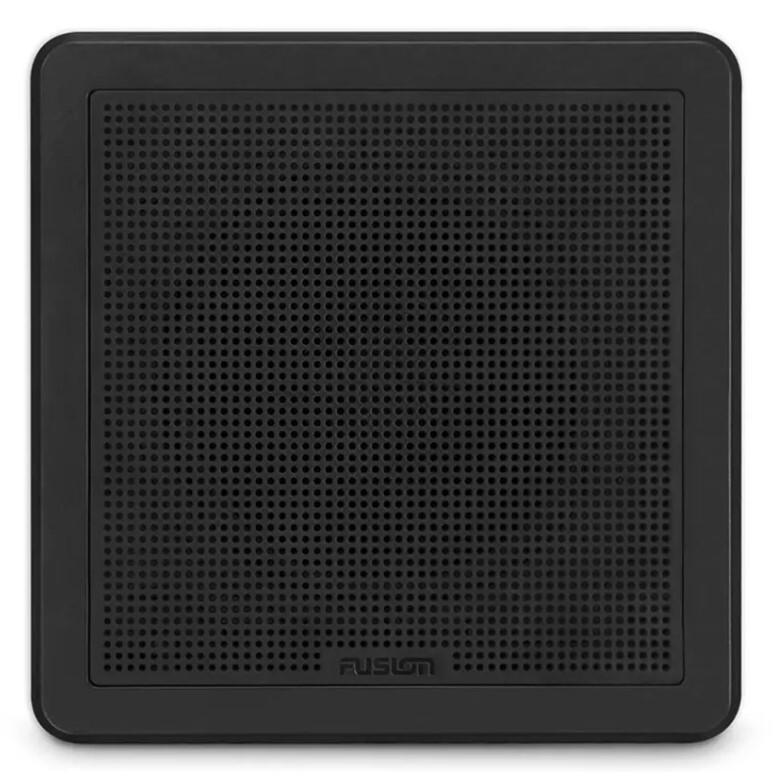

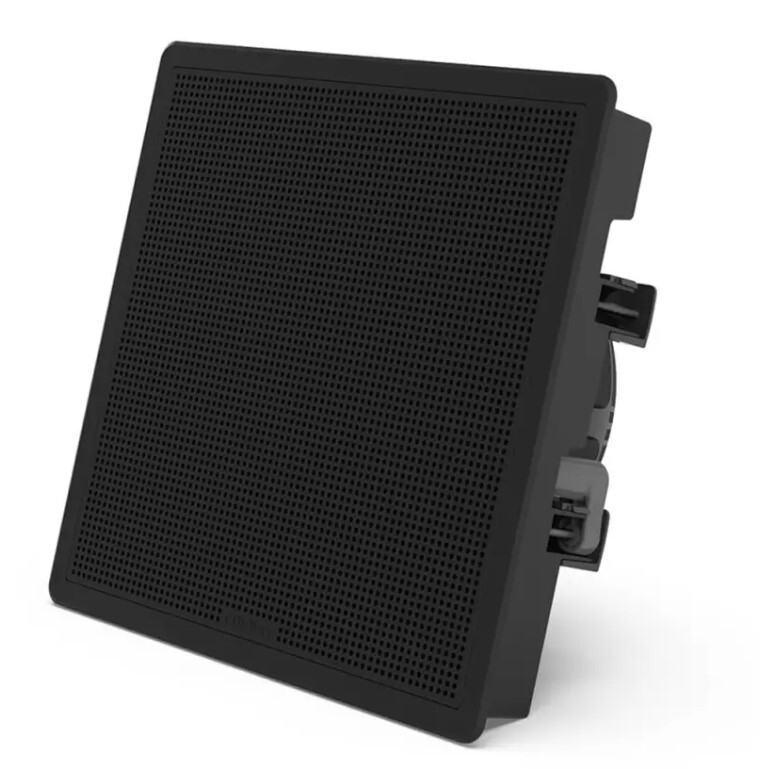

The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.


The FM Series speakers are designed to be flush-mounted with a mounting profile no thicker than 2.5 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series speakers to blend in seamlessly with your boat.


The FM Series speakers feature an intelligent mounting system. Simply place the speaker into the cutout, tighten the screws and the speaker legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.


Physical dimensions Round (Diameter x Depth): 11.18" x 5.49" (284 x 139.5 mm)
Square (WxHxD): 11.18" x 11.18" x 5.49" (284 x 284 x 139.5 mm)
Water and dust rating IP65
Speaker size 10"
Peak power (Watts) 400 W
RMS power (Watts) 120 W
Sensitivity (1 W/1 m) 87 dB
Magnetic structure 41 oz
Frequency response 30 Hz - 2 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 40 - 300 W
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1.5"
Cone material Polypropylene cone with rubber surround
Compass-safe distance 150" (381 cm)
Warranty 3 years

Mounting dimensions

Mounting diameter clearance Round: 10.59" (269 mm)
Square: 10.59" x 10.59" (269 x 269 mm)
Mounting depth clearance 5.51" (140 mm)

Optimum enclosure recommendations

Optimal enclosure size 1.4 cubic ft (40 L)
SKU FUS.010-02301-11
Model # 010-02301-11
UPC/EAN 0753759236731
Brand Fusion
Shipping Weight 4.2500kg
