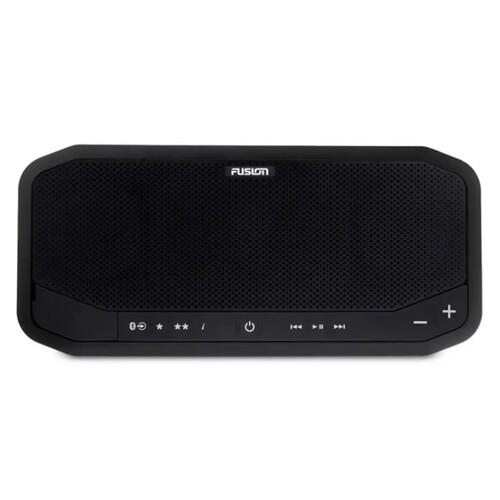

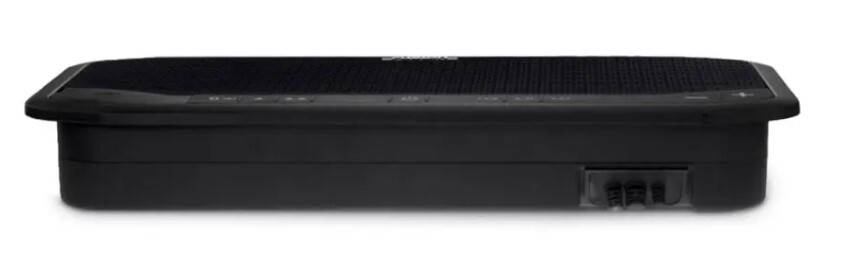

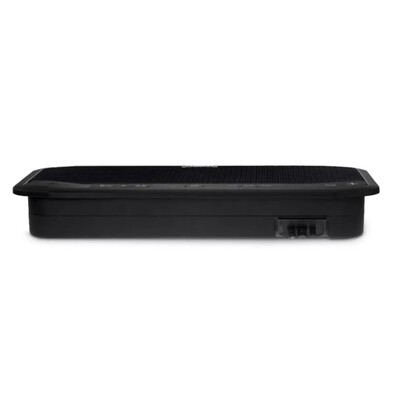

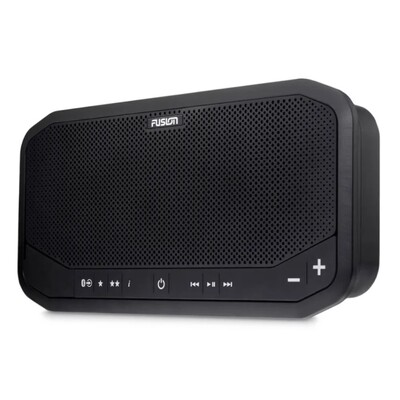

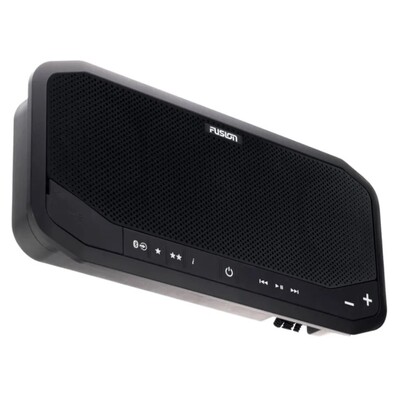

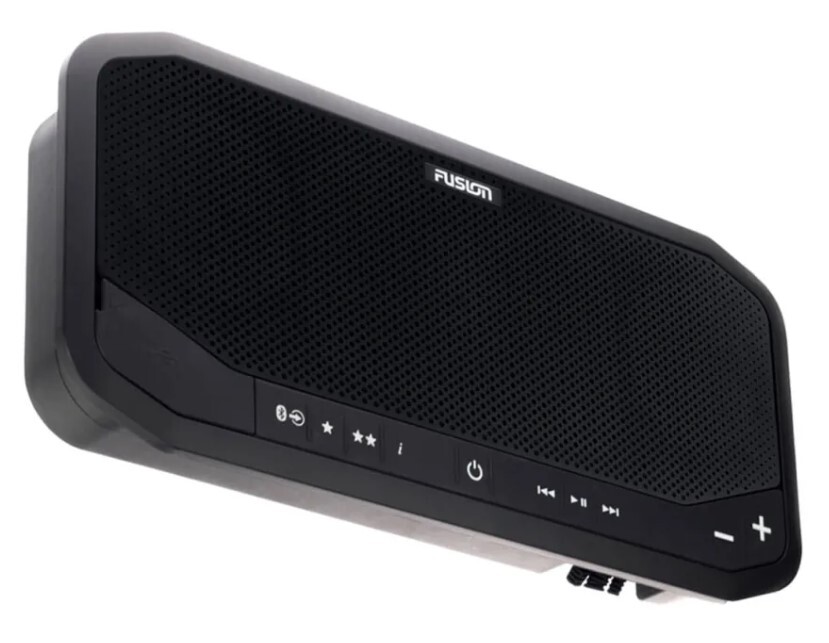

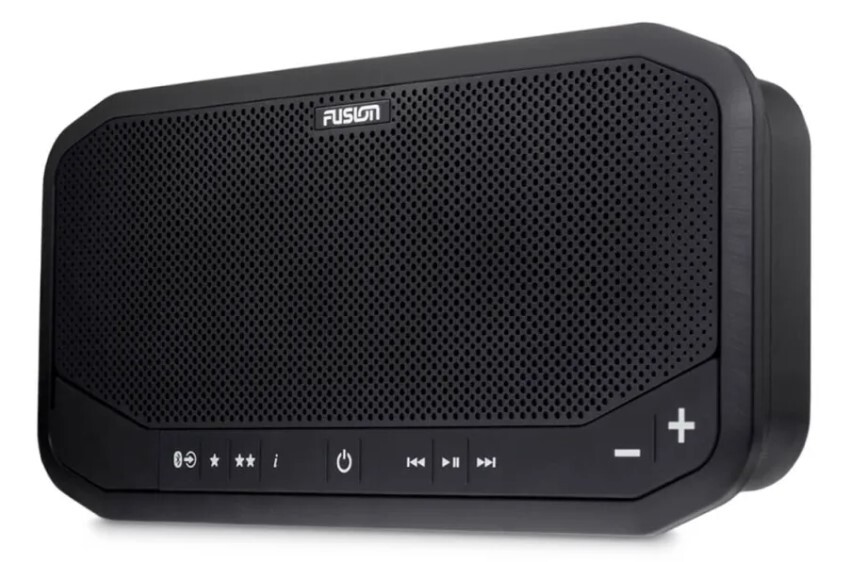

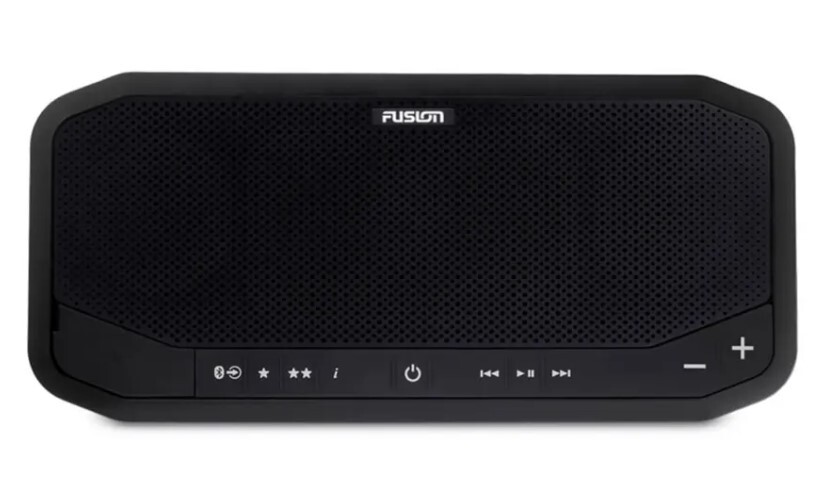

PLUG-AND-PLAY, ALL-IN-ONE SOLUTION

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.

IP65 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor comes with a high-grade plastic grille and UV-resistant design.

QUICK AND SIMPLE TO INSTALL

The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.

FUSION DIGITAL SIGNAL PROCESSING

A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

PERFECTLY TUNED ENCLOSURE

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimised audio onboard from a single unit.



General
DIMENSION 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm)
WEIGHT

2.54 lbs (1.15 kg)
WATER RATING IP65 (when properly installed)
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
CURRENT (MAX) 10 A

Networking
BLUETOOTH® WIRELESS RANGE up to 30 ft (10 meters)
ANT® WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH®: 2.4 GHz @ +9 dBm nominal
ANT®: 2.4 GHz @ +9 dBm nominal

Audio
AMPLIFIER Class-D

Stereo Features
PEAK POWER 140 watts
RATED POWER OUTPUT (2 OHM) 43 watts RMS x 2 @ 14.4 V input < 1% THD
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) yes (preconfigured)
FUSION-LINK™ CONTROL yes (smart device and Garmin watch)
BLUETOOTH® WIRELESS TECHNOLOGY
ANT® WIRELESS TECHNOLOGY
MULTI-LANGUAGE INTERFACE

Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish
SOFTWARE UPDATES USB
WARRANTY 1 year

Sources
SUPPORTED SOURCES

AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x2, AOA

Connections
AUXILIARY INPUTS (RCA) 2
USB 2.0 PORTS 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
LINE OUT 1 RCA Output (AUX)

Electrical features
POWER INPUT 10.8 - 16 VDC
COMPASS SAFE DISTANCE 7.6" (229 mm)

General


Physical dimensions (HxWxD) 6.10″ x 13.54″ x 1.97″ (155 x 344 x 50 mm)
Weight 2.54 lb (1.15 kg)
Water rating IP65 (excluding rear connectors)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 10 A
Fuse 10 A
Bluetooth wireless range Up to 30 ft. (10 m)
ANT wireless range Up to 10 ft. (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +9 dBm nominal
ANT 2.4 GHz @ +9 dBm nominal
Compass-safe distance 7.6' (229 mm)

Stereo features


Built-in amplifier Class-D
Peak power 140 W
Rated power output 43 W rms x 2 @ 14.4 V input < 1% THD
Built-in Digital Signal Processing Yes
Fusion-Link™ control Yes (smartphone and Garmin watch)
Bluetooth wireless technology Yes
ANT wireless technology Yes
Language Dutch/English/French/German/Italian/Japanese/Mandarin Chinese/Spanish
Software updates USB
Warranty 1 year

Sources


Sources AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x2/AOA

Connectivity


Auxiliary input Two RCA inputs (AUX1, AUX2)
USB 2.0 One USB 2.0 port
AM/FM radio One Motorola antenna connector port
Line out 1 RCA output (AUX)
SKU FUS.010-02005-20
Model # 010-02005-20
UPC/EAN 0753759224998
Brand Fusion
Shipping Weight 1.1500kg
Shipping Width 0.344m
Shipping Height 0.050m
Shipping Length 0.155m
Shipping Cubic 0.002666000m3
Unit Of Measure ea
