MARINE-READY DESIGN WITH CONFORMAL COATED PCBS

Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

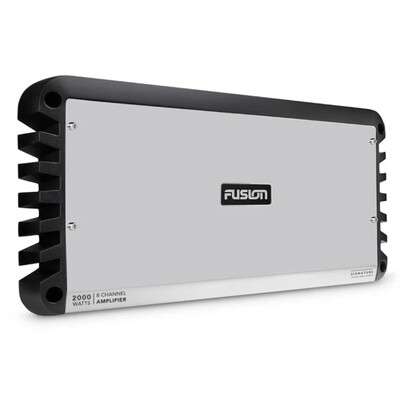

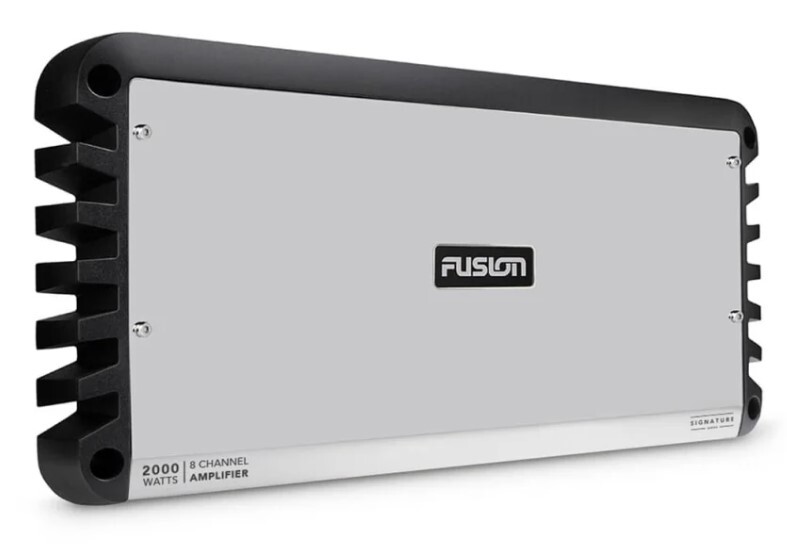

RIGID ALUMINUM ALLOY HEAT SINK

For increased efficiency, the rigid aluminium alloy heat sink is moulded to form a singular die-cast chassis. The fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

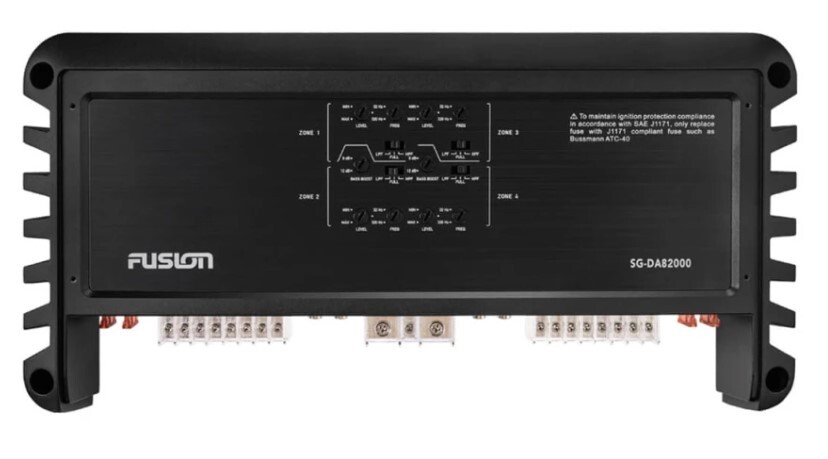

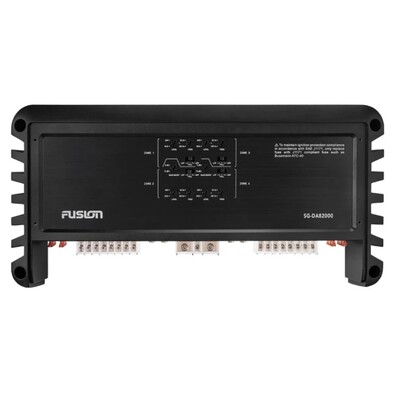

STAINLESS-STEEL MIRROR FINISH

The polished stainless-steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.

General

Physical dimensions (LxWxH) Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm)
6/8 channels: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier class D
Peak power (Watts) Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel: 1500 W
8 channel: 2000 W
Total rated power output - 4 Ohm (Watts) Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output (Watts) Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
5 channel: 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 280 W RMS x 3 @ 14.4 V input - 4 Ohm Bridged < 1% THD
8 channel: 280 W RMS x 4 @ 14.4 V input - 4 Ohm Bridged < 1% THD
Frequency response Monoblock Amplifier: 10 Hz - 320 Hz (-3 dB, dB @ 4 Ohm rated power) - subwoofer only
4/5 channels: 10 Hz - 50 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity 0.3 V - 8 V RMS (user adjustable)
Input impedance Monoblock/5 channel: 4k Ohm nominal
4/6/8 channels: 7k Ohm nominal
High-pass/low-pass full range filter Yes (user selectable)
HP variable crossover frequency Monoblock: 10 Hz - 80 Hz (subwoofer)
4/5/6/8 channels: 32 Hz - 320 Hz
LP variable crossover frequency Monoblock: 32 Hz - 320 Hz (subwoofer)
4/5/6/8 channels: 32 Hz - 320 Hz
Bass boost 0 dB - 9 dB, user adjustable (zone 3 only)
Operating voltage 10.8 V - 16 V DC
Current consumption (StandBy) < 1 mA @ 14.4 V input
Current consumption (Idle) < 2.5 A @ 14.4 V input
Current consumption (Max) Monoblock: 120 A
4/5 channels: 80 A
6 channel: 75 A
8 channel: 100 A
Fuse rating Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant)
4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)
8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant)
Operating temperature range 32° to 122° F (0° to 50° C)
Warranty 3 years
SKU FUS.010-02162-00
Model # 010-02162-00
UPC/EAN 0753759218812
Brand Fusion
Shipping Weight 6.1200kg
