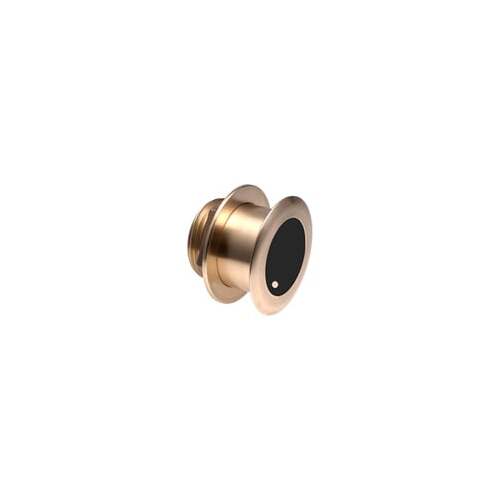

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,200 ft; an operating frequency of 130-210 kHz; a beamwidth of 9-15 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency CHIRP (130-210 kHz)
Transducer maximum depth 1,000 ft.
Transducer number of pins 8-pin
Transducer beamwidth 6°-10°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      16°-24° degree deadrise
SKU GAR.010-11937-21
Model # 010-11937-21
UPC/EAN 0753759995690
Brand Garmin
Shipping Weight 4.9000kg
