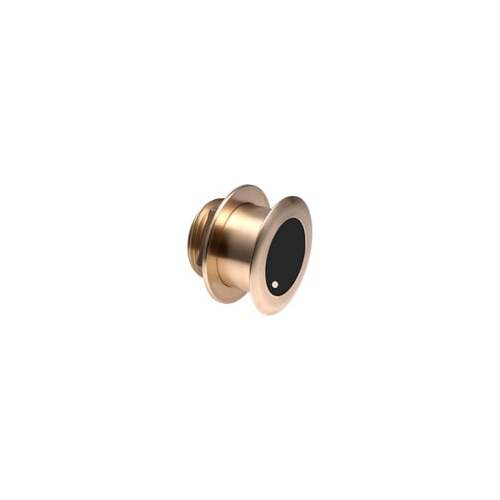

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 30 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer power 1 kW
Transducer frequency CHIRP 150-250 kHz
Transducer supported deadrise/transom angles      0°-7° degree deadrise
Transducer maximum depth 500 ft.
Transducer number of pins 8-pin
Transducer beamwidth 25°
SKU GAR.010-12181-20
Model # 010-12181-20
UPC/EAN 0753759123536
Brand Garmin
Shipping Weight 4.9900kg
