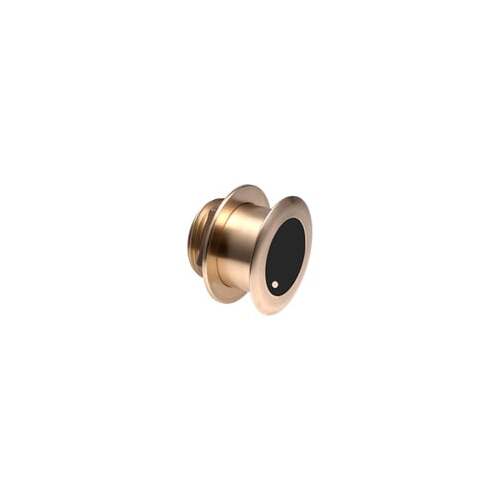

Garmin Airmar B175L (12° Tilt)
SKU: GAR.010-11938-21 | MPN: 010-11938-21
SAVE $227.86 (10%)
This product is End of Life (EOL)
Please Contact Us to confirm availability
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 2,000 ft; an operating frequency of 40-60 kHz; a beamwidth of 16-25 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
|Transducer cable length||39 ft.|
|Transducer power||1 kW|
|Transducer frequency||CHIRP (40-60 kHz)|
|Transducer maximum depth||2,000 ft.|
|Transducer number of pins||8-pin|
|Transducer depth/speed/temperature||Depth and Temperature|
|Transducer supported deadrise/transom angles||16°-24° degree deadrise|
