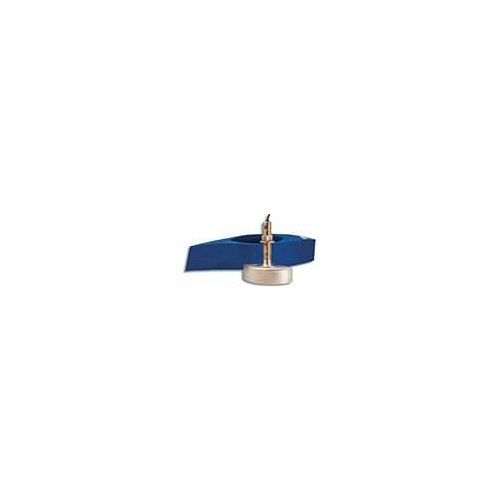

This mid-range 1 kW 8-pin transducer with a narrow beam is good for deep water and bottom definition. It has a depth of 1,500 to 2,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 14x23 to 3x5 degrees; and a 0 to 26 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.



Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency 50/200 kHz
Transducer maximum depth 1,500-2,200 ft.
Transducer number of pins 8-pin
Transducer beamwidth 14°x23°/3°x5°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles     0°-26° degree deadrise
SKU GAR.010-10703-20
Model # 010-10703-20
UPC/EAN 0753759971892
Brand Garmin
Shipping Weight 8.7000kg
