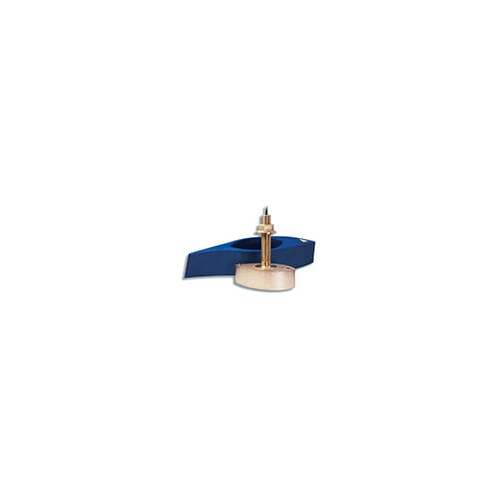

This best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail.

This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.


Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency CHIRP 42-65 kHz & 130-210 kHz
Transducer maximum depth 3,000 ft.
Transducer number of pins 12-pin
Transducer beamwidth 16°-25°/6°-10°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles       0°-20° degree deadrise
SKU GAR.010-12379-20
Model # 010-12379-20
UPC/EAN 0753759142414
Brand Garmin
Shipping Weight 10.9800kg
