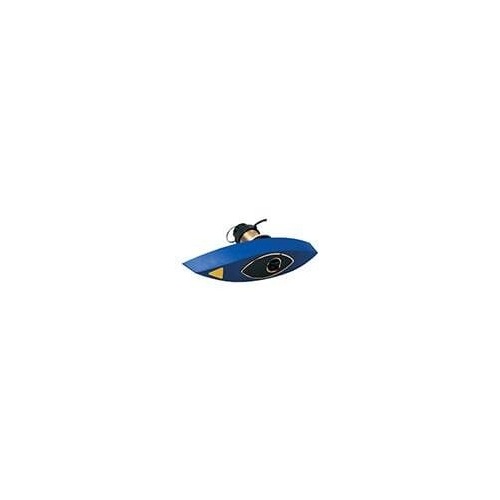

The only thru-hull transducer that offers depth, speed and temperature in one package, this 8-pin 600 W triducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.


Transducer cable length 39 ft.
Transducer power 600 W
Transducer frequency 50/200 kHz
Transducer maximum depth 800-1,200 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/12°
Transducer depth/speed/temperature Depth, Speed and Temperature
Transducer supported deadrise/transom angles      0°-24° degree deadrise
SKU GAR.010-10183-22
Model # 010-10183-22
UPC/EAN 0753759971779
Brand Garmin
Shipping Weight 3.4600kg
