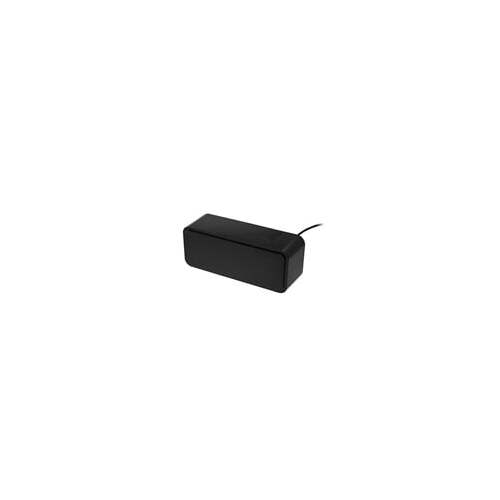

This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.

A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.


Transducer cable length 70 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer power 1 kW/3 kW
Transducer frequency CHIRP Low (28-60 kHz) & CHIRP High Wide (150-250 kHz)
Transducer supported deadrise/transom angles      Installation Dependent
Transducer maximum depth 10,000 ft.
Transducer number of pins Bare wires
Transducer beamwidth 5°x9°-11°x23°/24°-26°
SKU GAR.010-12188-20
Model # 010-12188-20
UPC/EAN 0753759123628
Brand Garmin
Shipping Weight 0.7300kg
