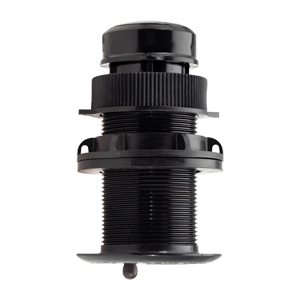

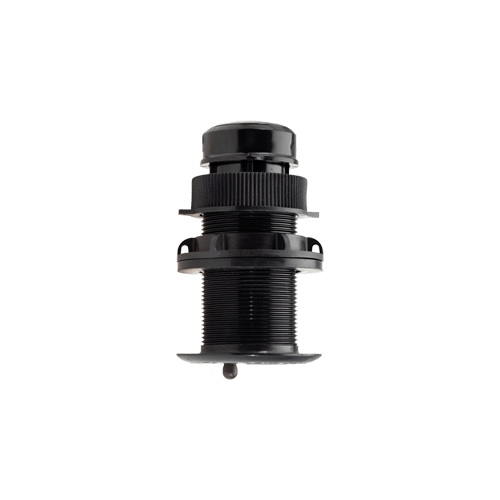

This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless BLUETOOTH® connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast™ app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.


Transducer depth/speed/temperature Depth, Temperature and Speed
Transducer power 100 W
Transducer frequency 235 kHz
Transducer supported deadrise/transom angles       0 to 22 degrees
Transducer maximum depth 330 ft
Transducer number of pins NMEA 2000
Transducer beamwidth 10 x 44 degrees
SKU GAR.010-11051-20
Model # 010-11051-20
UPC/EAN 0753759260989
Brand Garmin
Shipping Weight 1.0200kg
