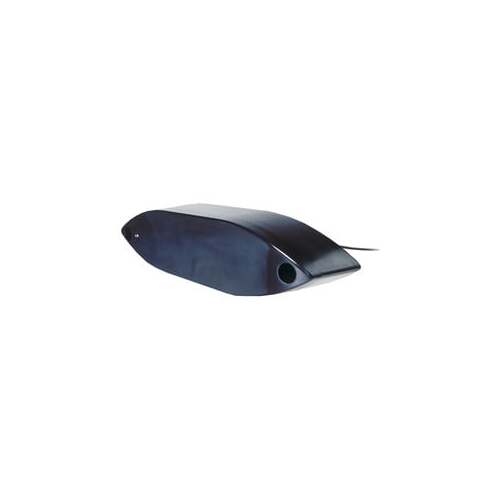

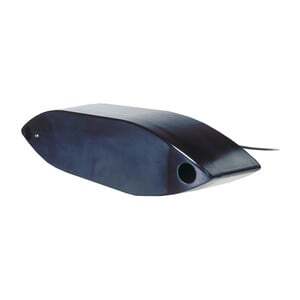

Designed for coastal fishing with an operating frequency range of 38-75 kHz (low frequency) and 80-130 kHz (medium frequency). This CHIRP transducer enables bottom detection down to 10,000’ and resolution so precise it’s possible to distinguish between individual baitfish, game fish and underwater structures. Designed for boat 40’ and above with fiberglass, wood or metal hulls.


Transducer cable length 39 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer power 2kW
Transducer frequency CHIRP Low (38-75 kHz) & CHIRP Mid (80-130 kHz)
Transducer supported deadrise/transom angles      0-25 degrees
Transducer maximum depth 6,000 ft.
Transducer number of pins Bare wires
Transducer beamwidth Low: 10°-5°
Mid: 13°-18°
SKU GAR.010-12809-20
Model # 010-12809-20
UPC/EAN 0753759213039
Brand Garmin
Shipping Weight 21.9000kg
