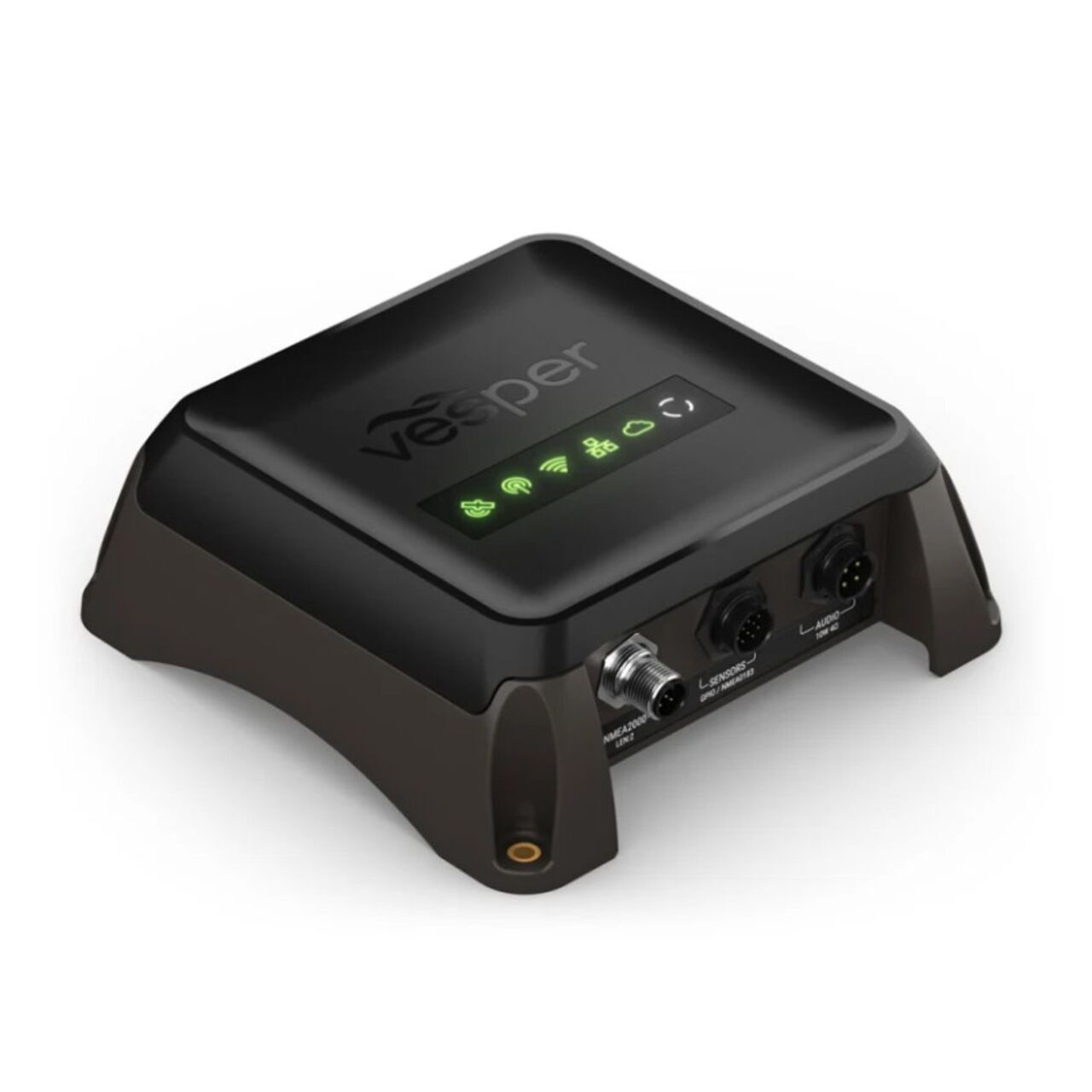

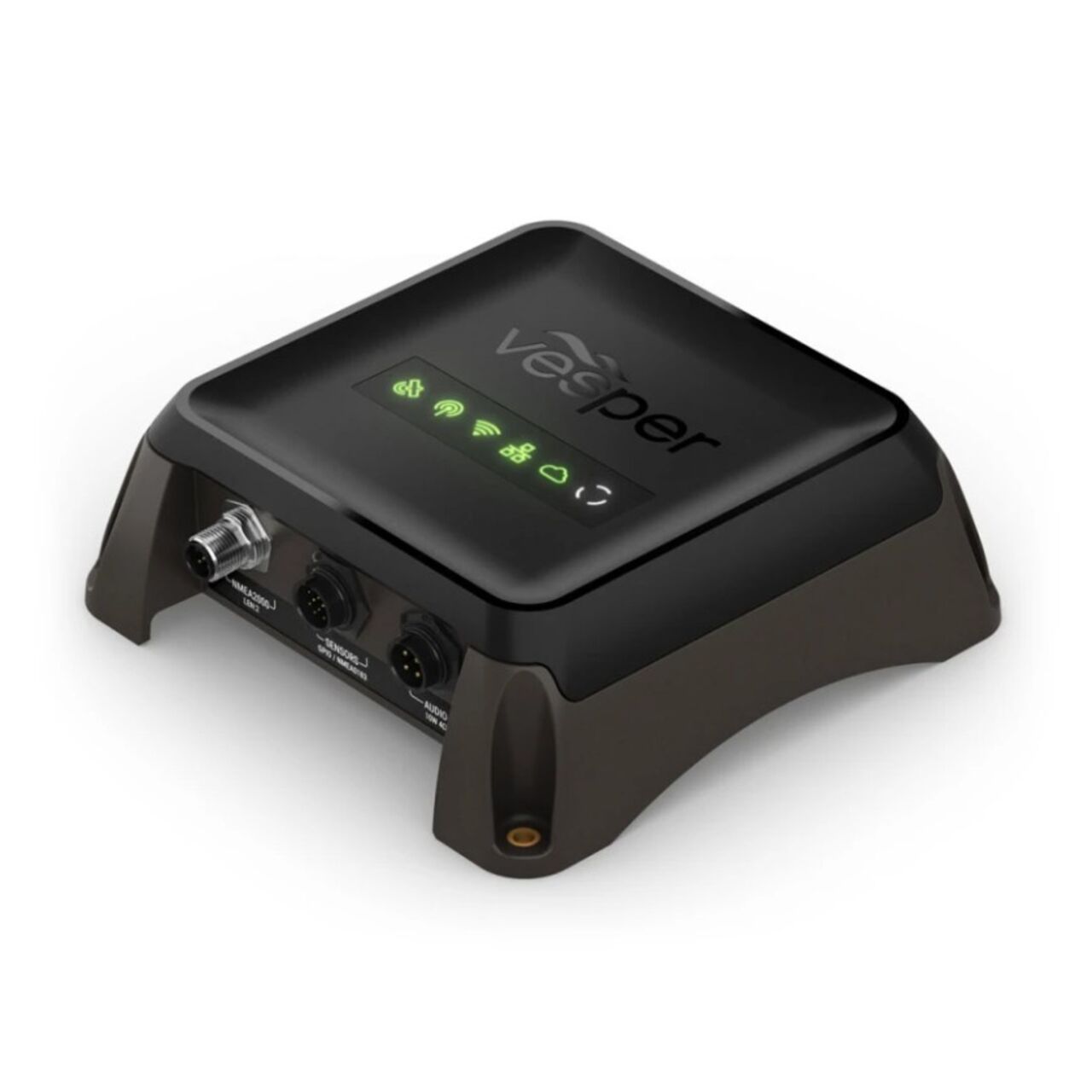

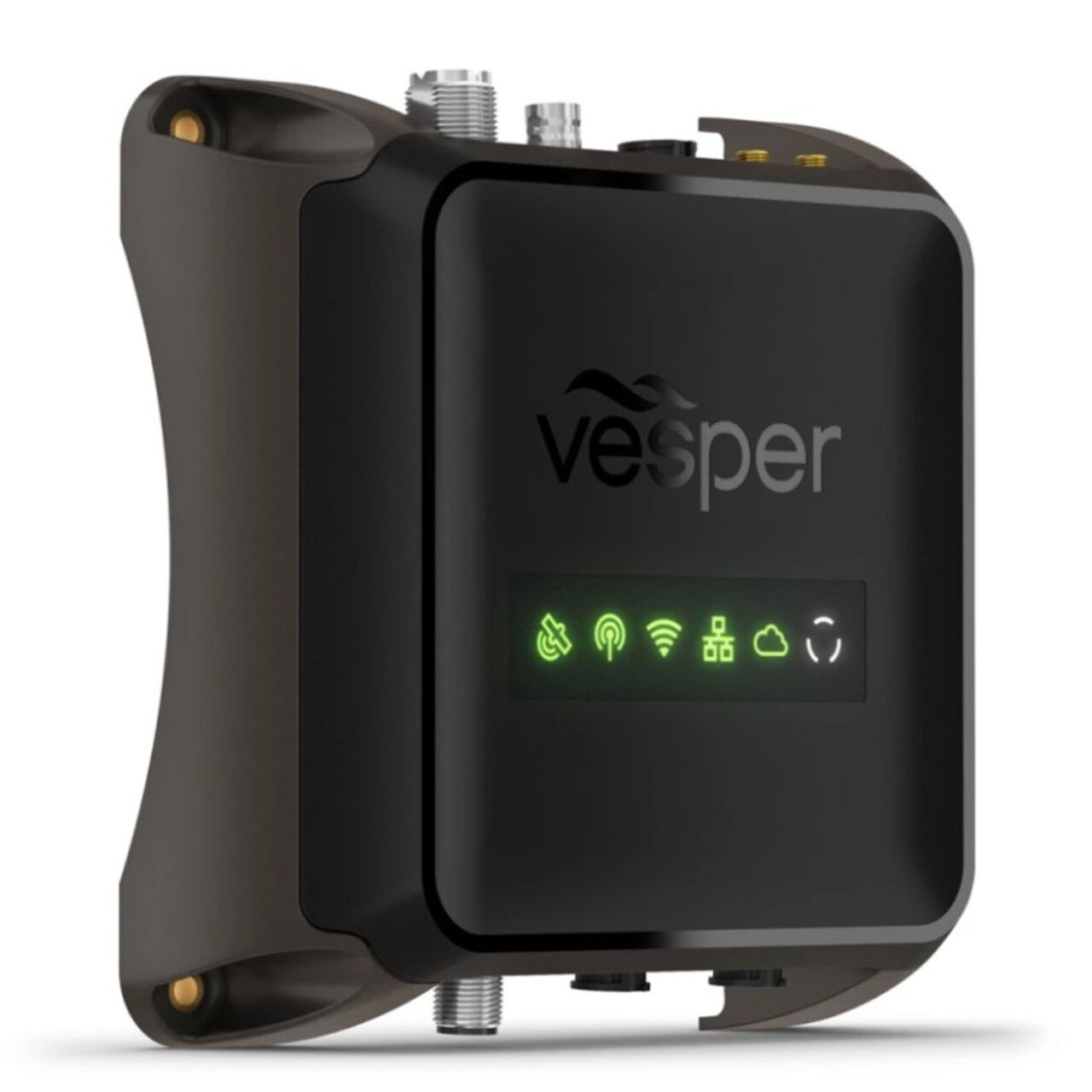

Advanced Vessel Tracking with Integrated Smart System Monitoring

Experience precise AIS transmission and onboard awareness with a compact solution that enhances safety and operational visibility. Designed for mariners who require real-time intelligence both onboard and remotely, this system offers reliable AIS communication and continuous condition monitoring for a seamless boating experience.

Key Features

  • Class B SOTDMA AIS for faster, more frequent updates: Uses Self-Organising Time Division Multiple Access technology to transmit vessel position, speed, and identity at higher rates, maintaining visibility in busy waterways.
  • Real-time tracking of surrounding vessels: Displays other AIS-equipped vessels with contextual awareness, including target plotting, closest point of approach, and collision risk alerts.
  • Onboard system monitoring with configurable sensors: Continuously monitors bilge activity, battery voltage, barometric pressure, heading, and more, alerting you to critical changes before they escalate.
  • Remote connectivity via LTE and Cortex Onboard™ app: Access live vessel data, receive alerts, and check historical logs from anywhere through secure cloud connectivity and a mobile interface.
  • Integrated high-precision GNSS receiver: Supports GPS, GLONASS, Galileo, and BeiDou for enhanced satellite tracking and location accuracy, ideal for dependable navigation.
  • Automatic triggers and alerts for key conditions: Configure thresholds and automation rules to activate alarms or outputs based on sensor input, creating an intelligent safety net for your vessel.

Stay informed and connected with a marine solution that blends AIS functionality with onboard monitoring for confident navigation and oversight.

General
Unit Size M1 Hub: 168 x 168 x 58.7 mm; H1/H1P: 164.8 x 71.8 x 21.4 mm
Weight M1: 770 g; H1: 285 g; H1P: 235 g
Water Rating IPX7
Operating Voltage M1: 9–33V; H1/H1P: 12–24V compatible
Current Draw 12V: 6A max, 700mA nominal
Operating Temperature -25°C to +55°C
VHF Voice
Frequency Range Transmit: 156.025–161.600 MHz; Receive: 156.050–163.275 MHz
Dedicated RX VHF Channels 3
Power Output 25 W (High), 1 W (Low)
Regions Supported U.S., Canada, International
Sensitivity (12 dB SINAD) -116 dBm
Adjacent Channel Selectivity 80 dB
Spurious Response 70 dB
Intermodulation 70 dB
Spurious Emissions < -80 dBc
Max Audio Output Power 10 W, <1% THD
Max Antenna Gain 6 dBi
Class D DSC
Class Class D
Dedicated RX DSC Channels 1
Sensitivity (1% BER) -113 dBm
Adjacent Channel Selectivity 80 dB
Intermodulation 70 dB
AIS
Class SOTDMA Class B
Dedicated RX AIS Channels 2
Frequency Range 156.025–162.025 MHz
Power Output 5 W
Sensitivity (20% PER) -113 dBm
Adjacent Channel Selectivity 80 dB
Intermodulation 67 dB
GNSS
Sensitivity -167 dBm
Constellations GPS, GLONASS, BeiDou, Galileo
Channels 72
Differential Support SBAS, WAAS, EGNOS
Navigation Rate 10 Hz
Connector SMA
Certifications IEC 61108
Features Anti-jamming, Anti-spoofing
Networking
NMEA 2000® Gateway 1 isolated micro-C male port, PGN output and translations
NMEA 2000® LEN 2
NMEA 0183 1 isolated port, 4800/38400 baud, bidirectional
Wireless Security WPA2 Personal
Cloud Connectivity LTE-Cat1 with 3G fallback, integrated SIM and antenna
Control Outputs 2; low side driven (max 150mA)
Sensors
Heading 9-axis, ±10°, 10 Hz
Barometer 1 Hz update (averaged)
Battery Voltage Measured at power input
External Sensor Inputs 5; digital (0–24V), analog (0–17V)
Audio
Supported Functions VHF RX, Alarms
Amplifier M1: 10W; H1/H1P: 3W
External Speaker 10W, 4 ohm
External Loudspeaker 30W, 4 ohm
Display
Screen LCD TFT Si, ::contentReference[oaicite:2]{index=2}
SKU GAR.010-02815-20
Model # 010-02815-20
UPC/EAN 753759306816
Brand Garmin
Shipping Weight 3.0000kg
Unit Of Measure ea
