Advanced Safety Communication System Built for Marine Environments

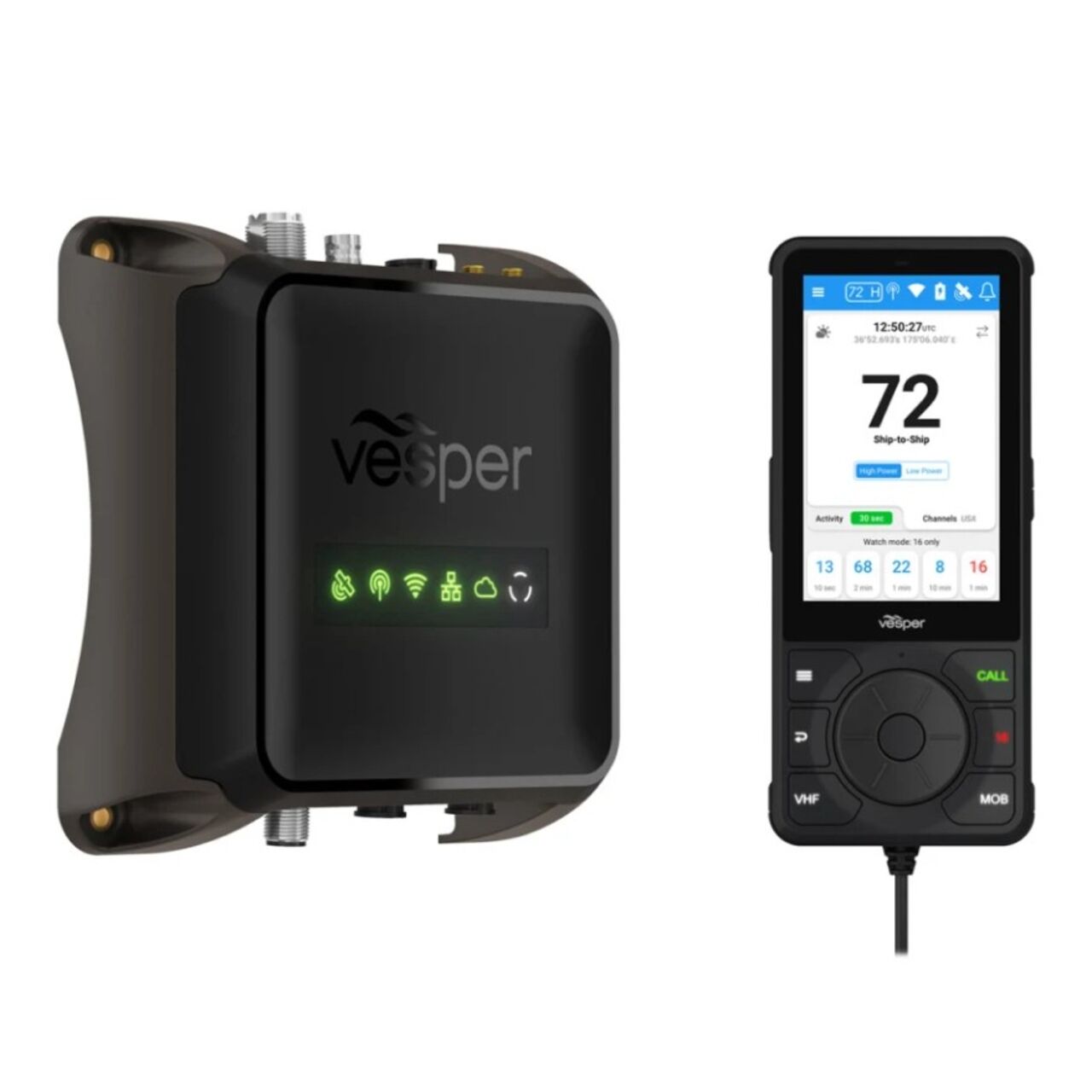

Enhance situational awareness and communication at sea with a high-performance marine system designed for modern vessels. This compact unit seamlessly combines a VHF radio, Class B SOTDMA AIS transponder, and smart voice features into one streamlined interface. Built for durability and connectivity, it supports both traditional and touchscreen handsets, giving you control wherever you are onboard.

Key Features

  • Integrated VHF and Class B SOTDMA AIS functionality: Combines a full-function VHF radio with a fast, accurate Class B SOTDMA AIS transponder for improved tracking and collision avoidance.
  • Dual-watch with smartAIS safety alerts: Monitors multiple channels simultaneously and issues alerts for collision risks, man overboard, and anchor drag scenarios.
  • Wireless and wired handset compatibility: Connect up to five wired or wireless handsets for flexible communication throughout the vessel.
  • Built-in remote monitoring features: Stay informed with remote vessel status updates including battery level, bilge activity, and position tracking via the Onboard app.
  • Expandable with Cortex M1 hub: Add advanced features such as boat monitoring and control via NMEA 2000 integration and external sensors.
  • Flexible installation options: Compact, rugged design supports discreet mounting and efficient integration into existing helm layouts.

Confidently navigate, communicate, and monitor onboard systems with an intelligent solution designed for today’s connected marine experience.

General

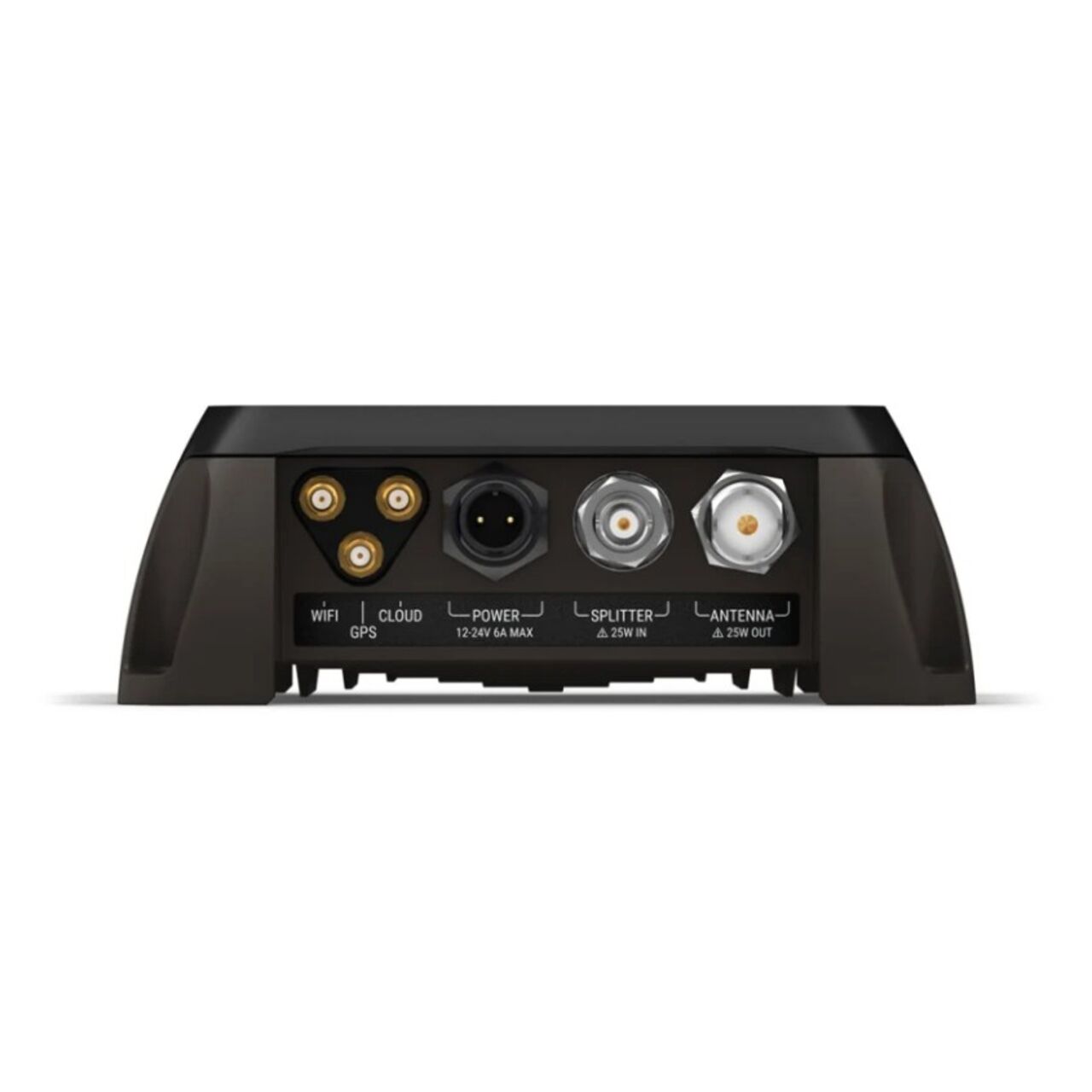

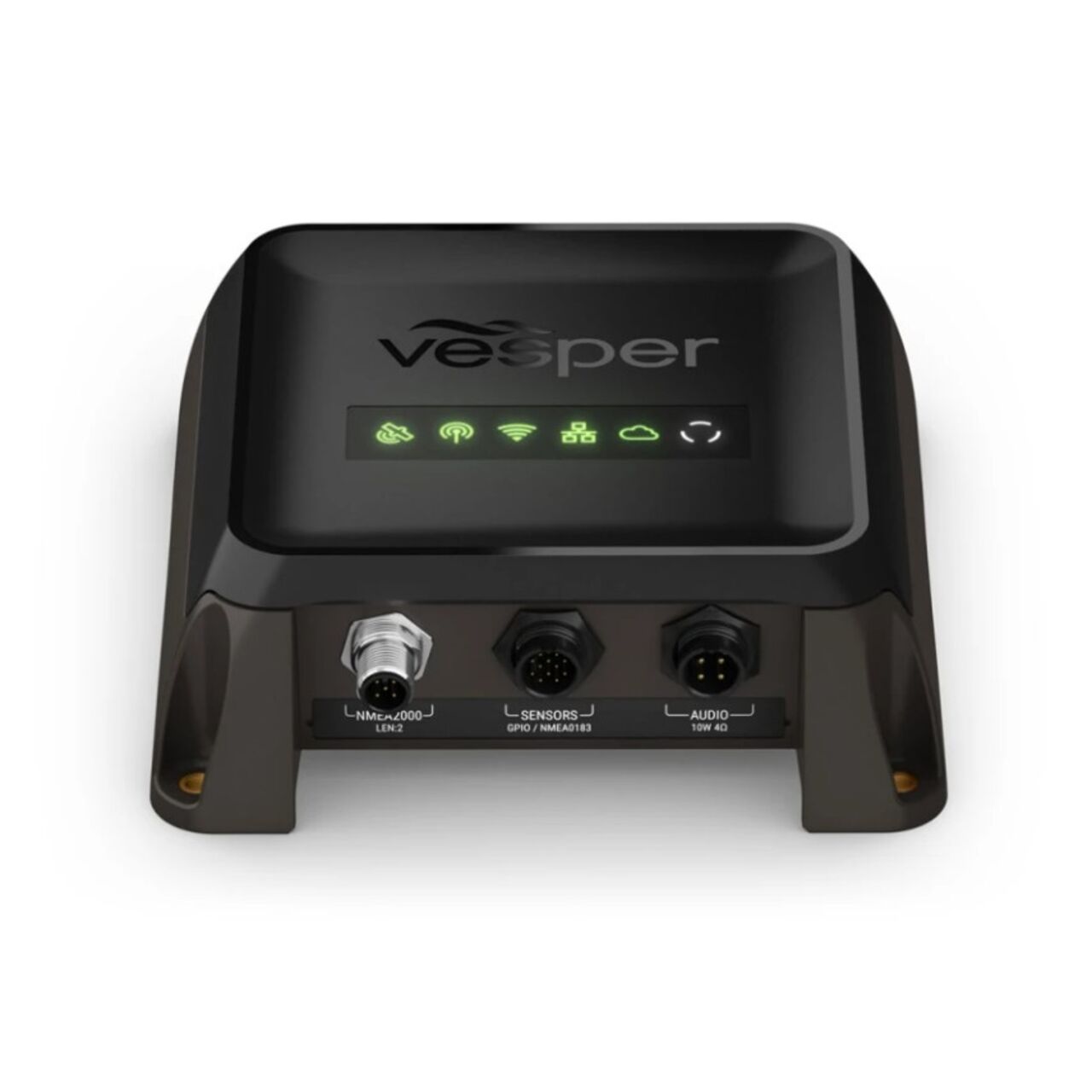

Unit Size M1 Hub: 168 x 168 x 58.7 mm, H1/H1P: 164.8 x 71.8 x 21.4 mm
Weight M1: 770 g, H1: 285 g, H1P: 235 g
Water Rating IPX7
Operating Voltage M1: 9–33V, H1/H1P: 12–24V compatible
Current Draw 12V: 6A max, 700mA nominal
Operating Temperature -25°C to +55°C
VHF Voice
Frequency Range Transmit: 156.025–161.600 MHz, Receive: 156.050–163.275 MHz
Dedicated RX VHF Channels 3
Power Output 25 W (High), 1 W (Low)
Regions Supported U.S., Canada, International
Sensitivity (12 dB SINAD) -116 dBm
Adjacent Channel Selectivity 80 dB
Spurious Response 70 dB
Intermodulation 70 dB
Spurious Emissions < -80 dBc
Max Audio Output Power 10 W, <1% THD
Max Antenna Gain 6 dBi
Class D DSC
Class Class D
Dedicated RX DSC Channels 1
Sensitivity (1% BER) -113 dBm
Adjacent Channel Selectivity 80 dB
Intermodulation 70 dB
AIS
Class SOTDMA Class B
Dedicated RX AIS Channels 2
Frequency Range 156.025–162.025 MHz
Power Output 5 W
Sensitivity (20% PER) -113 dBm
Adjacent Channel Selectivity 80 dB
Intermodulation 67 dB
GNSS
Sensitivity -167 dBm
Constellations GPS, GLONASS, BeiDou, Galileo
Channels 72
Differential Support SBAS, WAAS, EGNOS
Navigation Rate 10 Hz
Connector SMA
Certifications IEC 61108
Features Anti-jamming, Anti-spoofing
Networking
NMEA 2000® Gateway 1 isolated micro-C male port, PGN output and translations
NMEA 2000® LEN 2
NMEA 0183 1 isolated port, 4800/38400 baud, bidirectional
Wireless Security WPA2 Personal
Cloud Connectivity LTE-Cat1 with 3G fallback, integrated SIM and antenna
Control Outputs 2; low side driven (max 150mA)
Sensors
Heading 9-axis, ±10°, 10 Hz
Barometer 1 Hz update (averaged)
Battery Voltage Measured at power input
External Sensor Inputs 5; digital (0–24V), analog (0–17V)
Audio
Supported Functions VHF RX, Alarms
Amplifier M1: 10W, H1/H1P: 3W
External Speaker 10W, 4 ohm
External Loudspeaker 30W, 4 ohm
Display
Screen LCD TFT Si, 640 x 800, 24-bit colour
Touch Capacitive, glove and saltwater operable
Backlight 600 cd/m², auto-dimming
Cable Length 2 m
Channel 16 Shortcut Yes
SKU GAR.010-02814-20
Model # 010-02814-20
UPC/EAN 753759306793
Brand Garmin
Shipping Weight 3.0000kg
Unit Of Measure ea
