If you are looking for a powerful and versatile chartplotter/sonar combo for your fishing adventures, you might want to check out the Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv. This device has a large, bright, and user-friendly touchscreen display that lets you see everything clearly, even in direct sunlight. You can also customize the screen with your preferred widgets and data fields.

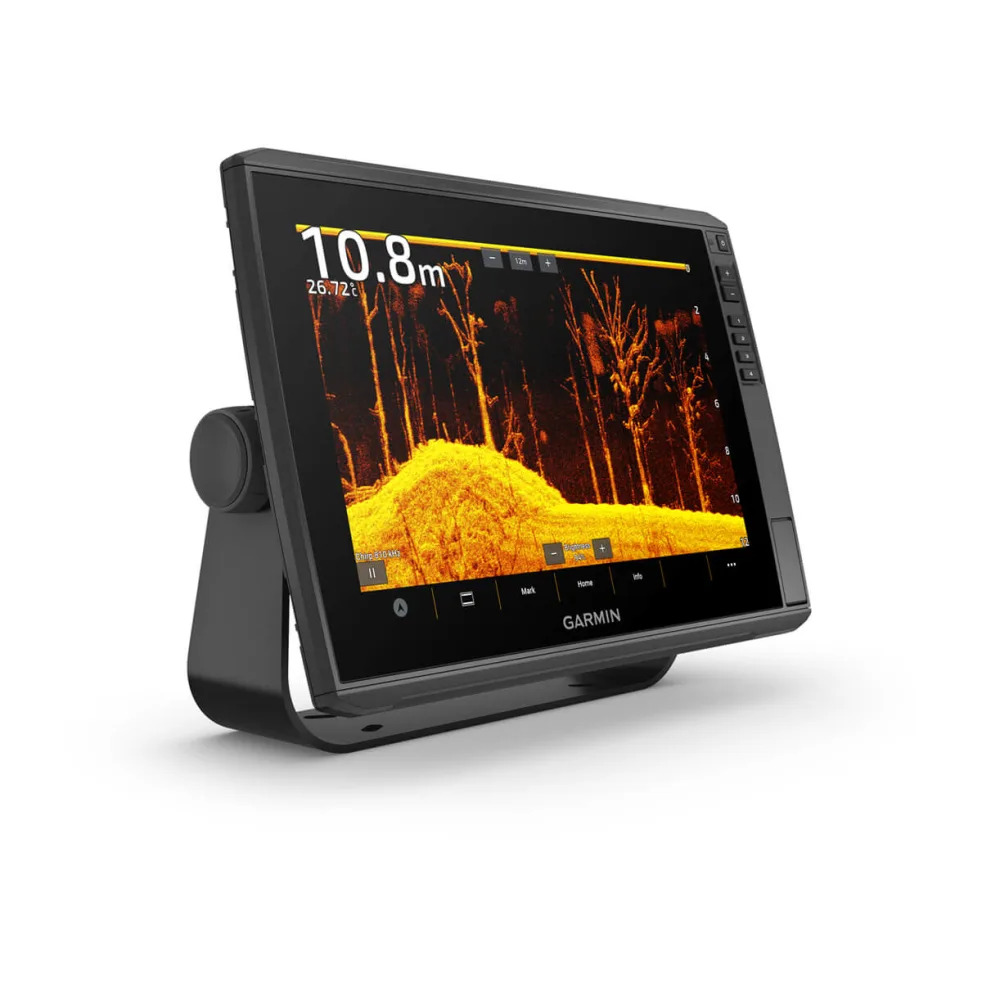

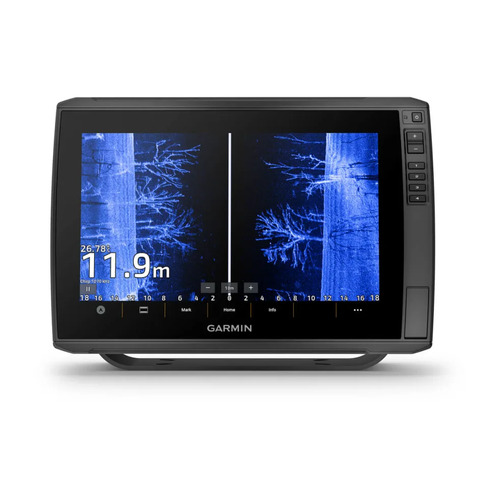

The Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv comes with a GT56UHD-TM transducer that delivers stunning images of the underwater world. You can enjoy three types of sonar: CHIRP traditional, ClearVü, and SideVü scanning sonars. These sonars provide high-resolution and photo-like views of fish, structure, and bottom contours. You can also choose from different vivid colour palettes to enhance the contrast and visibility of the sonar images.

The Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv also comes with built-in Garmin Navionics+ mapping for Australia and New Zealand, which includes a 1-year subscription for daily updates. You can access detailed charts and maps that cover coastal and inland waters, as well as depth range shading, satellite imagery, and more. You can also upgrade to Garmin Navionics Vision+ premium mapping (sold separately) for even more features and details.

The Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv is compatible with a range of accessories and devices that can enhance your fishing experience. You can connect to LiveScope live-scanning sonar products (sold separately) to see real-time movements of fish and structure. You can also connect to heading sensors, autopilots, Fusion-Link audio systems, and more via the NMEA 2000 network. You can even wirelessly connect to your Force trolling motor (sold separately) to navigate to waypoints, draw and follow routes, and more.

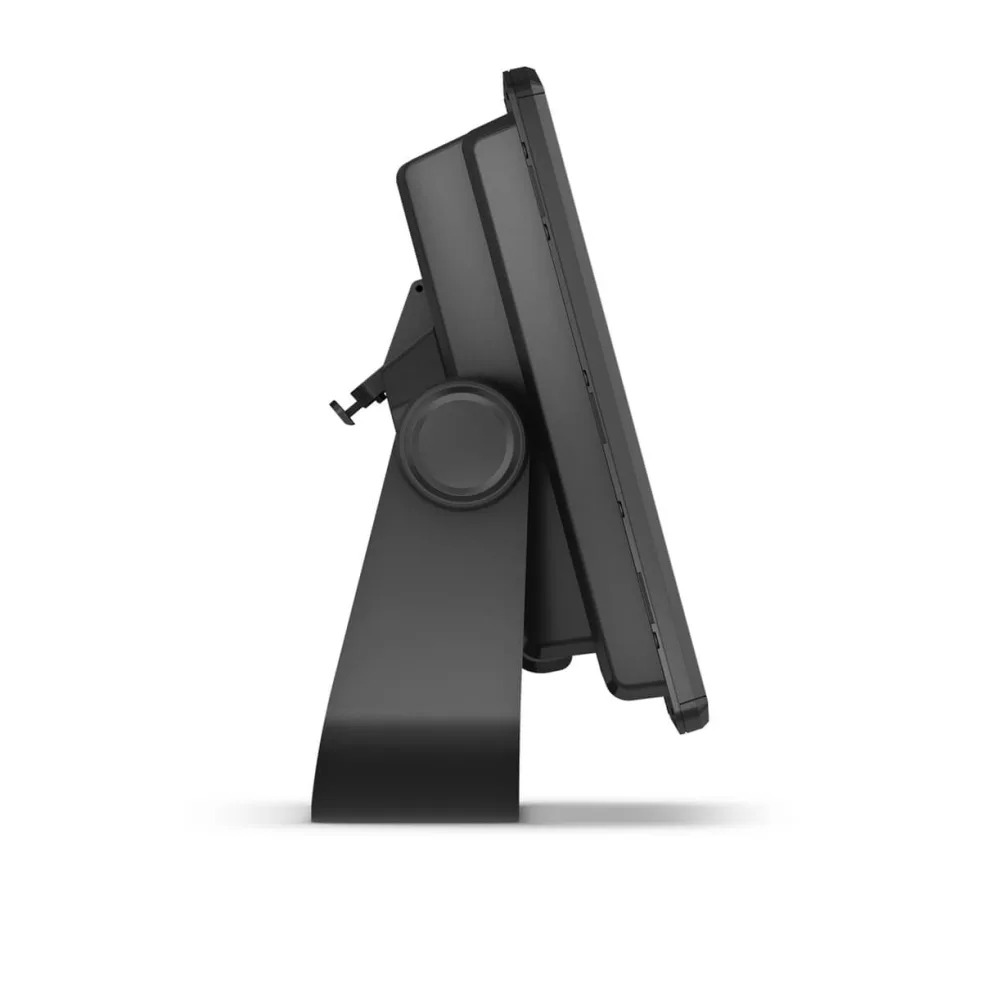

The Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv is easy to install and remove with the quick-disconnect bail mount. You can also pair it with the free ActiveCaptain app on your compatible smartphone to access software updates, screen recording, Garmin Quickdraw Community data, and more.

The Garmin ECHOMAP Ultra 2 12" Chartplotters 125sv is a great choice for anglers who want a high-performance and feature-rich chartplotter/sonar combo that can help them find and catch more fish.


Dimension 34.1 x 22.9 x 9.8 cm (13.4″ x 9″ x 3.9″)
Weight 2.5 kg (5.5 lbs)
Waterproof IPX7
Touchscreen Yes
Display Type WXGA, IPS
Display Size 26.1 x 16.3 cm; 30.7 cm diagonal (10.3″ x 6.4″; 12.1″ diagonal)
Display Resolution 1280 x 800 pixels
Mounting Options Bail or flush
Input Touchscreen with Keyed Assist

Maps & memory

Accepts Data Cards 2 microSD Cards
Waypoints 5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100


Galileo Yes
BeiDou Yes
Has built-in receiver Yes
Receiver 10 Hz
NMEA 2000® compatible Yes
NMEA 0183 Compatible Yes
Supports WAAS Yes
Supports multi-band, multi-constellation GPS Yes

Built-in maps

Built-in Auto Guidance+ Yes
Garmin Navionics+ Inland & Coastal (Yessee Additional)
Tide tables (Yessee Additional)

Optional map support

BlueChart g3 Yes
BlueChart g3 Vision Yes
Garmin Navionics+™ Yes
Garmin Navionics Vision+™ Yes
TOPO 100K Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes

Chartplotter features

Supports Fusion-Link™ compatible radios Yes
ActiveCaptain Mobile Planning Compatible Yes
Sailing features Yes

Electrical features

Power Input 9 to 18 Vdc
Typical current draw at 12 Vdc 2.5 A
Maximum current draw at 12 Vdc 5 A
Maximum power usage at 10 Vdc 36 W

Sonar features & specifications

Displays sonar Yes
Power output 600 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar Yes
LiveScope Yes


NMEA 2000® ports 1

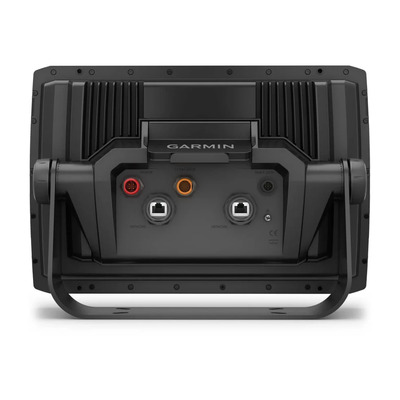

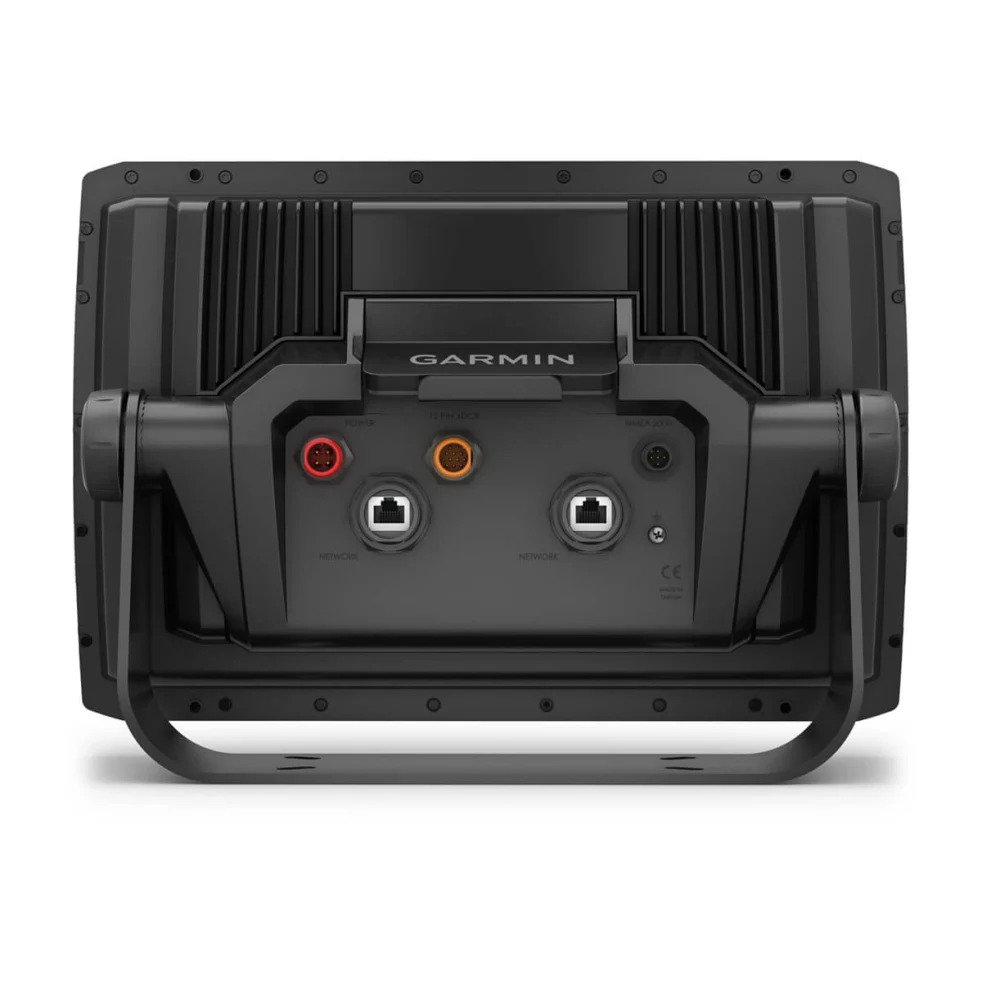

Garmin Marine Network Ports 2 (large connector)
12-pin transducer ports 12-pin scanning sonar
ANT+ (Connectivity) Yes
Garmin Wi-Fi network (local connection) Yes
SKU GAR.010-02881-20
Model # 010-02682-20
UPC/EAN 753759325558
Brand Garmin
Shipping Weight 2.5000kg
Shipping Width 0.341m
Shipping Height 0.098m
Shipping Length 0.229m
Shipping Cubic 0.007652722m3
