Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter

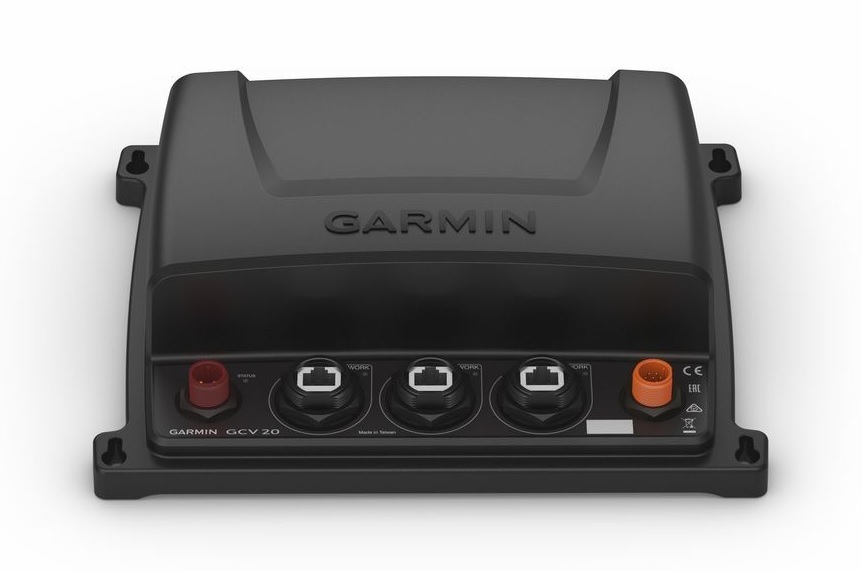

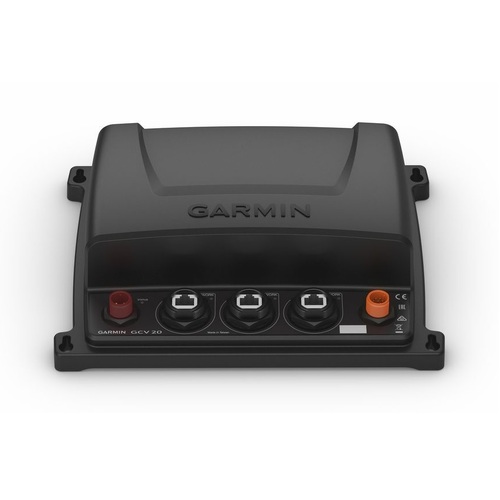

The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix™ all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearVü Scanning

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Physical & Performance

Dimension 9.9"×7.6"×2.6" (251 mm × 192 mm × 66 mm)
Waterproof     IPX7
Weight

1.86 lbs (845 g)



Features

Fuse 4.0 A
Transmit power 500 W rms
Connections Garmin Marine Network Ports

3

Power Input 10-35 V
Power usage 10.5 W maximum
MaxDepth

200' Ultra High-Definition ClearVü

125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30'

Ultra High-Definition ClearVü Yes
Frequency

Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz

Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,020-1,230 kHz

Ultra High-Definition SideVü Yes
Compass safe distance 10.2 in. (26 cm)
Temperature range From 5°F to 158°F (from -15°C to 70°C)
SKU GAR.010-02055-10
Model # 010-02055-10
UPC/EAN 0753759206321
Brand Garmin
Shipping Weight 1.6400kg
