See what’s coming.

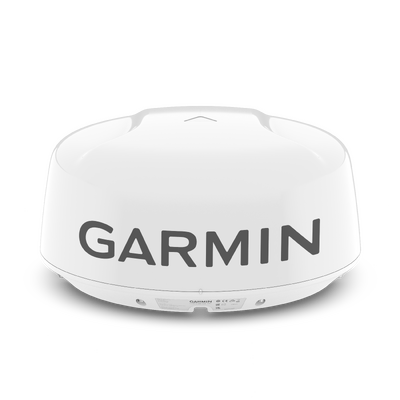

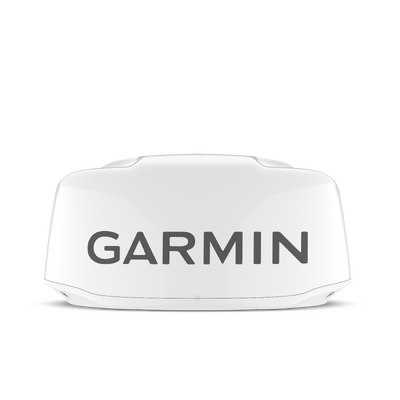

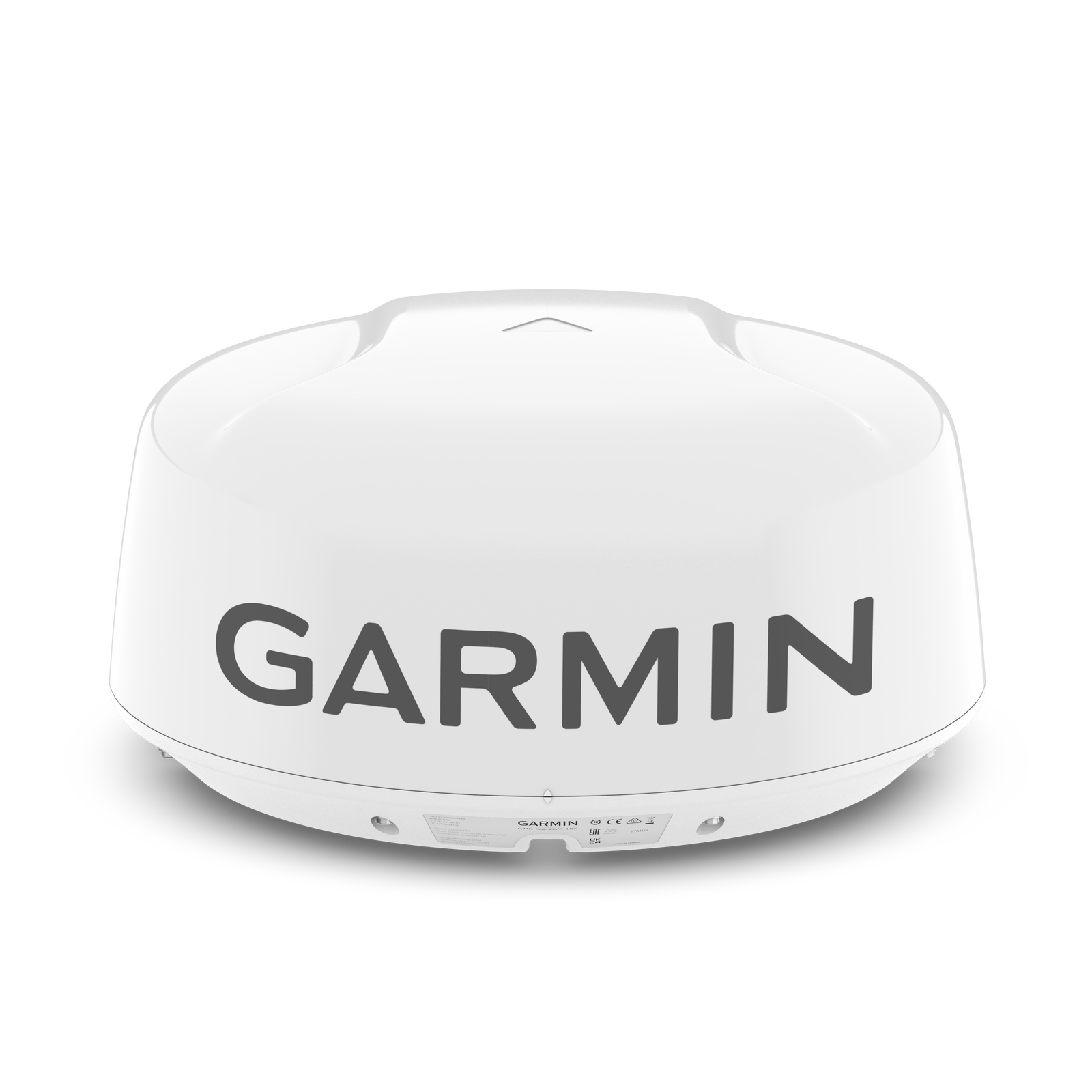

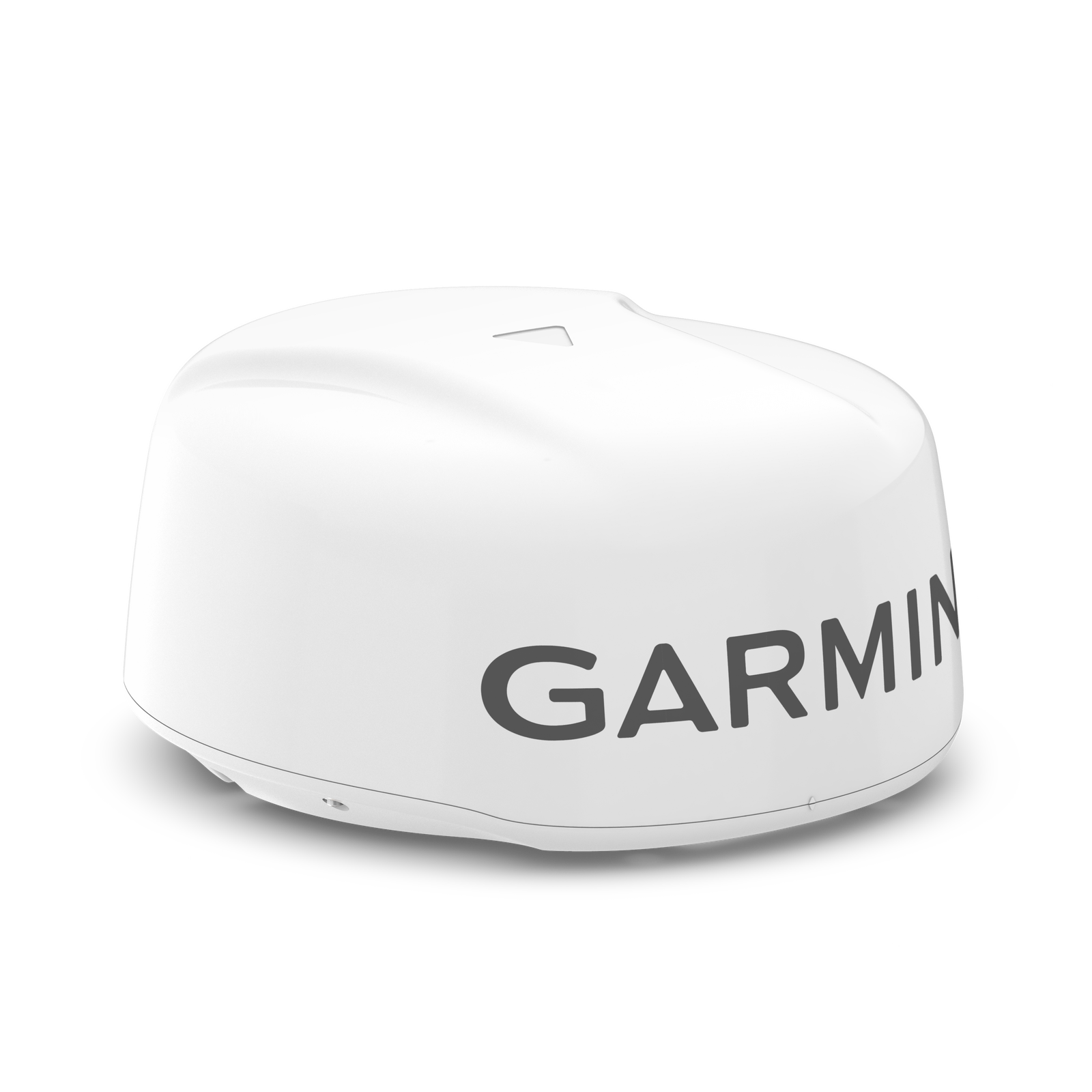

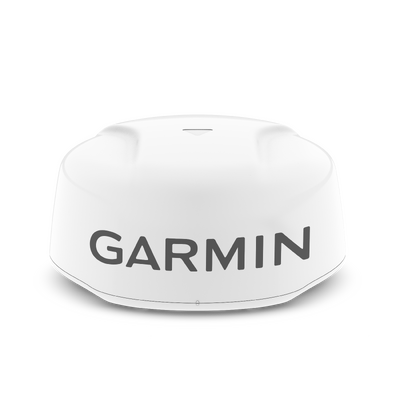

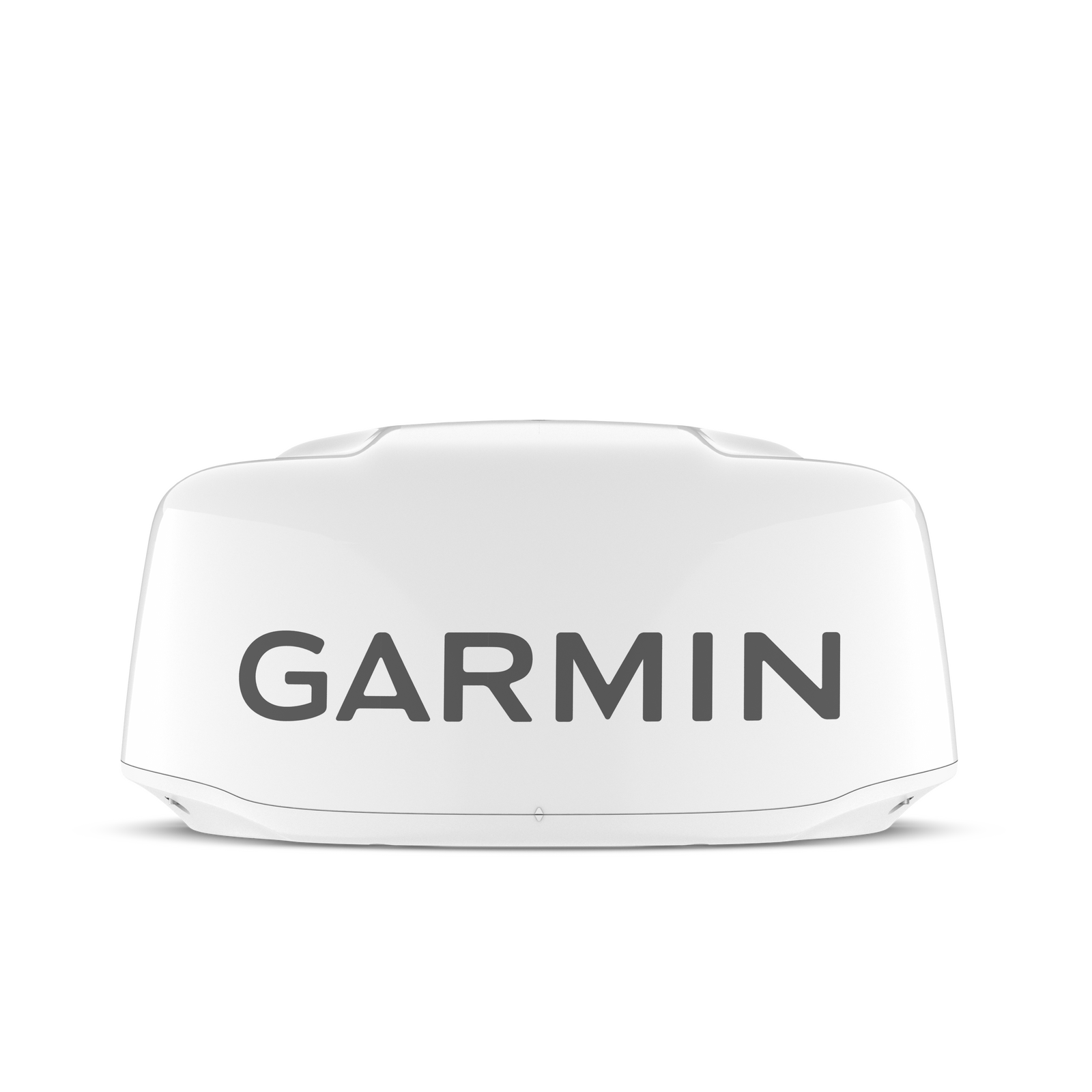

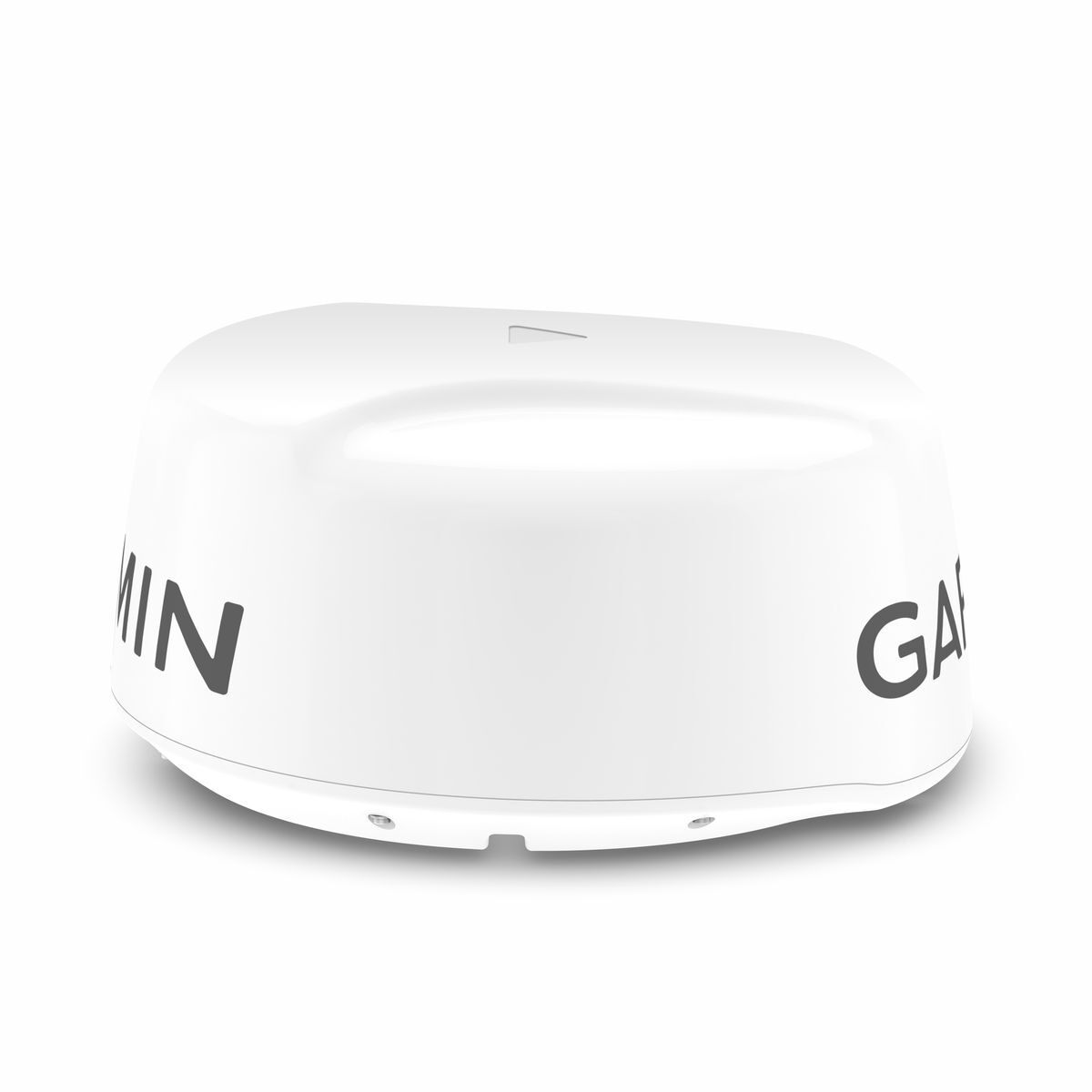

HIGH-POWERED RADAR

These 50-watt solid-state dome radars have a range from 20’ to 48 nautical miles, even in fog or rain. Plus, they deliver up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed. This time around, we even have a white and black option so you can tailor to your boat.

HIGH-RESOLUTION RADAR

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true colour imagery enhances target separation.

MOTIONSCOPE TECHNOLOGY

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colours, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

POWER SAVE MODE

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t.

TIMED TRANSMIT MODE

With timed transmit mode, you can even specify active and inactive times down to the second to help reduce power consumption, so you can stay on the water longer than ever.

INTUITIVE OPERATION

These radars don’t have any complex user settings to deal with, so they’re easy to install and start using.

See incredible detail on the water.

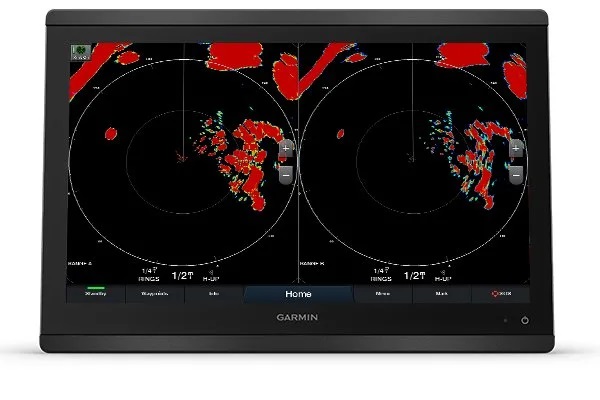

TARGET SIZE

Adjust on-screen target resolution for better separation based on your surroundings.

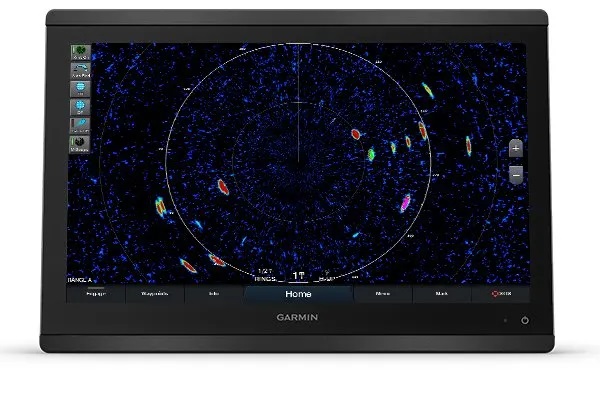

AUTO BIRD GAIN

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

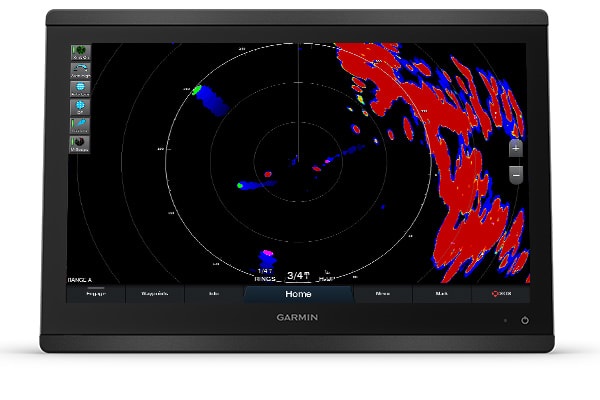

ECHO TRAILS

See a historical ″trail″ on the screen to help you quickly and easily identify moving targets and potential collision threats.

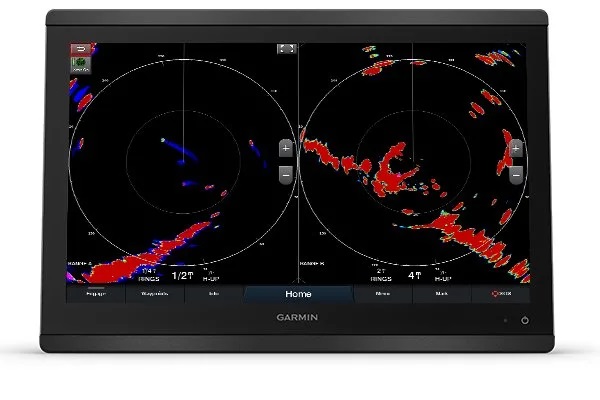

DUAL RANGE

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

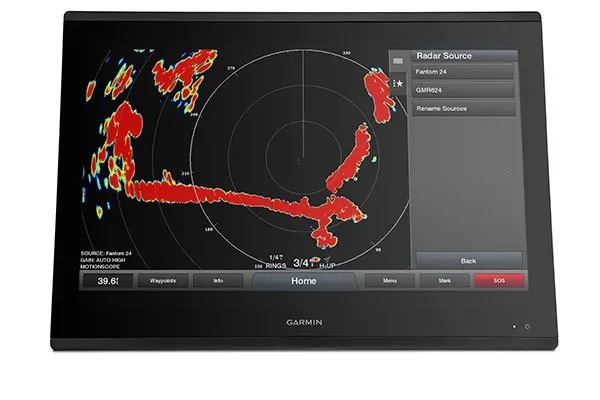

DUAL-RADAR SUPPORT

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

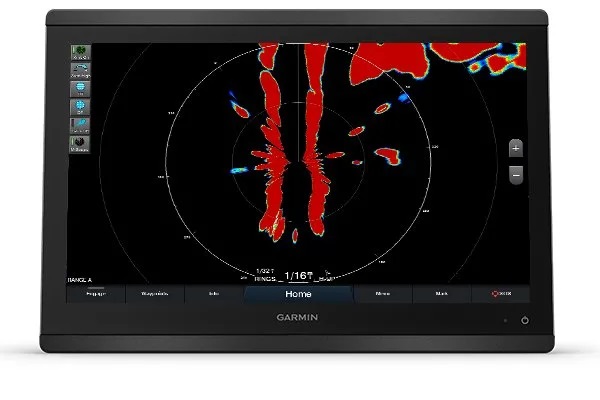

DYNAMIC AUTO GAIN

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

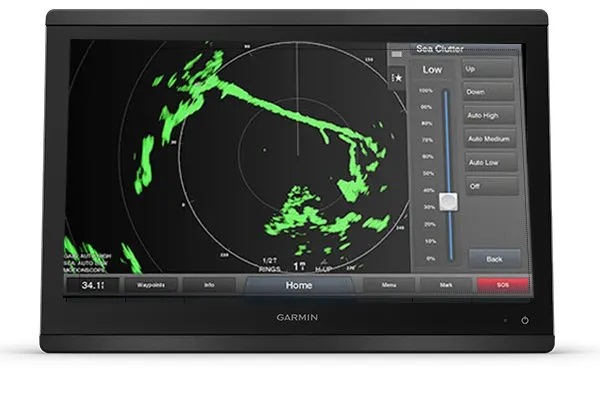

DYNAMIC SEA FILTER

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

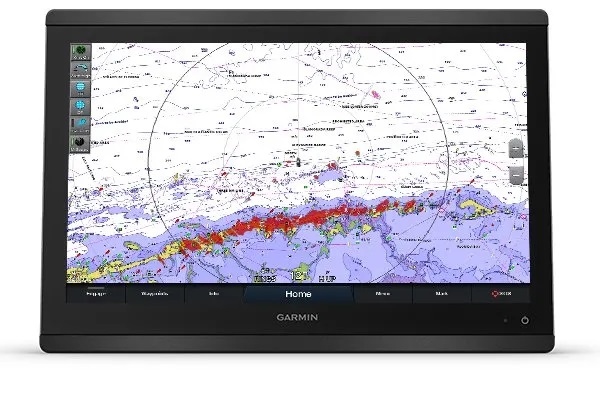

RADAR OVERLAY

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

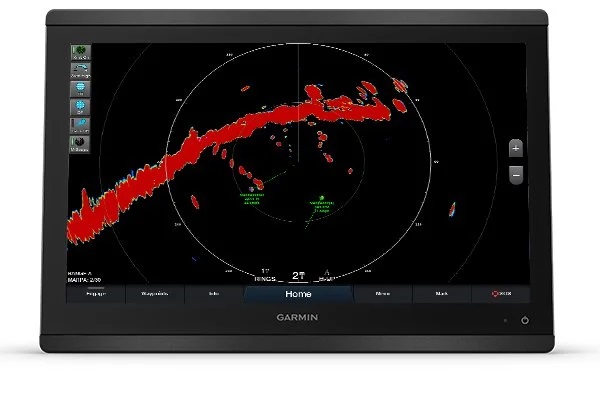

AUTOMATIC ACQUISITION

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

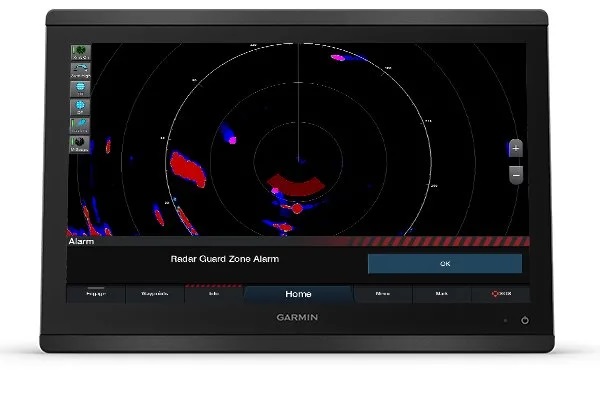

GUARD ZONE

Set the safety zone and receive an alarm when an object enters the zone.

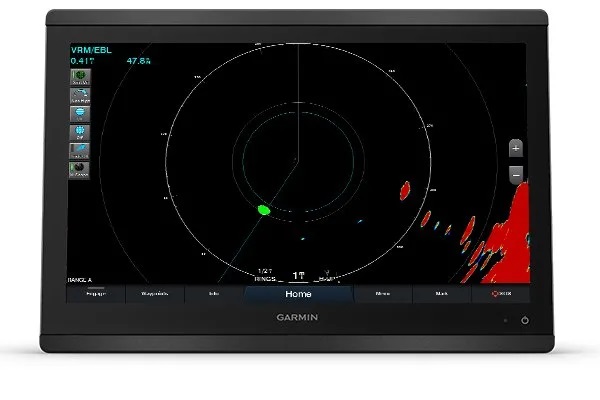

VRM AND EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.





Physical & Performance

Max Range 48 NM
Radar Type Radome
Dimension 18x: 20″ x 9.80″ (50.80 x 24.90 cm)
24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm)
Transition Power 50 W
Beam Width 18x: 5.20° horizontal, 25° vertical
24x: 3.70° horizontal, 25° vertical
Power Input 10-32 V DC
Antenna Length 18x: 17″ (43.18 cm)
24x: 23″ (58.42 cm)
Rotation speed (RPM)      Up to 60 rpm, depending on settings
Minimum range 6 metres
Waterproof IPX7
Weight 18x: 14.0 lbs
24x: 17.40 lbs



Features

Dual Range Support Yes
Dynamic Auto Gain Dynamic
Echo Trail Yes
Max power consumption transmitting (power save) 24 W
Radar Overlay Support Yes
Dual Radar Yes
MotionScope Yes
AutoBird Yes
Power Consumption 4 W
MARPA Target Track yes (requires heading sensor, sold separately)
Max power consumption transmitting (normal mode)      33 W
Scan Yes
Target Size Yes
SKU GAR.010-02584-00
Model # 010-02584-00
UPC/EAN 0753759282219
Brand Garmin
Shipping Weight 12.7700kg
