See what’s coming.

HIGH-POWERED RADAR

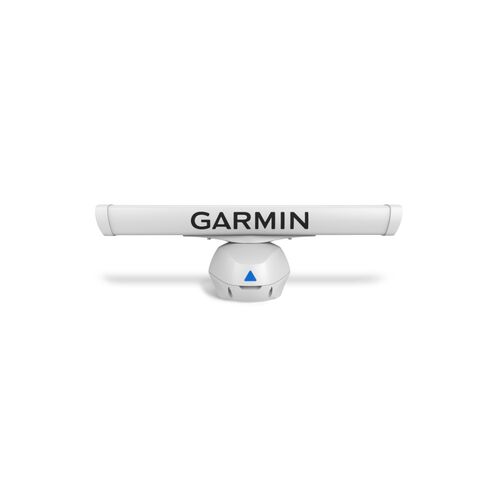

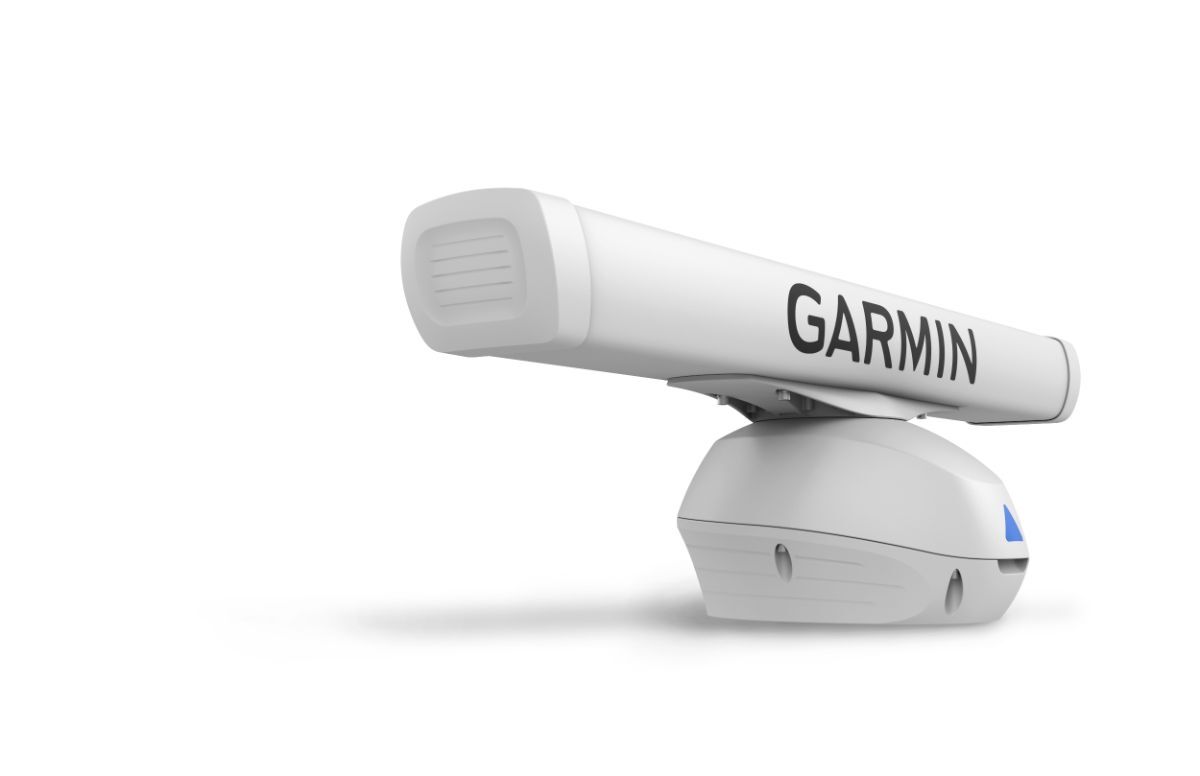

This 50-watt radar has a range from 6 metres to 72 nautical miles (133 KM), even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

HIGH-RESOLUTION RADAR

The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.

MOTIONSCOPE TECHNOLOGY

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colours so you can navigate around other boats or severe weather — or towards fishing spots where birds feed at the surface.

INTUITIVE OPERATION

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.









See incredible detail on the water.

TARGET SIZE

Adjust the size of objects on the radar image.

AUTO BIRD GAIN

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

ECHO TRAILS

A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.

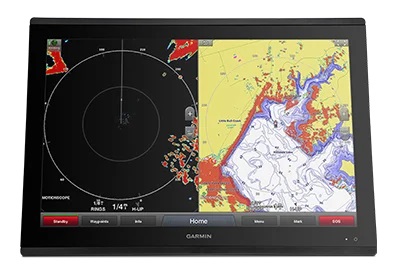

DUAL RANGE

Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.

DUAL-RADAR SUPPORT

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

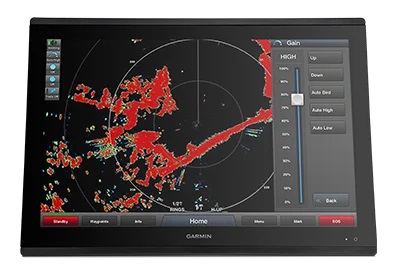

DYNAMIC AUTO GAIN

Gain automatically adjusts levels to optimum settings for harbours, nearshore and offshore in open waters.

DYNAMIC SEA FILTER

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

RADAR OVERLAY

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

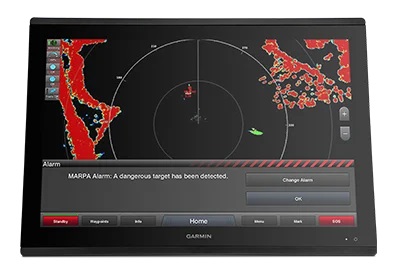

MARPA TARGET TRACKING

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

GUARD ZONE

Set the safety zone, and receive an alarm when an object enters the zone.

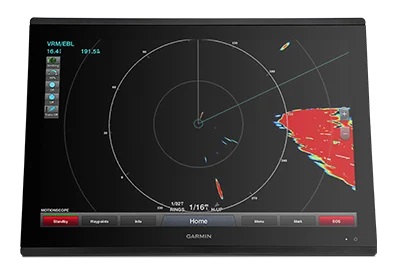

VRM AND EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.





Physical & Performance

Max Range 72 nm
Radar Type Open-Array
Dimension

Pedestal: 16.6" x 14.3" x 10.7" Pedestal: 42.1 x 36.4 x 27.1 cmFull assembly: 15.9" height x 51.8" diameter Full assembly: 40.3 cm height x 131.4 cm diameter

Transition Power 50 W
Power Consumption 65 W
Beam Width 1.8° horizontal, 23° vertical
Power Input 10-32 V DC
Antenna Length 48" (121.92 cm)
Rotation speed (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
Minimum range 6 meters
Waterproof IPX6
Weight

Array: 11.4 lb (5.2 kg)
Pedestal: 34.7 lb (15.7 kg)



Features

Dual Range Support Yes
Dynamic Auto Gain Dynamic
Echo Trail Yes
Radar Overlay Support Yes
Max Power Consumptionumption      170 W
Dual Radar Yes
MotionScope Yes
Max Wind Load 80kt
Programmable Antenna Parking Yes
AutoBird Yes
MARPA Target Track Yes (Requires Heading Sensor, Sold Separately)
Scan Yes
Target Size Yes
SKU GAR.K10-00012-17
Model # K10-00012-17
UPC/EAN 0753759189860
Brand Garmin
Shipping Weight 31.8200kg
