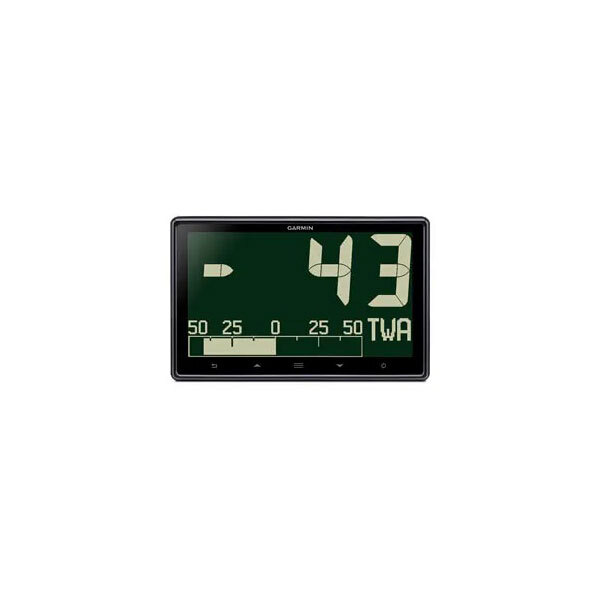

Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded 7-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.

Superior Readability

Enjoy superior readability in all conditions, day and night¹. Options for white or color 2-inch (51 mm) digits — the largest in class — allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 120 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.

Customize Your Profile

Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions. Display data from Expedition software on the instrument using a Actisence NGT-1 N2K USB or GND 10 (not required). Adrena and SmartSkipper information can also be displayed using the GND 10.

¹Color backlight is not visible in daylight.

Physical & Performance

Display Size 150 x 83 mm (6'' x 3.27'')
Dimension 181 x 115 x 17 mm (7.12'' x 4.53'' x .67'')
Voltage range 9-16 V (from NMEA 2000)
Waterproof IPX7
Weight 380 g (13.4 oz)
Mounting Options     Flush
Display Type Inverted LCD, monochrome



Features

NMEA 0183 Compatible No
Auto-on Yes
Temperature range From 5° to 158°F (from -15° to 70°C)
Misc

Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)

Glass bonded display   Yes
User Profiles Yes
NMEA 2000® certified Yes
Power Consumption

0.36 W (day); 0.4 W (night)

SKU GAR.010-01395-00
Model # 010-01395-00
UPC/EAN 0753759127053
Brand Garmin
Shipping Weight 0.9100kg
