It's Easy to See the Data You Need

If you own a 20- to 40-foot sailboat with no wind system or an older wind system onboard, then GNX Wind marine instrument is an excellent choice to provide the accurate, reliable data you need to make confident decisions.

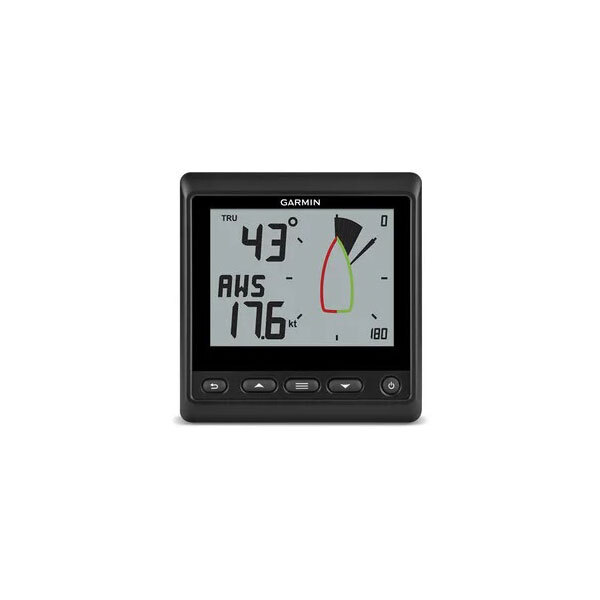

GNX Wind features a high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors making it easy to see from nearly any angle at a distance. Background colors can be customized to nearly any color preference to provide the contrast and visibility that work best in any lighting condition. It interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, Steer Pilot, boat speed and more. Auto-scroll feature rotates through screens for easy, hands-free operation. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable configurations include more than 15 important marine parameters for wind, speed and navigation. Installs easily, either flush or flat mount. It can even wirelessly connect to a compatible chartplotter or quatix® 3 GPS marine smartwatch to stream wind data directly to your wrist.  Also available in a GNX Wired Sail Pack.

Physical & Performance

Display Size

83 x 60 mm; 101.6 mm diagonal

(3.3” x 2.4”; 4.0” diagonal)

Dimension 110 x 115 x 30 mm (4.33" x 4.53" x 1.18")
Voltage range 9-16 V (from NMEA 2000)
Waterproof IPX7
Weight 230 g (8 oz)
Mounting Options       Flat or Flush
Display Type Standard LCD, monochrome



NMEA 0183 Compatible      No
Auto-on Yes
Temperature range From 5° to 158°F (from -15° to 70°C)
Glass bonded display Yes
User Profiles Yes
NMEA 2000® certified Yes
Compass safe distance 209 mm (8.25 in.)
Power Consumption

0.35 W (day); 0.4 W (night)

SKU GAR.010-01142-30
Model # 010-01142-30
UPC/EAN 0753759157845
Brand Garmin
Shipping Weight 0.8100kg

Be The First To Review This Product!

Help other Outback Marine Australia Pty Ltd users shop smarter by writing reviews for products you have purchased.

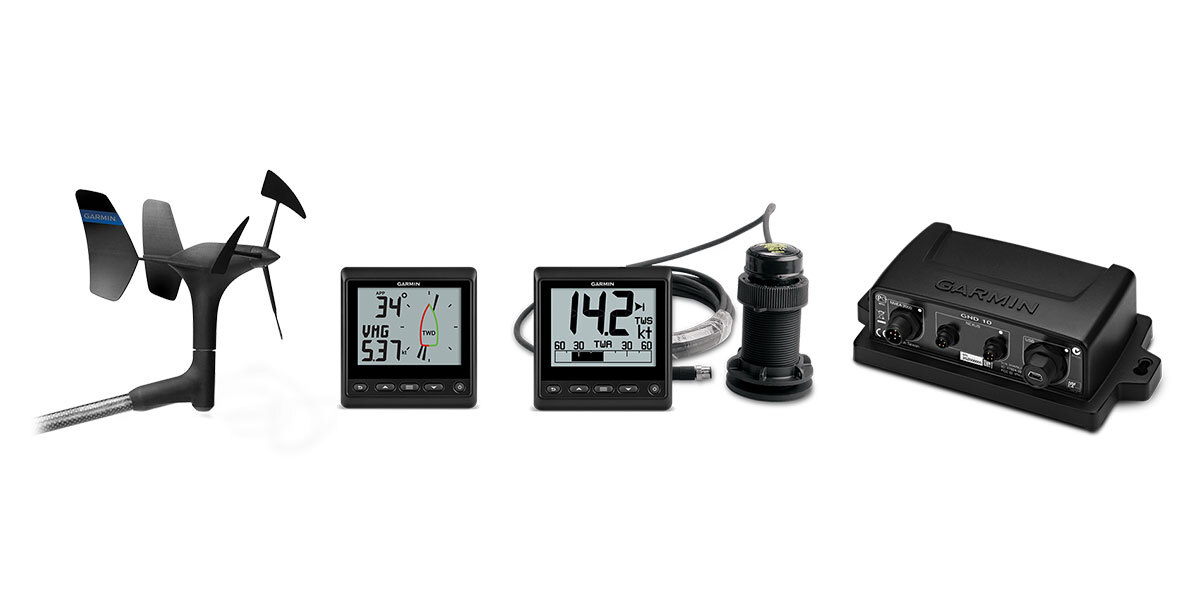

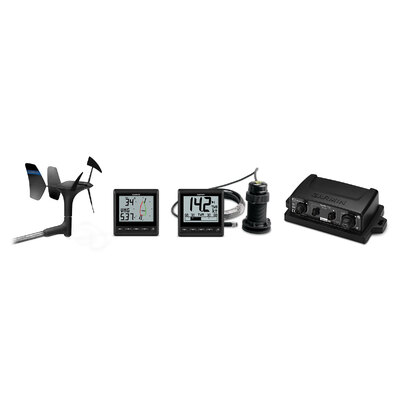

Write a product review
