Just Add Monitors

Give your vessel tremendous capabilities and features that are fully integrated across your entire marine system. This black box system is compatible with Garmin marine monitors or third-party touchscreen monitors (sold separately), allowing you to add to your current helm configuration or build a beautiful, new fully integrated glass helm.

Build Your Fully Integrated Marine System

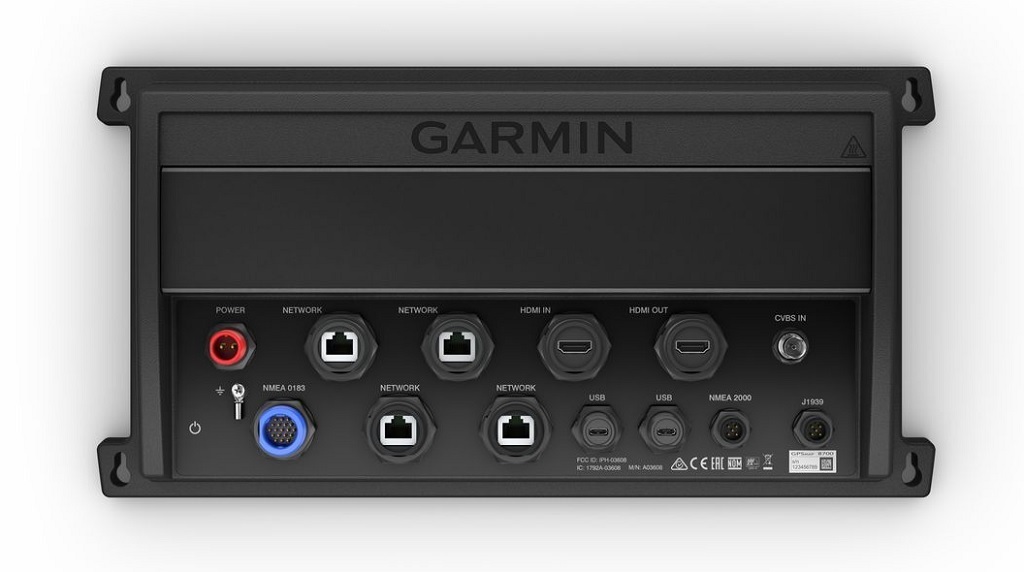

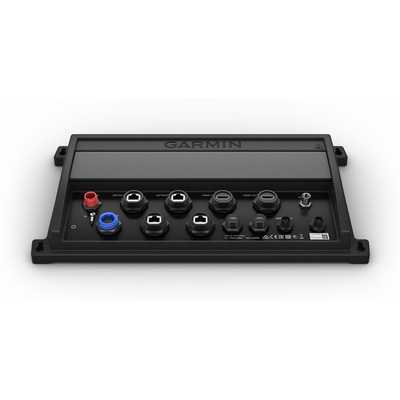

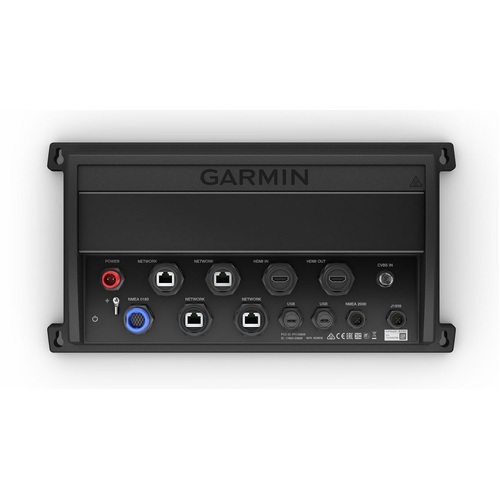

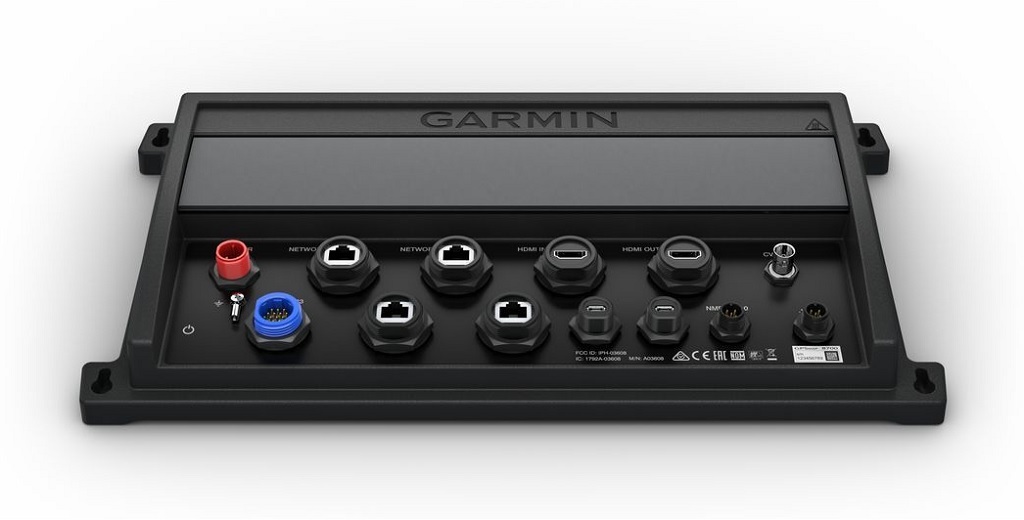

The GPSMAP 8700 black box allows you to add and integrate multiple sonar technologies as well as autopilot, connected services, apps, engine data and multimedia at your helm. You can also automatically sync your personal preferences and user data for all networked chart plotters across multiple helms. Everything you need can conveniently be found at your fingertips — on any touchscreen. NMEA 2000® networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chart plotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — to your touchscreen monitor. Connect to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information on your display. You may need additional hardware, so be sure to check with your engine manufacturer.

Pair with GPS 19x 10 Hz GPS and GLONASS Receiver

The GPSMAP 8700 black box can pair with our GPS 19x external 10 Hz GPS and GLONASS receiver (sold separately) to update your position and heading 10 times per second. It displays a more fluid vessel movement and dramatically improves your ability to accurately mark and navigate to 5,000 waypoints.

Requires Garmin Card Reader

The Garmin Card Reader (sold separately) provides convenient remote mounting and a single access point for 2 SD™ card slots for mapping. You can add multiple card readers for additional access points. A water-resistant magnetic door allows card reader to be mounted horizontally or vertically.

Add Garmin Charts or Maps with Navionics Data

Upgrade your maps with the most detailed, clear and concise charts and maps. Just add accessory map purchases such as BlueChart g3 and BlueChart g3 Vision coastal cartography and LakeVü g3 and LakeVü g3 Ultra inland mapping featuring Navionics data and Auto Guidance¹ technology. Auto Guidance technology uses your specified depth and overhead clearance to easily calculate routes and see a suggested path to follow. It’s also compatible with Quickdraw Contours software so you can instantly create personalized fishing maps on-screen with 1’ contours as you fish.



¹Auto Guidance is for planning purposes only and does not replace safe navigation operations

Physical & Performance

Display Size None
Display Resolution     1024 x 768
1280 x 1024
1920 x 1080
1920 x 1200
Dimension 15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm)
Waterproof IPX7
Weight

3.06 lbs (1.39 kg)

Display Type None (external display)



Maps & Navigation

Navigation Routes 100
Accepts Data Cards     2 SD™ cards (Garmin Card Reader required)



Features

Waypoints 5,000
Sailing Features Yes
NMEA 0183 Compatible Yes
GCV Black Box Sonar Support Yes
Connections NMEA0183 Input Ports 4
DSC Yes
Additional
  • USB: 2 micro
NMEA 2000 Compatible Yes
ActiveCaptain Mobile Planning Compatible

yes

AIS Yes
Video output ports

1 - HDMI

Connections Garmin Marine Network Ports 4
GSD Black Box Sonar Support Yes
Smart Mode Compatible Yes
Wireless Remote Compatible No
Supports Fusion Lync Compatible Radio Yes
GRID (Garmin Remote Input Device) compatible     Yes
Video input ports

1 - BNC composite
1 - HDMI

SKU GAR.010-02094-00
Model # 010-02094-00
UPC/EAN 0753759213589
Brand Garmin
Shipping Weight 2.6600kg
