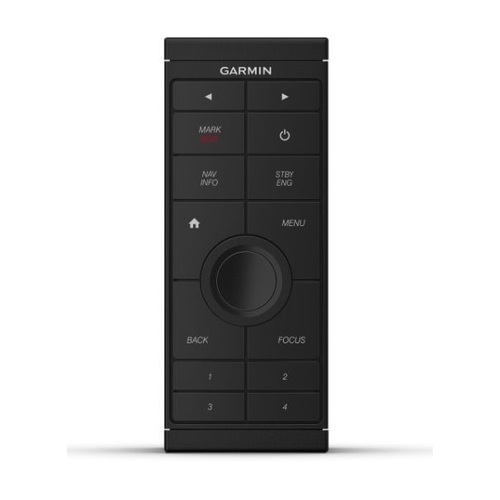

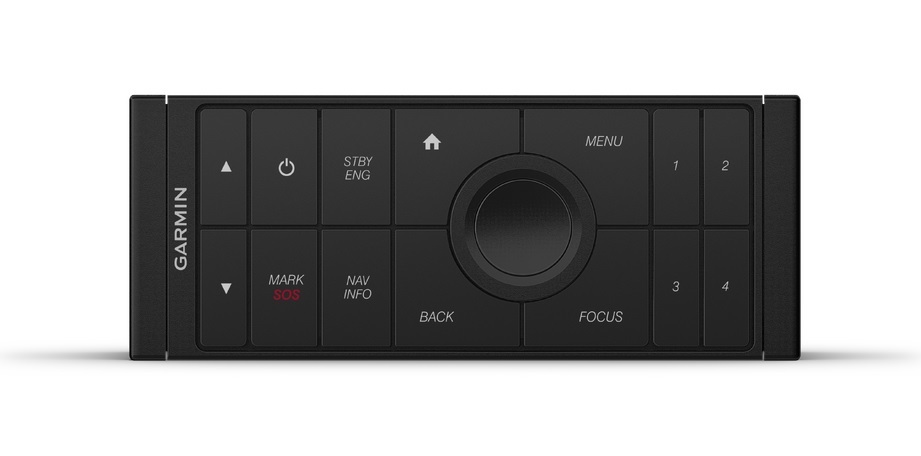

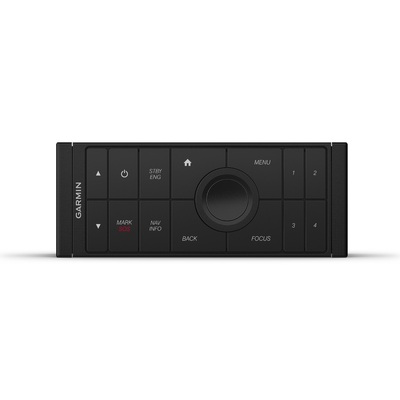

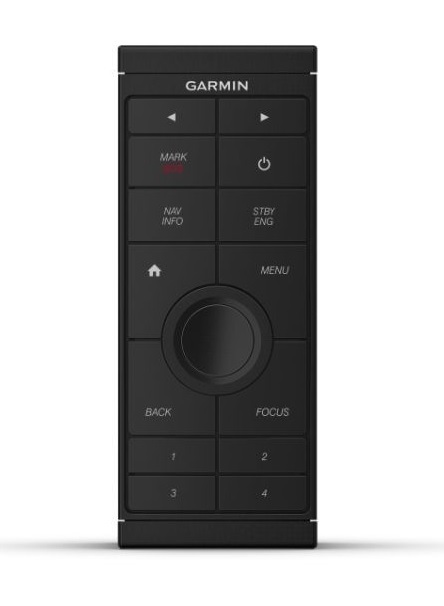

The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.

  • Dimensions (W×H×D): 5.6” x 2.2” x 2.7” (14.1 x 5.6 x 6.8 cm)
  • Weight: 6.3 oz (179 g)
  • Temperature range: From 5° to 158°F (from -15° to 70°C)
  • Material: Fully gasketed, high-impact plastic
  • Water rating: IPX7
  • Compass-safe distance: 4.5” (114 mm)
  • Power input:
    • NMEA 2000
    • -or-
    • Wired power (with included power cable):
      • Input power: 9-32 V dc
      • Fuse: 1.0 Amp, Fast Blow
      • Maximum power usage at 9 V dc: 1.5 W
      • Typical current draw at 12 V dc: 40 mA
      • Maximum current draw at 12 V dc: 120 mA
    • -or-
      • 2x AA battery powered (not included)
SKU GAR.010-02011-00
Model # 010-02011-00
UPC/EAN 0753759204945
Brand Garmin
Shipping Weight 0.4800kg
