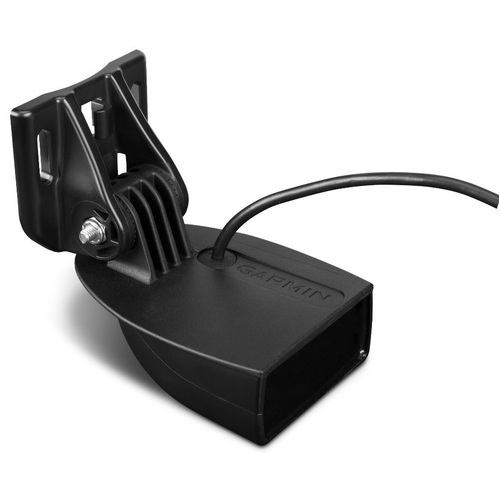

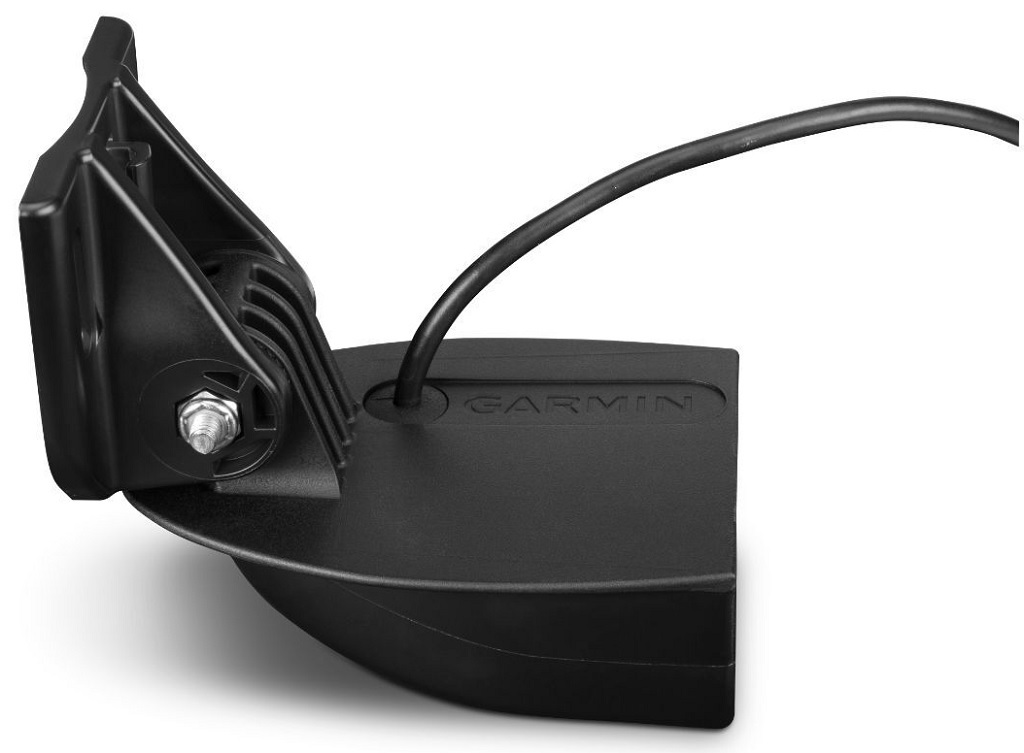

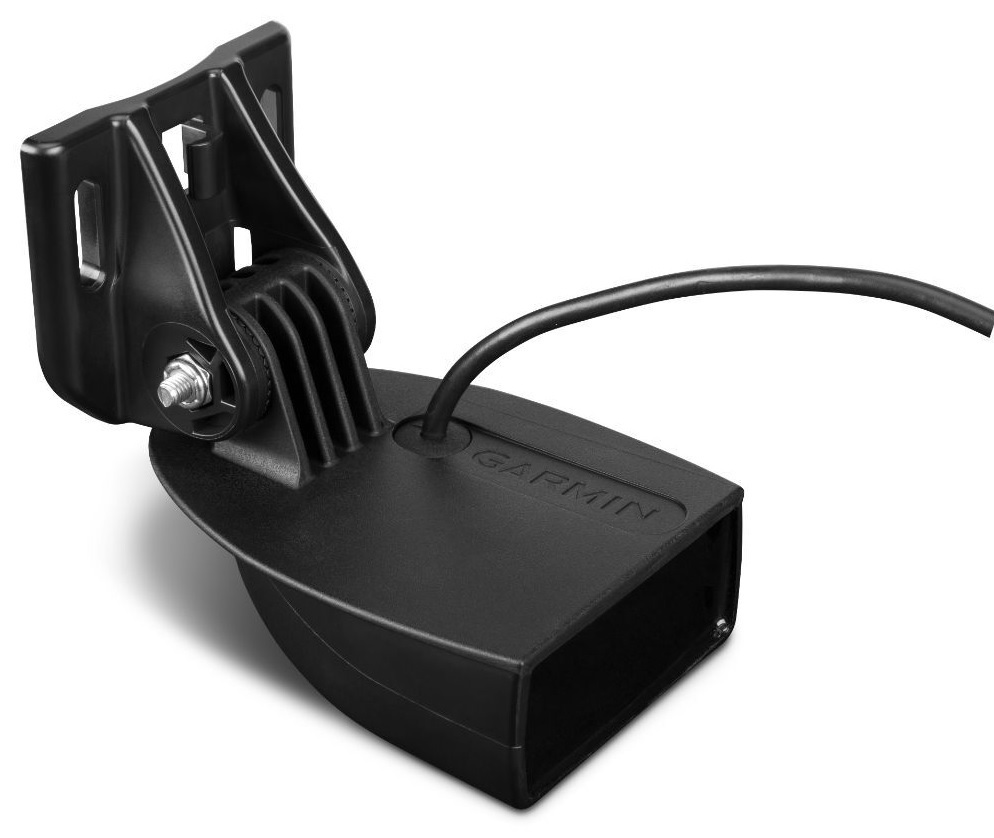

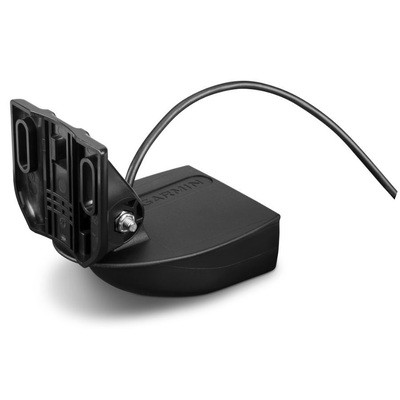

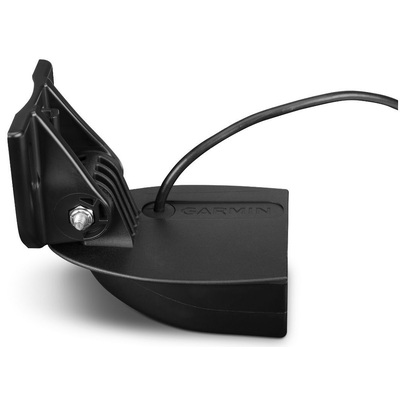

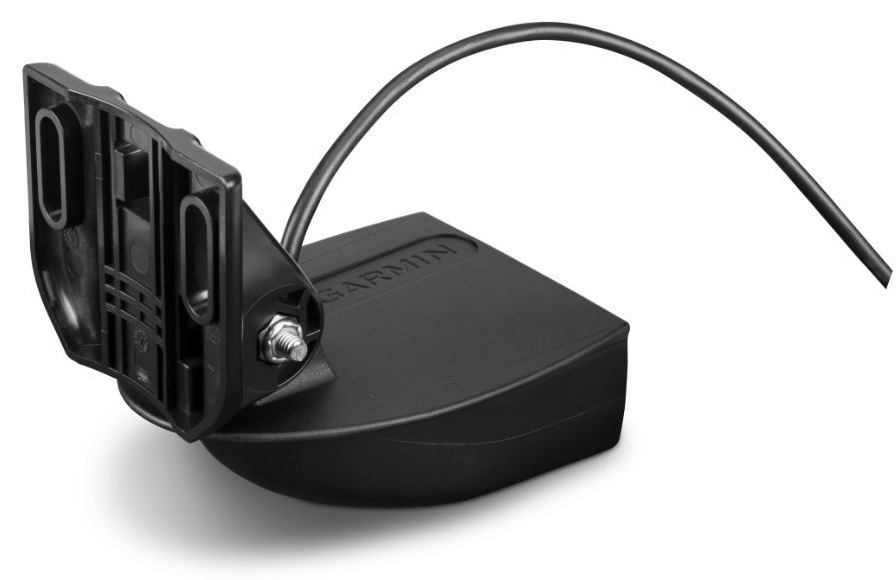

GT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet.

The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom.

Follow the included installation instructions carefully to avoid damaging your boat.


Transducer cable length 30 ft.
Transducer power 600 W
Transducer frequency CHIRP Mid-band (85-165 kHz)
Transducer maximum depth 1,900 ft. freshwater
Transducer number of pins 8-pin
Transducer beamwidth 24°-13°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      0°- 70° degree transom
SKU GAR.010-12402-10
Model # 010-12402-10
UPC/EAN 0753759174484
Brand Garmin
Shipping Weight 0.6900kg
