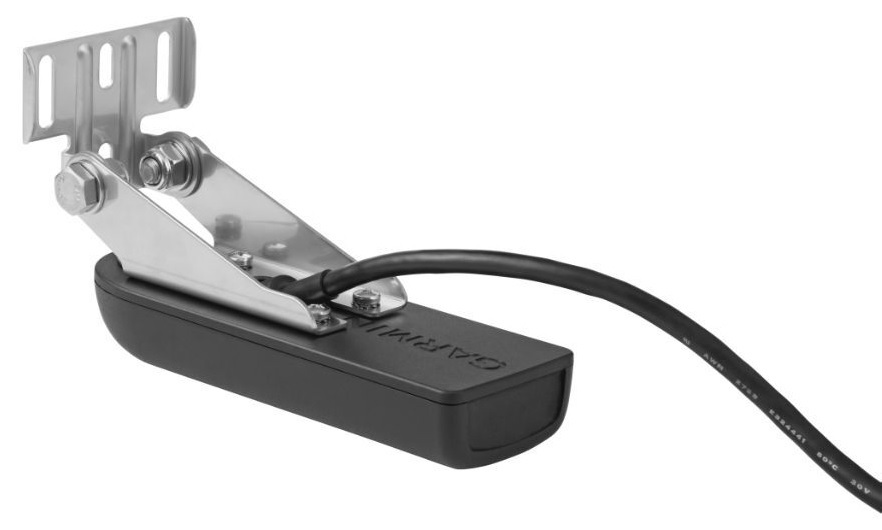

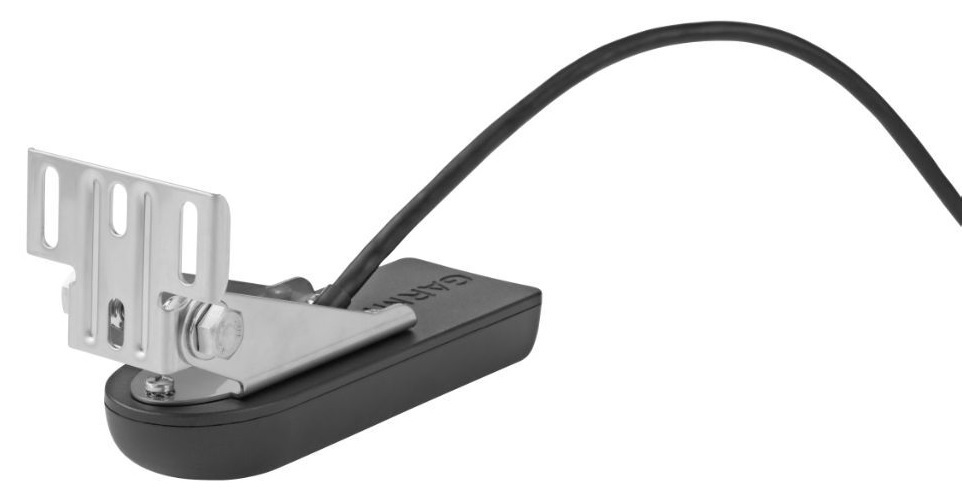

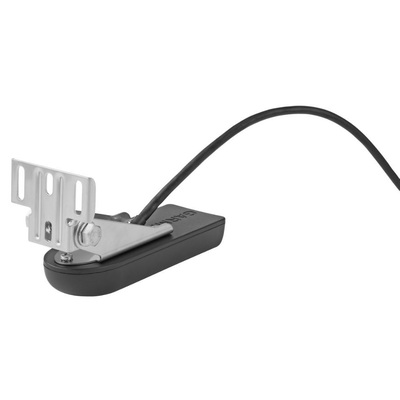

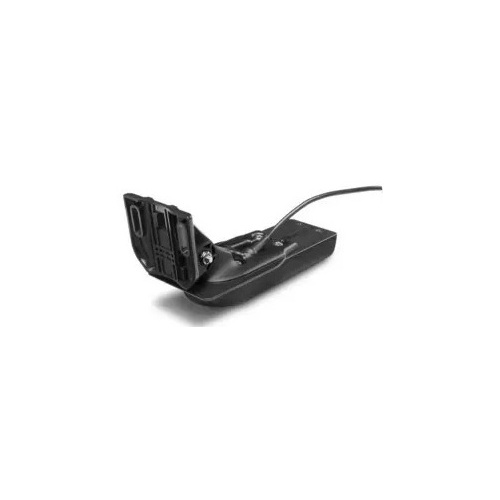

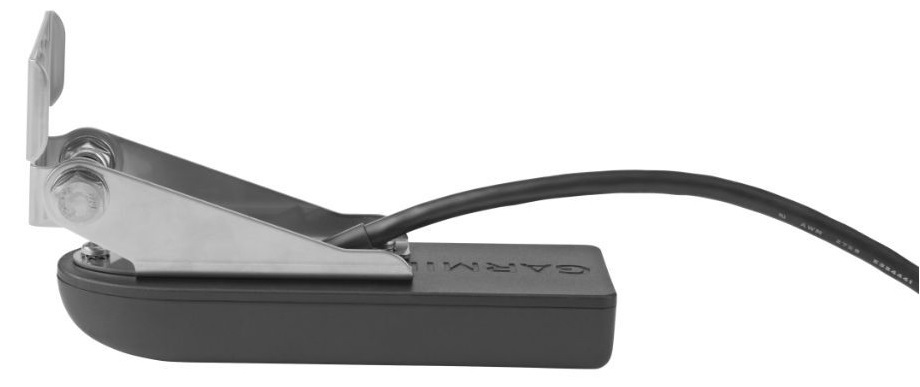

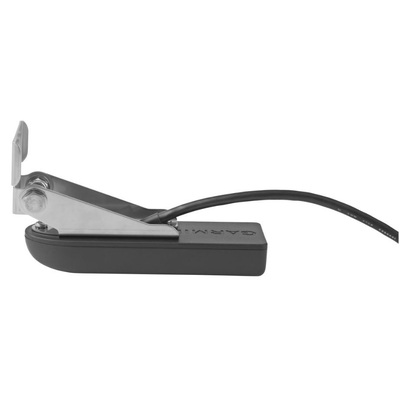

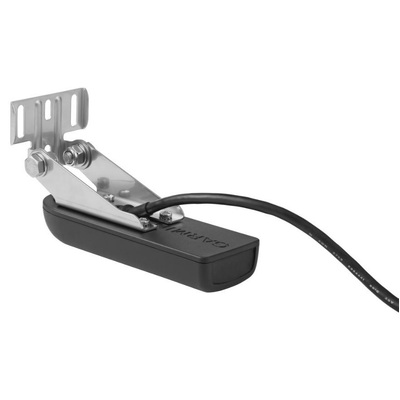

GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü (455/800 kHz) element has a power rating of 350 W.

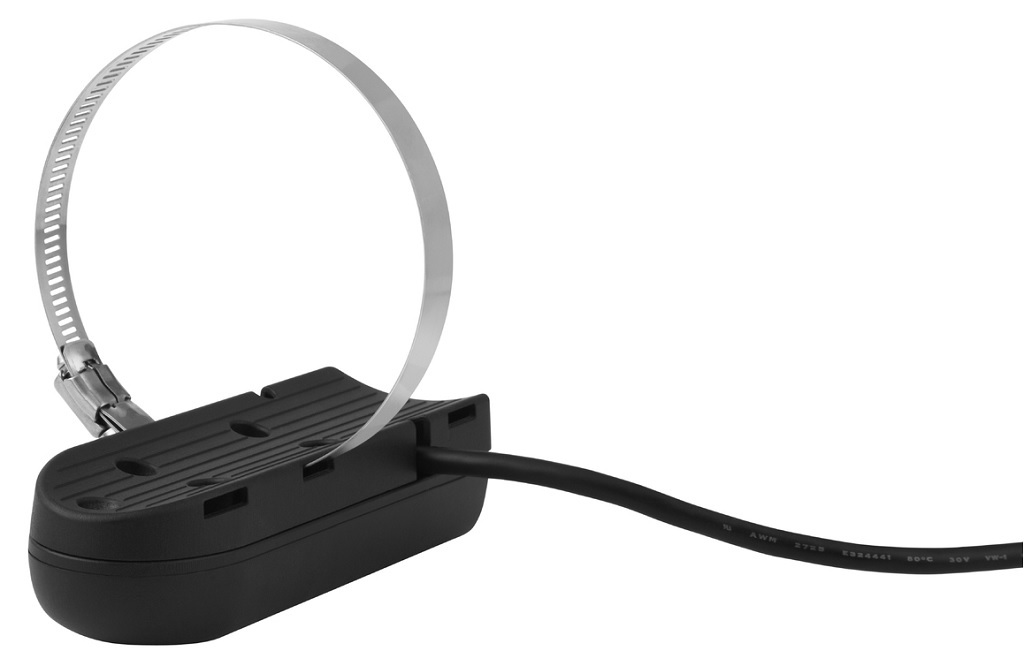

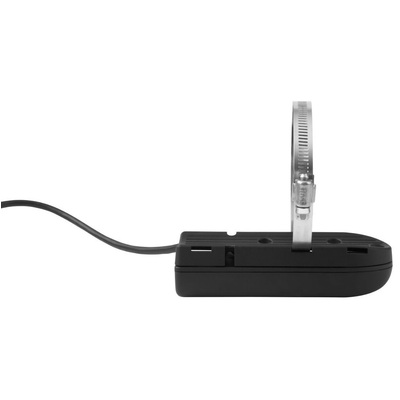

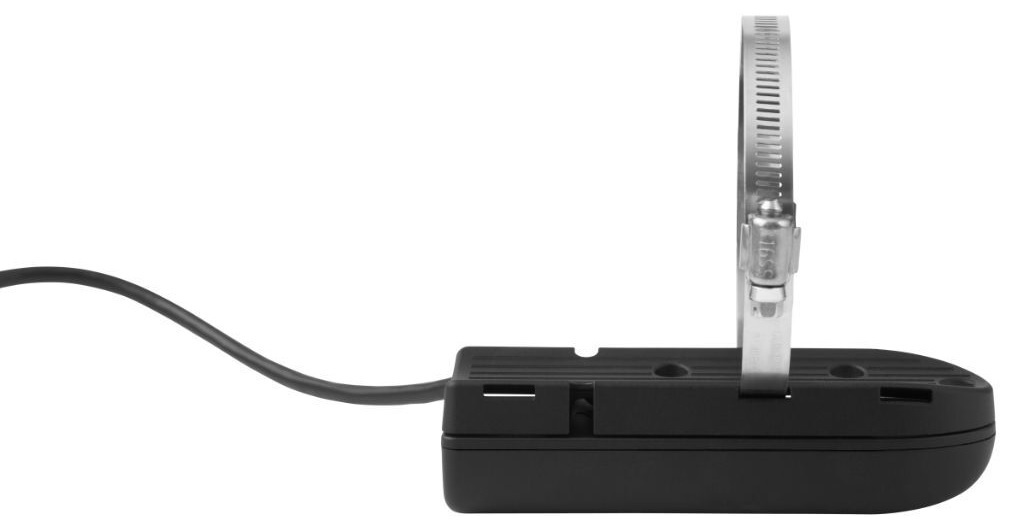

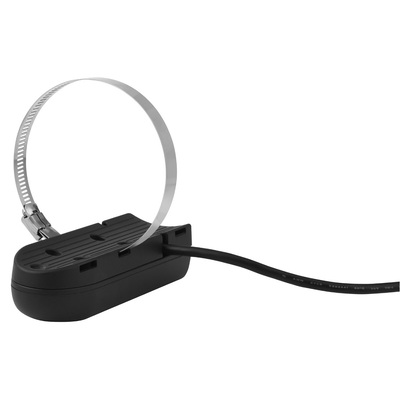

GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.


Transducer cable length 20 ft.
Transducer power CHIRP Traditional 250 W; ClearVü 350 W
Transducer frequency CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Transducer maximum depth Traditional: 800 ft.; ClearVü: 500 ft.
Transducer number of pins 8-pin
Transducer beamwidth Traditional: 24°-16°
ClearVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz
Transducer depth/speed/temperature     Depth and Temperature
Transducer supported deadrise/transom angles           0°-70° degree transom
SKU GAR.010-12403-00
Model # 010-12403-00
UPC/EAN 0753759148584
Brand Garmin
Shipping Weight 0.7800kg
