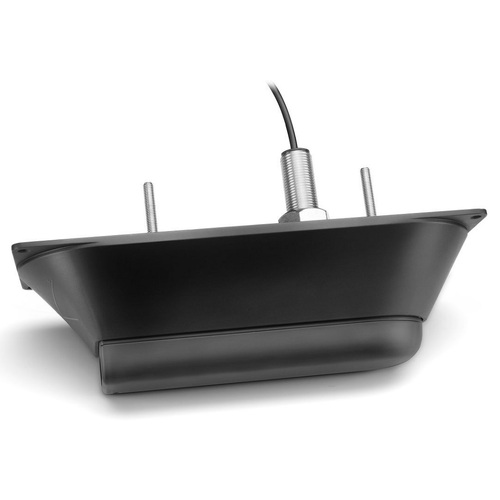

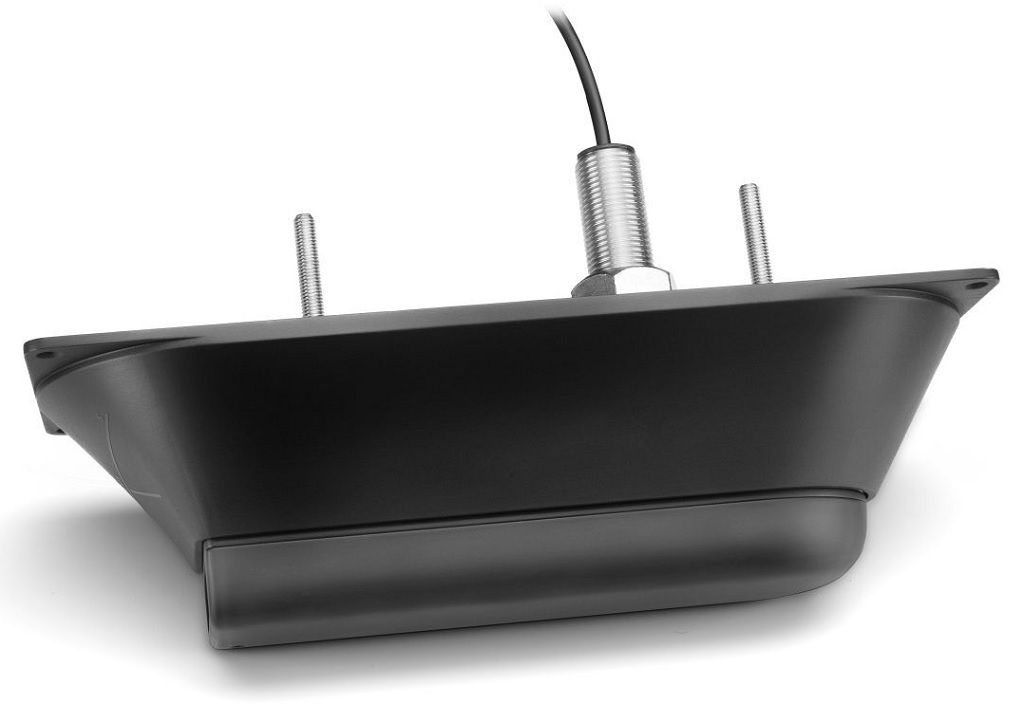

Perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.

For installation, follow the included instructions carefully to avoid damaging your boat.


Transducer cable length 30 ft.
Transducer power CHIRP Traditional 600 W; ClearVü 500 W
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Transducer maximum depth Traditional: 1,800 ft.; ClearVü: 1,000 ft.
Transducer number of pins 8-pin
Transducer beamwidth Traditional: 24°-13°
ClearVü: 2.0°x51° @ 260 kHz 1.4°x29° @ 455 kHz
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles        Up to 25° deadrise
SKU GAR.010-12404-10
Model # 010-12404-10
UPC/EAN 0753759148607
Brand Garmin
Shipping Weight 3.9100kg
