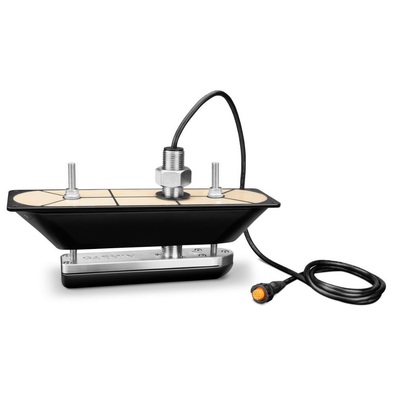

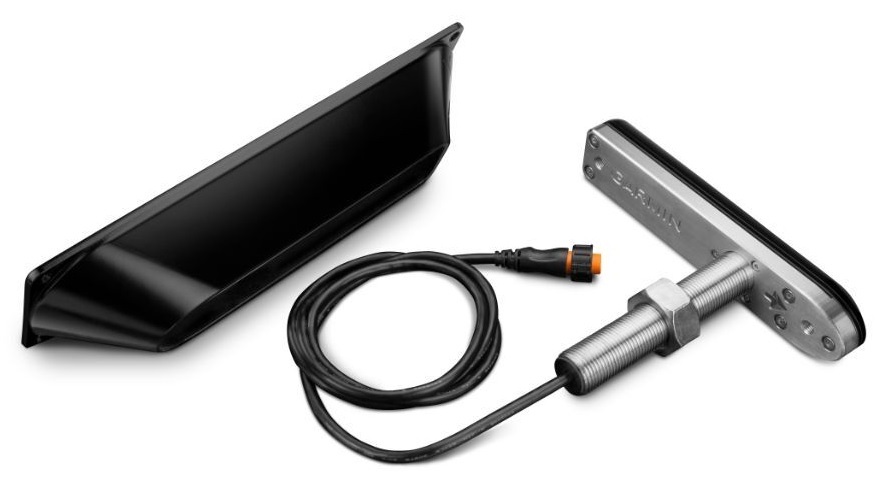

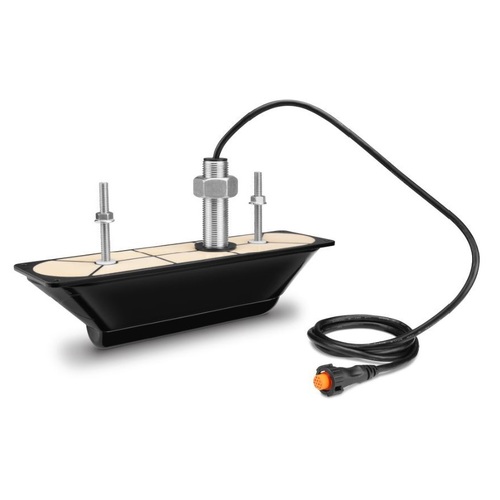

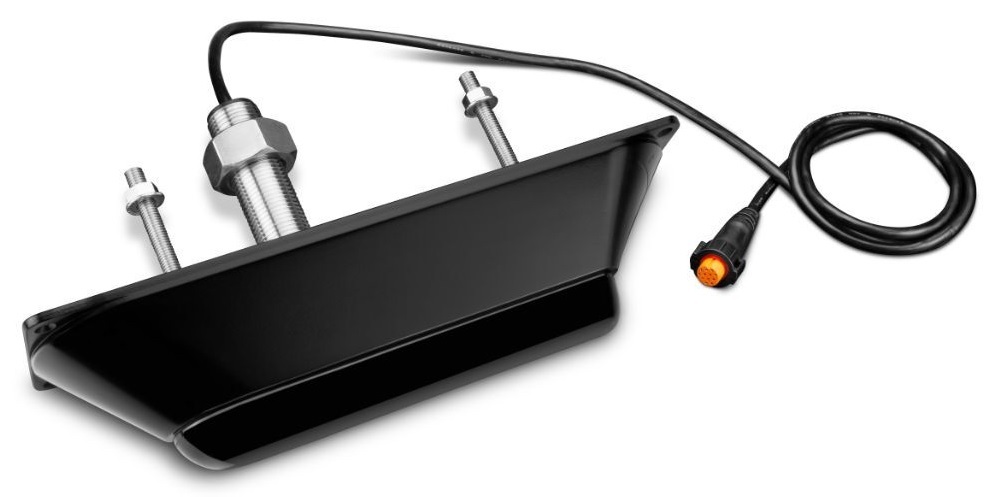

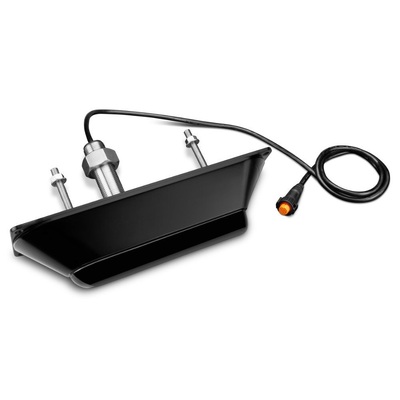

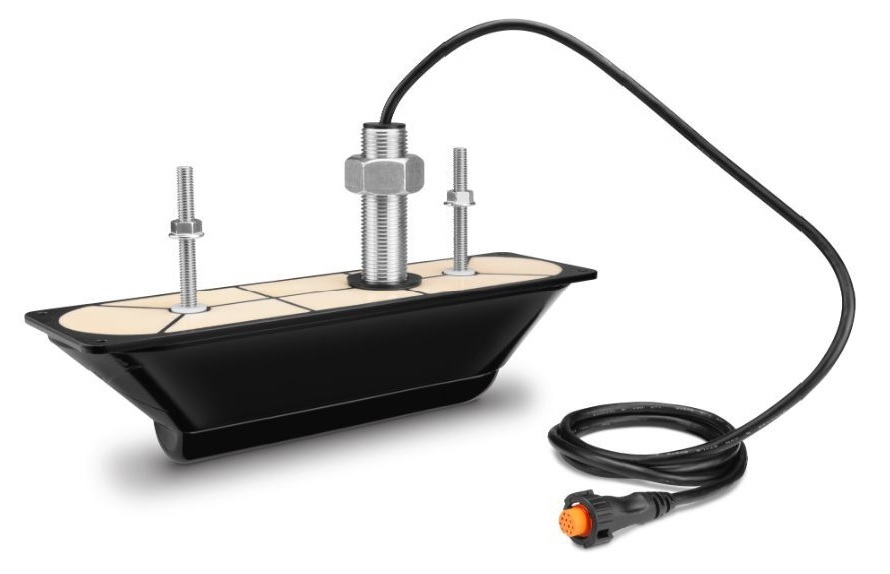

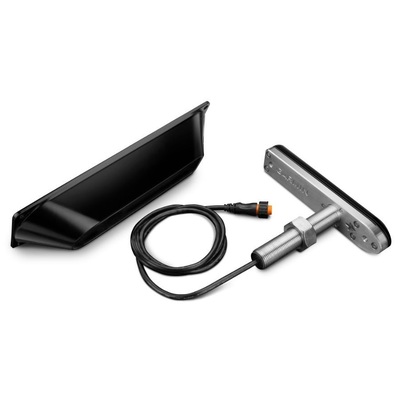

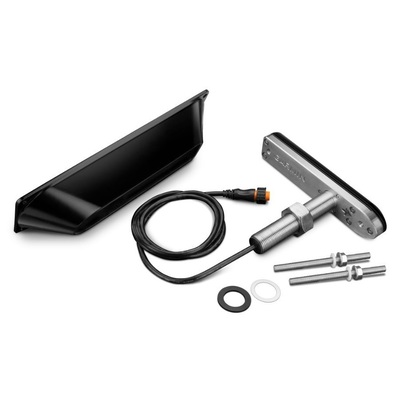

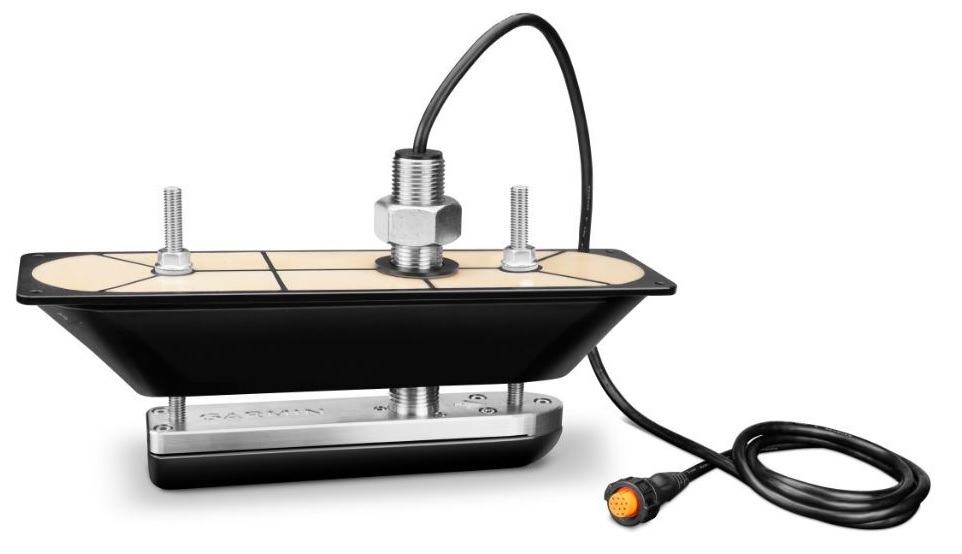

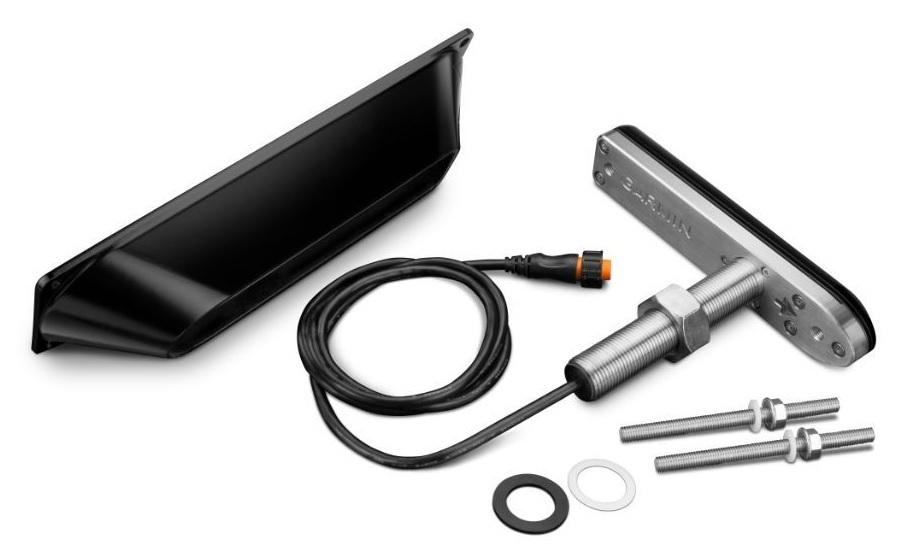

Ultra High-Definition Sonar System Thru-hull Transducer

Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVü Scanning

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Features

Transducer cable length 20 ft.
Transducer power 500 W
Transducer frequency

Ultra High-Definition ClearVü: 800 kHz (760-880 kHz)

Ultra High-Definition SideVü: 1,200 kHz (1,060-1,170 kHz)

Transducer maximum depth

200' Ultra High-Definition ClearVü

125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30'

Transducer number of pins 12-pin
Transducer beamwidth ClearVü: 0.76°x46° @ 800 kHz
SideVü: 0.44°x55° @ 1,200 kHz
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      Up to 5° deadrise
SKU GAR.010-12776-10
Model # 010-12776-10
UPC/EAN 0753759206352
Brand Garmin
Shipping Weight 2.8300kg
