Advanced Sailboat Autopilot System with Brushless Linear Drive and Touchscreen Control

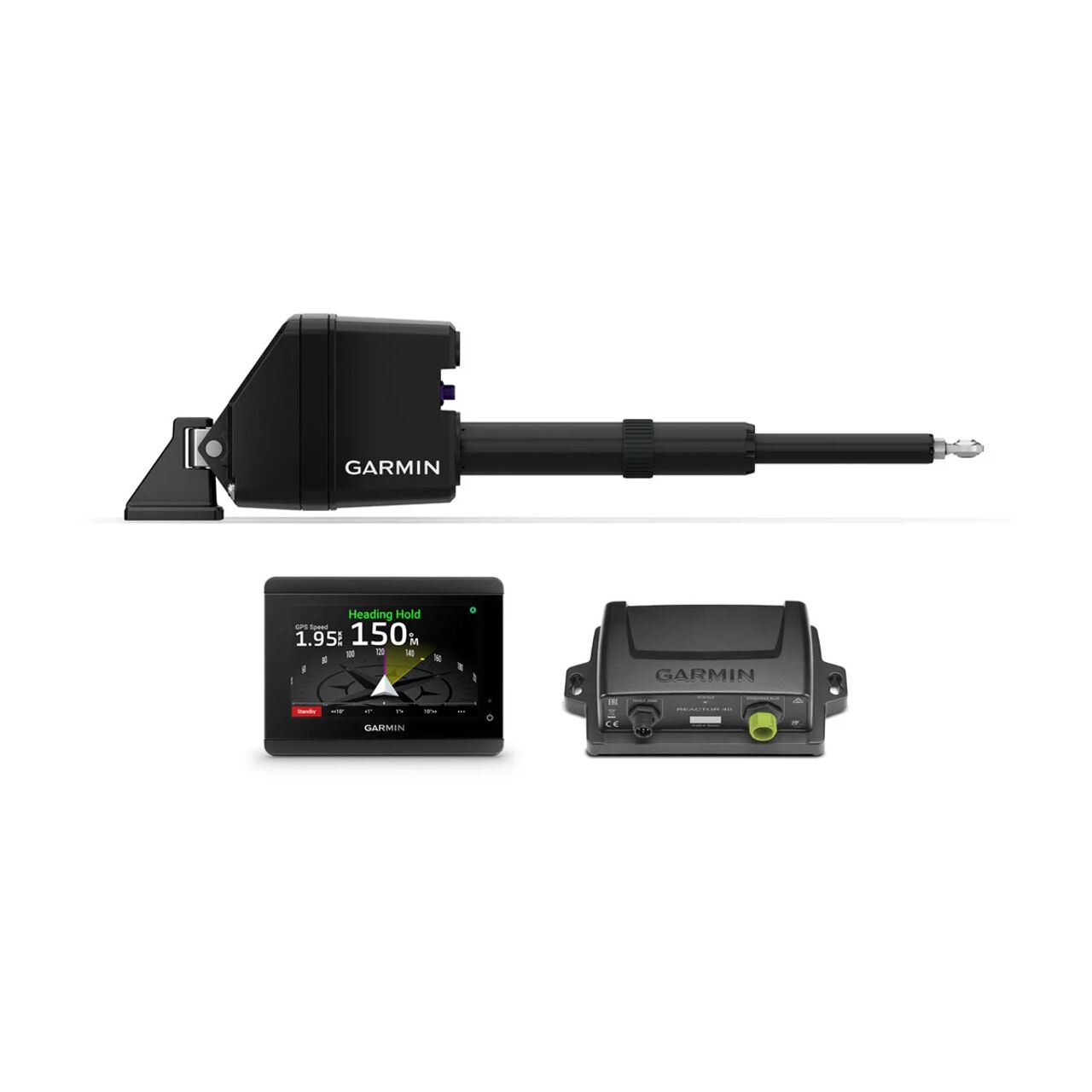

The Garmin Reactor™ Sail Corepack with SmartDrive™ and Display is an integrated autopilot system for sailboats and catamarans equipped with mechanical steering. Combining the Reactor course computer, SmartDrive brushless linear actuator and GHC touchscreen display, the system delivers precise rudder control, responsive course keeping and simplified helm operation. The actuator incorporates an integrated Electronic Control Unit (ECU) and contactless rudder position sensor to reduce mechanical wear and improve steering reliability. Advanced motion sensing automatically compensates for changing sea conditions, while dedicated sailing functions support wind-angle steering, controlled tacking and gybing. Its retrofit-friendly construction and marine networking capabilities make it suitable for new installations and existing autopilot upgrades.

Key Features

• Integrated Autopilot System: Combines the Reactor course computer, SmartDrive linear actuator and GHC touchscreen display for coordinated steering control.
• Brushless SmartDrive Actuator: Uses a brushless DC motor with an integrated ECU for smooth steering response, reduced mechanical wear and simplified installation.
• Contactless Rudder Feedback: Integrated rudder position sensor monitors steering movement without mechanical contact, reducing moving parts and maintenance requirements.
• Advanced Motion Sensing: Solid-state AHRS technology continuously monitors vessel movement and heading to maintain accurate steering in changing sea conditions.
• Touchscreen Helm Control: GHC display offers an intuitive interface for autopilot operation, heading adjustments and system configuration.
• Sailing-Specific Functions: Supports wind-angle steering with a compatible wind sensor, improved upwind holding and adjustable tack and gybe speeds.
• Adjustable Steering Force: User-configurable thrust settings accommodate different vessel displacement and steering requirements.
• Simplified Commissioning: Flexible course computer mounting and guided calibration streamline installation and system setup.
• Marine Network Integration: Supports NMEA networking and integration with compatible Garmin multifunction displays and marine electronics.
• Wireless Control Compatibility: Allows autopilot operation through compatible Garmin handheld remotes and quatix smartwatches.
• Retrofit-Friendly Construction: Linear actuator mounting configuration supports replacement of existing mechanical autopilot drives.

The Reactor Sail Corepack combines intelligent motion sensing, mechanical steering control and dedicated helm operation in an integrated autopilot package. Its sailing functions and configurable actuator settings support consistent steering performance across different vessel configurations.
