A new way to see what’s under the water.

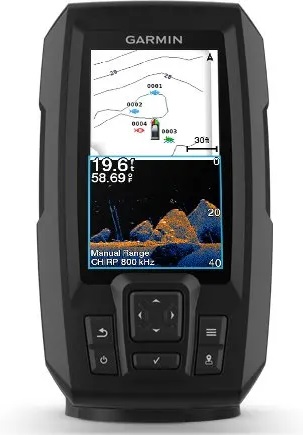

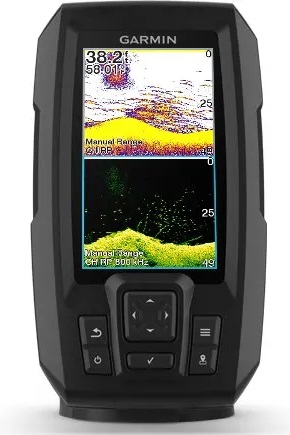

CLEAR, COLOURFUL SONAR

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 4-inch fishfinder.

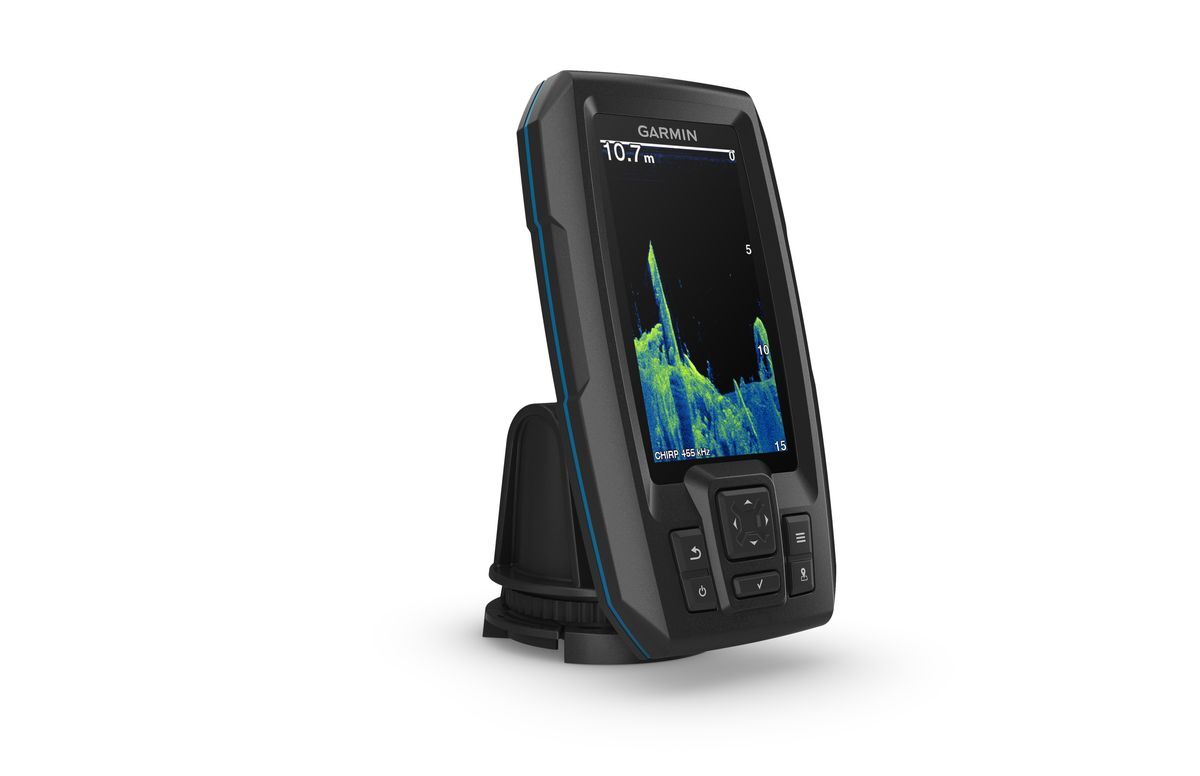

BUILT-IN SONAR

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

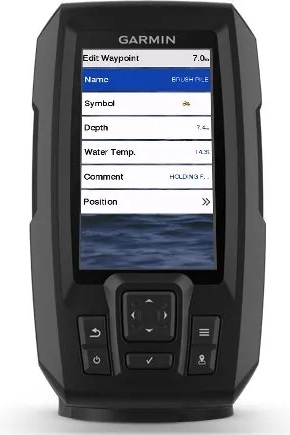

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

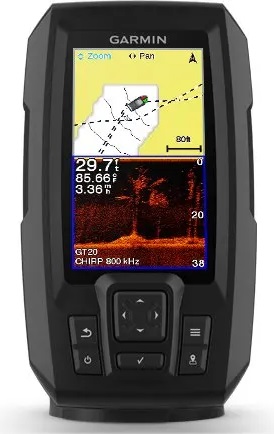

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

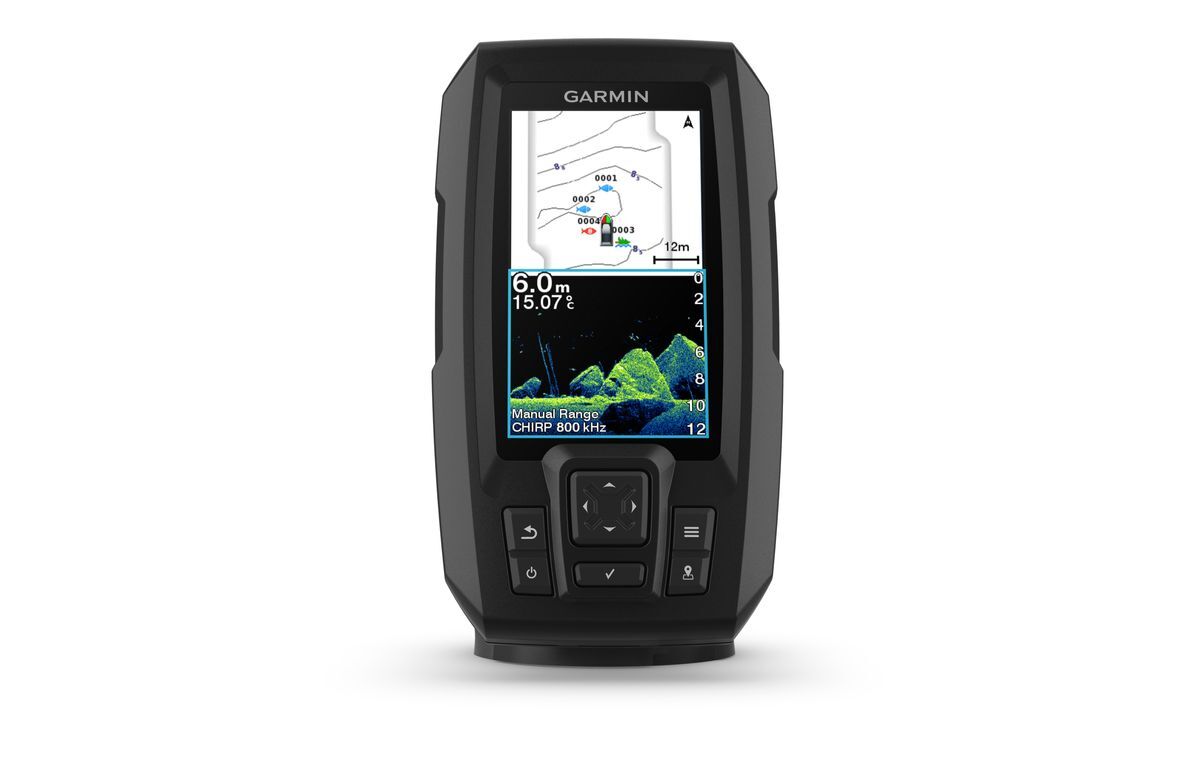

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

INCLUDED HARDWARE

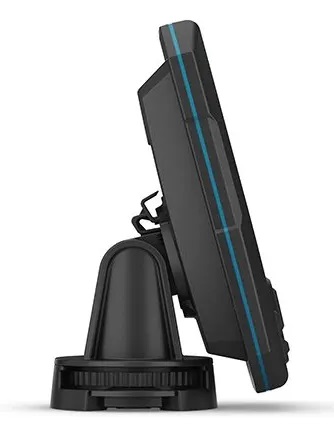

The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Physical & Performance

Display Size 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm)
Display Resolution   272 X 480 pixels
GPS Yes
Dimension 3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm)
Receiver

Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz
Power Input 12 to 20 Vdc
Waterproof IPX7
Weight 0.7 lbs (0.3 kg)

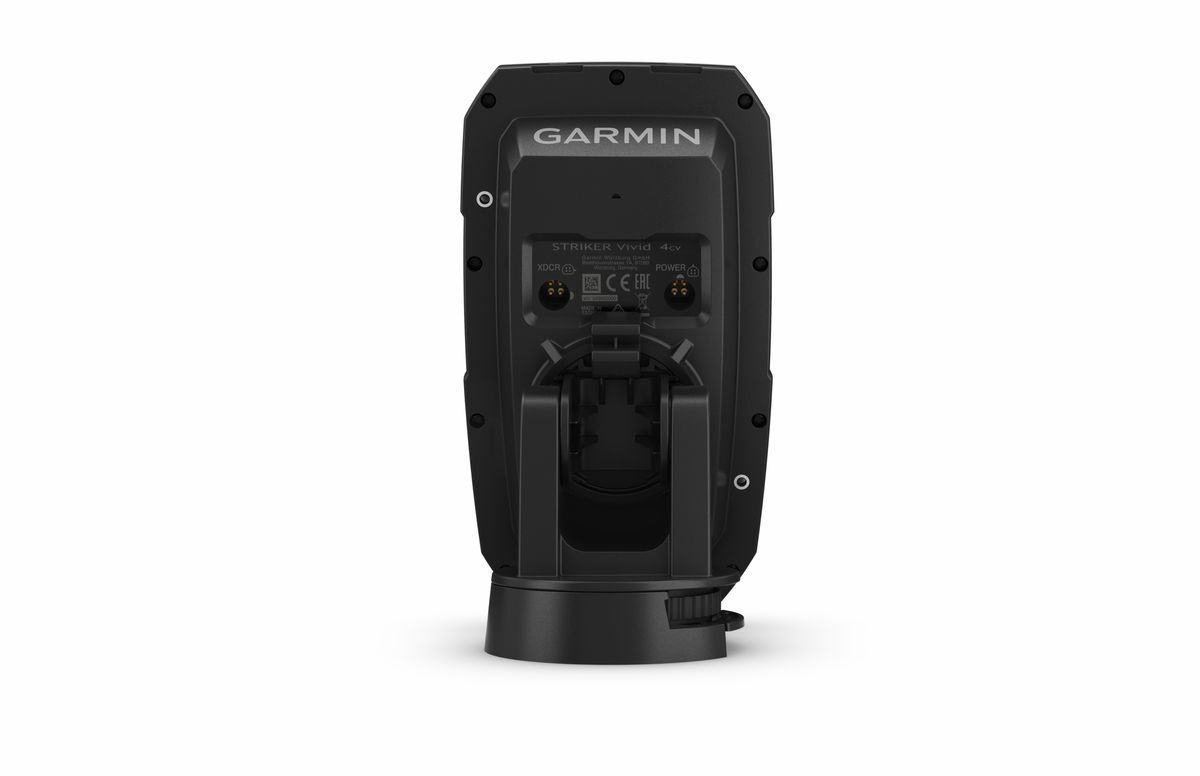

Mounting Options    flush, tilt/swivel
Display Type QSVGA



Maps & Navigation

Navigation Routes 100
Waypoints/favorites/locations    5000



Features

LakeVu (inland) No
Fish Symbol ID (helps identify fish targets) Yes
Transmit power 300 W (RMS)
NMEA 0183 Compatible No
Has built-in receiver Yes
Displays sonar Yes
Water Temperature Log Yes
ANT+ (Connectivity) No
USB ports No
Autogain technology (minimizes clutter; maximizes targets) Yes
BNC external GPS antenna port No
(Sounder) SideVü No
BlueChart g3 Vision No
Garmin Wi-Fi network (local connection) No
Additional
  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.40A
Input Keyed
LakeVü g3 Ultra No
Water temperature sensor included Yes
Depth range shading Yes
NMEA 2000 Compatible No
Garmin Quickdraw Contours Yes
BLUETOOTH® calling No
GLONASS No
Split-screen zoom Yes
Track points 50,000
Panoptix™ sonar No
A-scope (real time display of fish passing through transducer beam)    Yes
Adjustable depth line (measures depth of underwater objects) Yes
LakeVü g3 No
Raster chart support No
Typical current draw 0.40 A
4-pin transducer ports 1
Supports WAAS Yes
ClearVü Yes
Tracks 50
Max current draw 1.5 A
Built-in Auto Guidance No
Galileo No
LiveScope No
Bottom Lock (shows return from the bottom up) Yes
Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Tide Tables No
Power Consumption 4.8
BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Built-in
BlueChart g3 No
Standard Mapping No
SKU GAR.010-02550-01
Model # 010-02550-01
UPC/EAN 0753759268305
Brand Garmin
Shipping Weight 1.4500kg
