A new way to see what’s under the water.

CLEAR, COLOURFUL SONAR

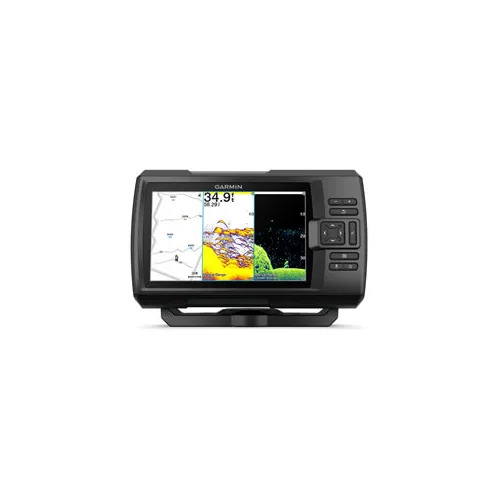

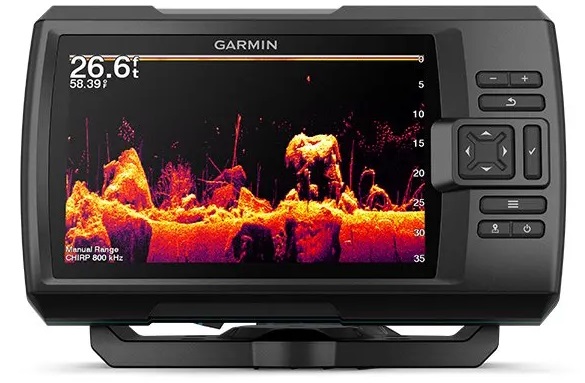

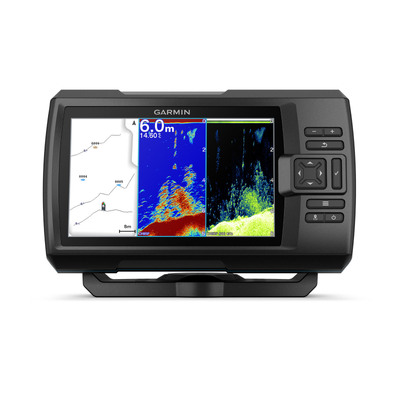

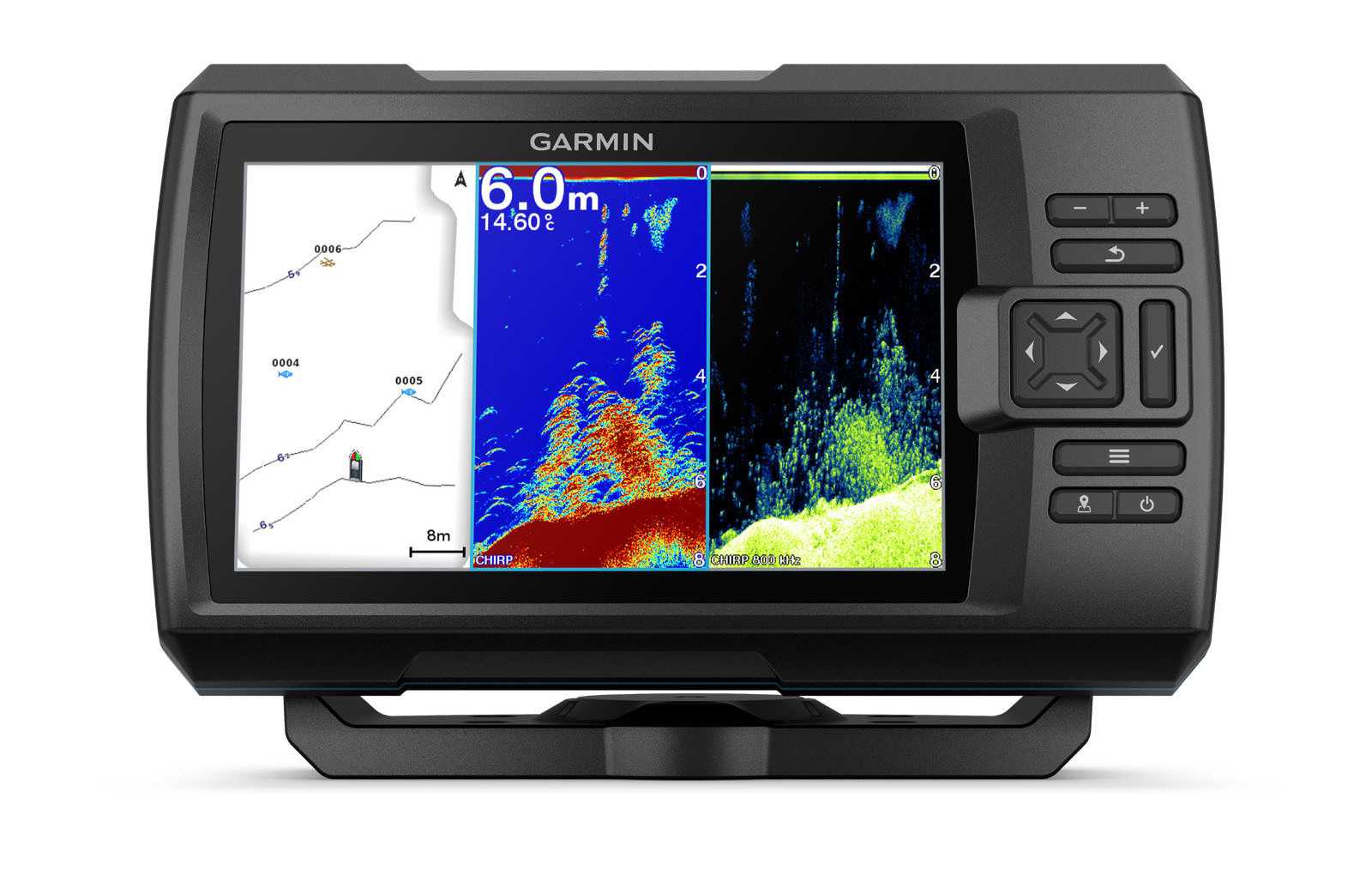

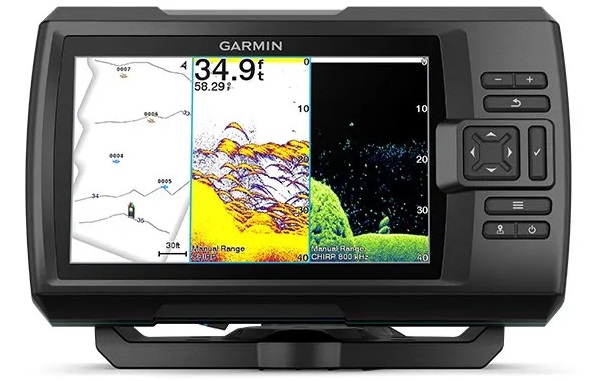

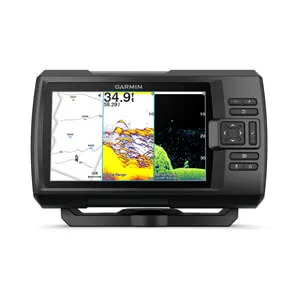

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 7-inch fishfinder.

BUILT-IN SONAR

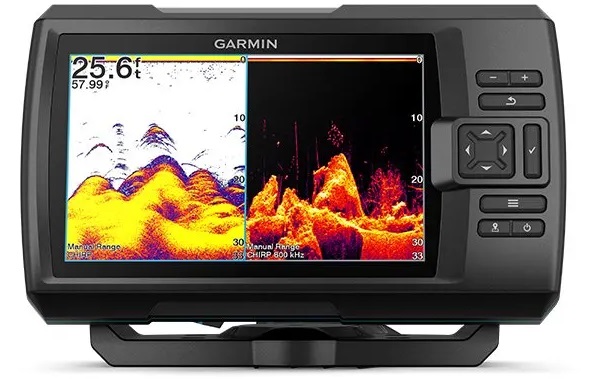

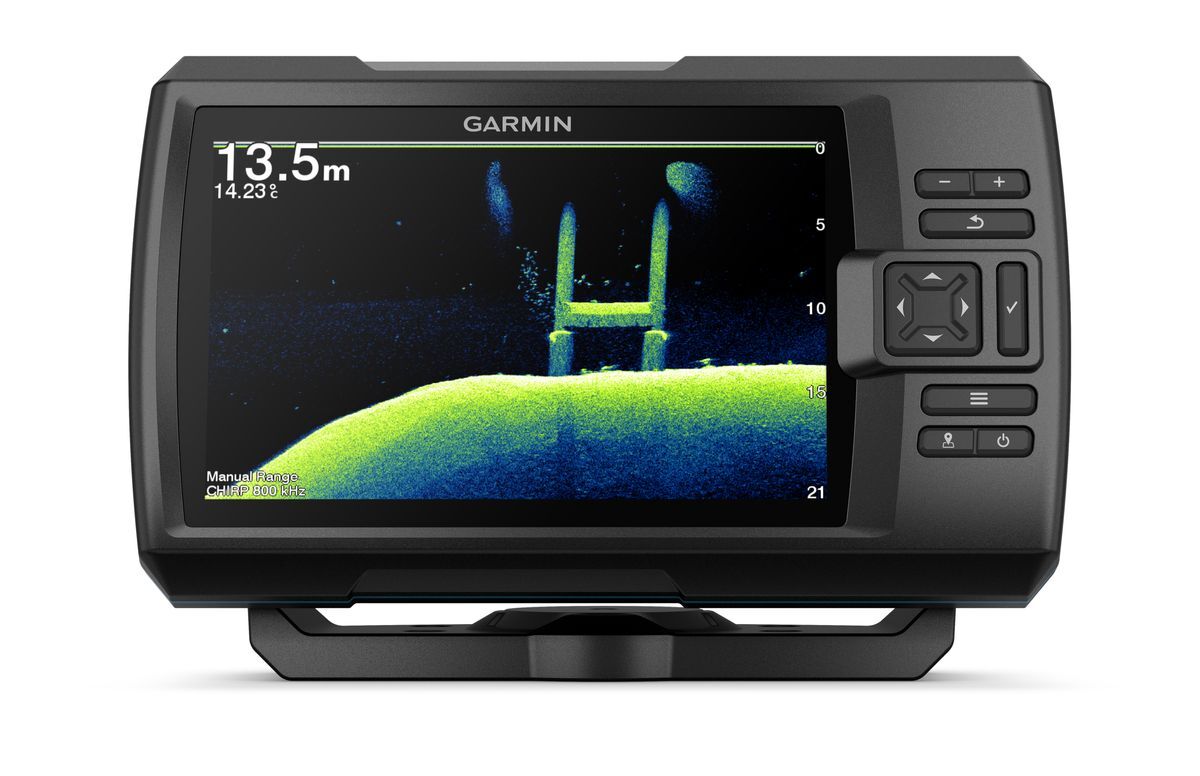

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

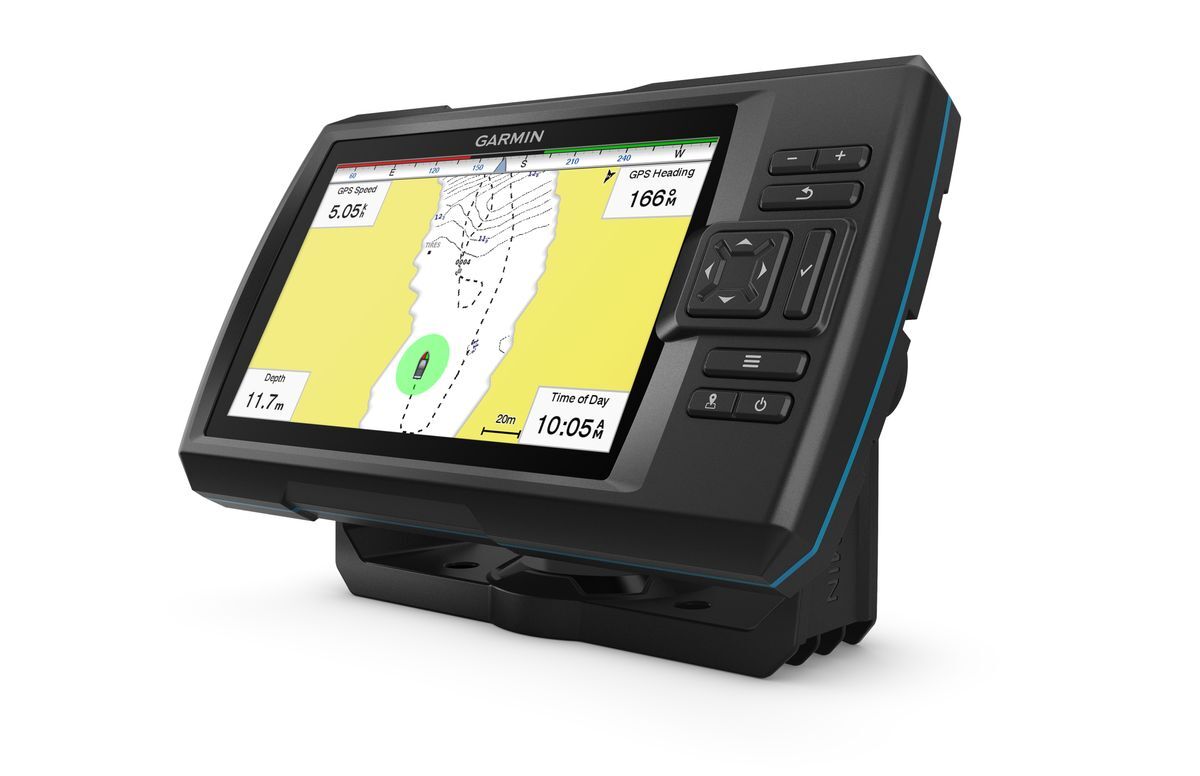

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

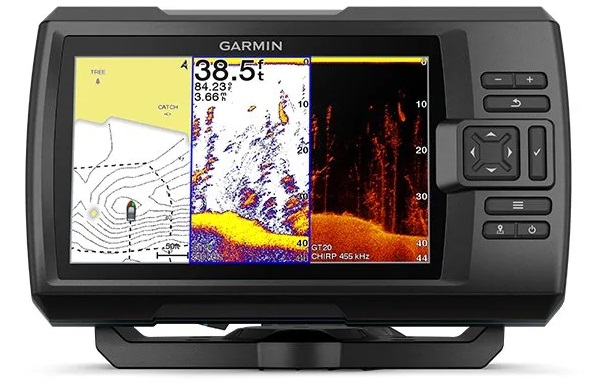

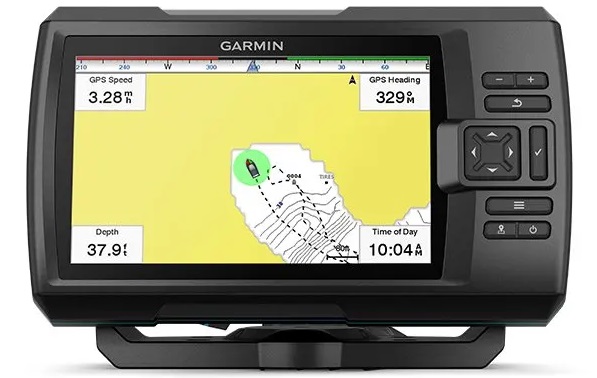

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

INCLUDED HARDWARE

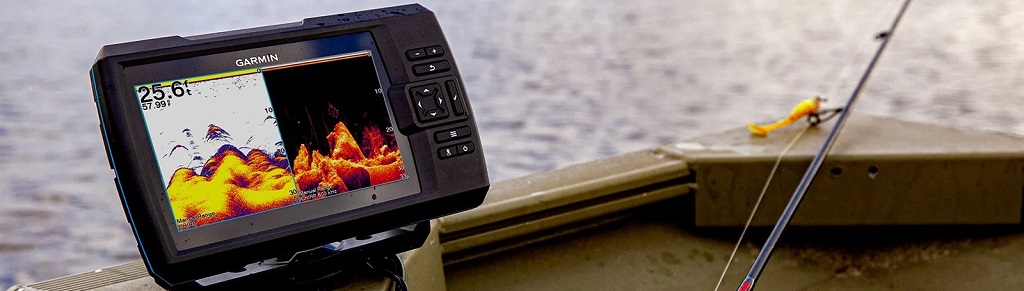

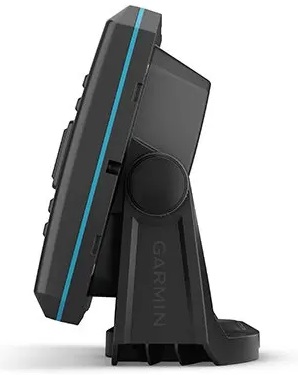

The STRIKER Vivid 7cv includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

WI-FI CONNECTIVITY

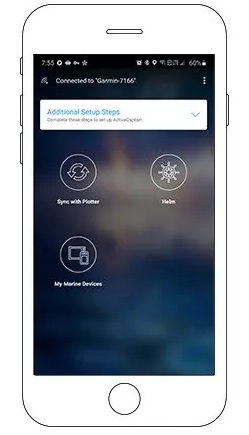

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community.









Add a portable Fishing Kit.

Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7cv fishfinder; see Garmin.com/ble.

Wi-Fi® is a registered trademark of the Wi-Fi Alliance.

Physical & Performance

Display Size 3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)
Power Input 12 to 20 Vdc
Display Resolution      800 x 480 pixels
GPS Yes
Dimension 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
Receiver

Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz

Waterproof IPX7
Weight 1.7 lbs (0.8 kg)
Mounting Options flush, tilt/swivel
Display Type WVGA colour



Maps & Navigation

Waypoints/favorites/locations      5000
Navigation Routes 100



Features

Transmit power 500 W (RMS)
NMEA 0183 Compatible No
Has built-in receiver Yes
USB ports No
Autogain technology (minimizes clutter; maximizes targets) Yes
(Sounder) SideVü No
Additional

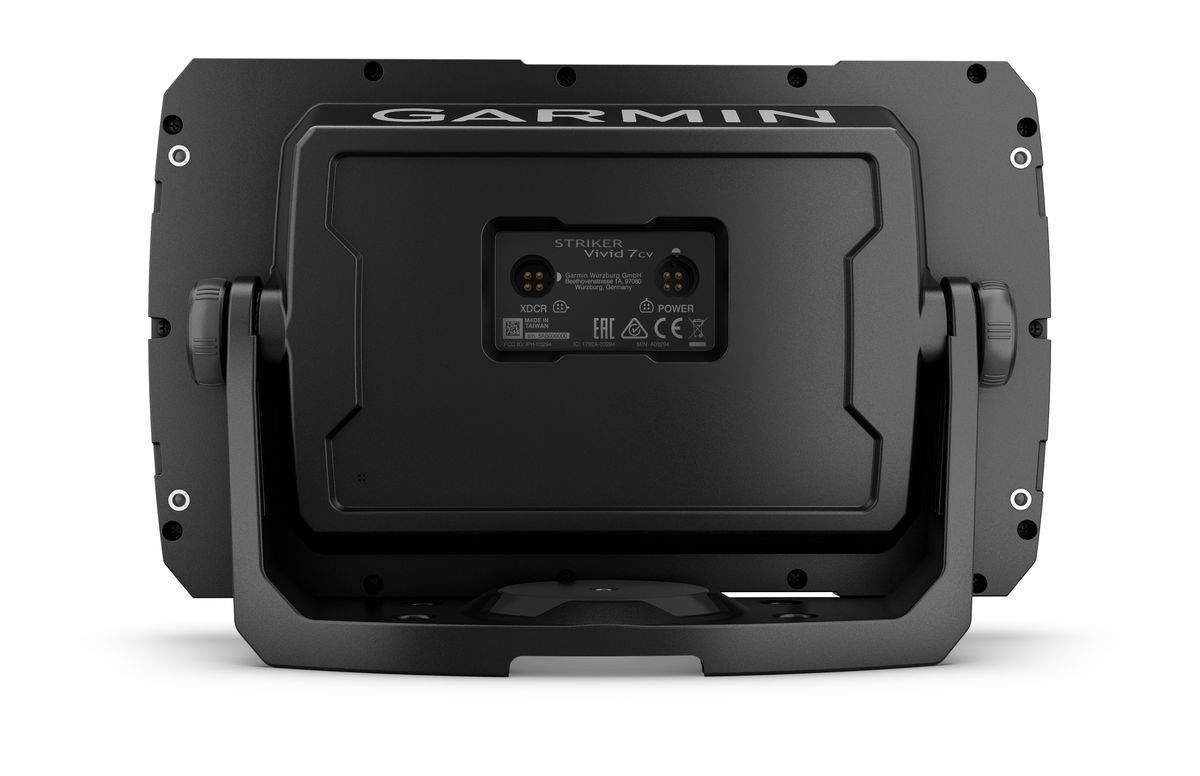

  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.67A
LakeVü g3 Ultra No
Water temperature sensor included Yes
NMEA 2000 Compatible No
GLONASS No
Track points 50,000
Panoptix™ sonar No
A-scope (real time display of fish passing through transducer beam) Yes
Adjustable depth line (measures depth of underwater objects) Yes
LakeVü g3 No
Typical current draw 0.55 A
Supports WAAS Yes
Max current draw 1.5 A
Built-in Auto Guidance No
BlueChart g3 No
Standard Mapping No
LakeVu (inland) No
Fish Symbol ID (helps identify fish targets) Yes
Displays sonar Yes
Water Temperature Log Yes
ANT+ (Connectivity) No
BNC external GPS antenna port No
BlueChart g3 Vision No
Garmin Wi-Fi network (local connection) Yes
Input Keyed
Depth range shading Yes
Garmin Quickdraw Contours Yes
BLUETOOTH® calling No
Split-screen zoom Yes
Raster chart support No
4-pin transducer ports 1
ClearVü Yes
Tracks 50
Galileo No
LiveScope No
Bottom Lock (shows return from the bottom up) Yes
Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Tide Tables No
Power Consumption

6.6

BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Built-in
SKU GAR.010-02552-01
Model # 010-02552-01
UPC/EAN 0753759268374
Brand Garmin
Shipping Weight 2.1600kg
