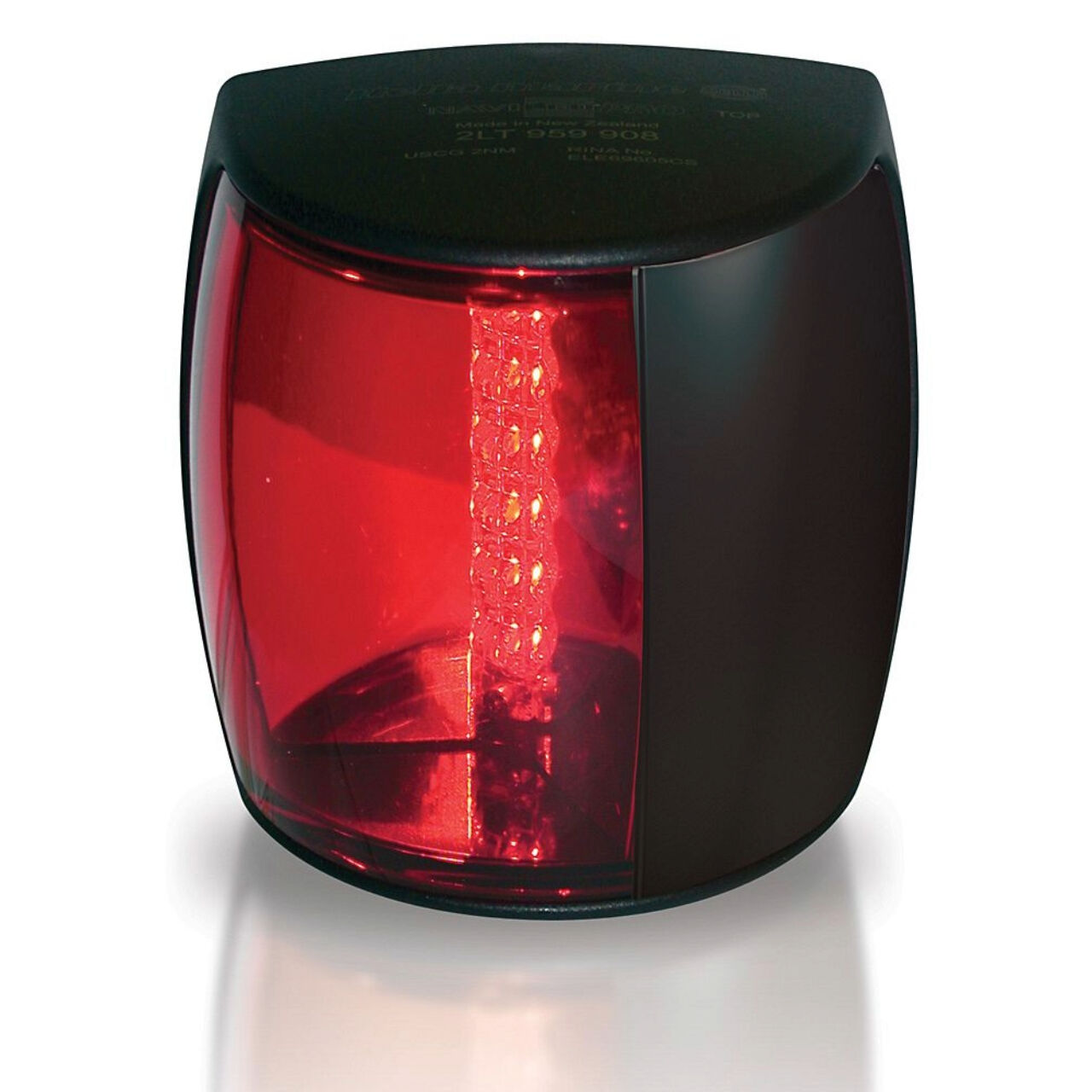

Compact Red Navigation Light for Clear Port Side Marking

This efficient port navigation lamp is engineered to define the port side of vessels up to 50 metres. With 2 NM visibility and red LED output, it ensures safe operation and compliance in marine environments, while offering durable, sealed construction and minimal power consumption.

Key Features

  • Red LED output: Projects a 112.5° red beam to indicate the vessel’s port side.
  • 2 NM certified range: Compliant with navigation standards for boats under 50 metres.
  • Multivolt system: Operates from 9–33V DC for flexible integration with onboard systems.
  • Low energy use: Draws under 2W, helping extend battery life on extended journeys.
  • Fully sealed housing: Rated IP67 for total resistance to water and dust intrusion.
  • Built for marine durability: UV and impact-resistant lens resists wear from sun and sea.
  • Pre-wired installation: Comes with 2.5m of marine-grade twin-core cable for simple setup.
  • International compliance: Approved to IMO Col Reg 72, USCG, ABYC C-5, RINA, and Maritime NZ standards.

A robust and efficient light for identifying your vessel’s port side.

<table border="1">
    <tbody>
        <tr>
            <th colspan="2">Product Specifications</th>
        </tr>
        <tr>
            <td>Visibility Range</td>
            <td>2 Nautical Miles</td>
        </tr>
        <tr>
            <td>Light Colour</td>
            <td>Red</td>
        </tr>
        <tr>
            <td>Beam Angle</td>
            <td>112.5°</td>
        </tr>
        <tr>
            <td>Voltage</td>
            <td>Multivolt 9–33V DC</td>
        </tr>
        <tr>
            <td>Power Consumption</td>
            <td>&lt;2W</td>
        </tr>
        <tr>
            <td>Lens Material</td>
            <td>UV-resistant acrylic</td>
        </tr>
        <tr>
            <td>Housing Colour</td>
            <td>Black</td>
        </tr>
        <tr>
            <td>Ingress Protection</td>
            <td>IP67 – Completely sealed</td>
        </tr>
        <tr>
            <td>Cable</td>
            <td>2.5m pre-wired twin-core marine cable</td>
        </tr>
        <tr>
            <td>Weight</td>
            <td>50g (including cable)</td>
        </tr>
        <tr>
            <td>Approvals</td>
            <td>IMO Col Reg 72, USCG, ABYC C-5, RINA, Maritime NZ</td>
        </tr>
    </tbody>
</table>


SKU HEL.2LT017460001
Model # 2LT017460001
UPC/EAN 9416325253181
Brand Hella
Shipping Weight 0.0500kg
Unit Of Measure each
