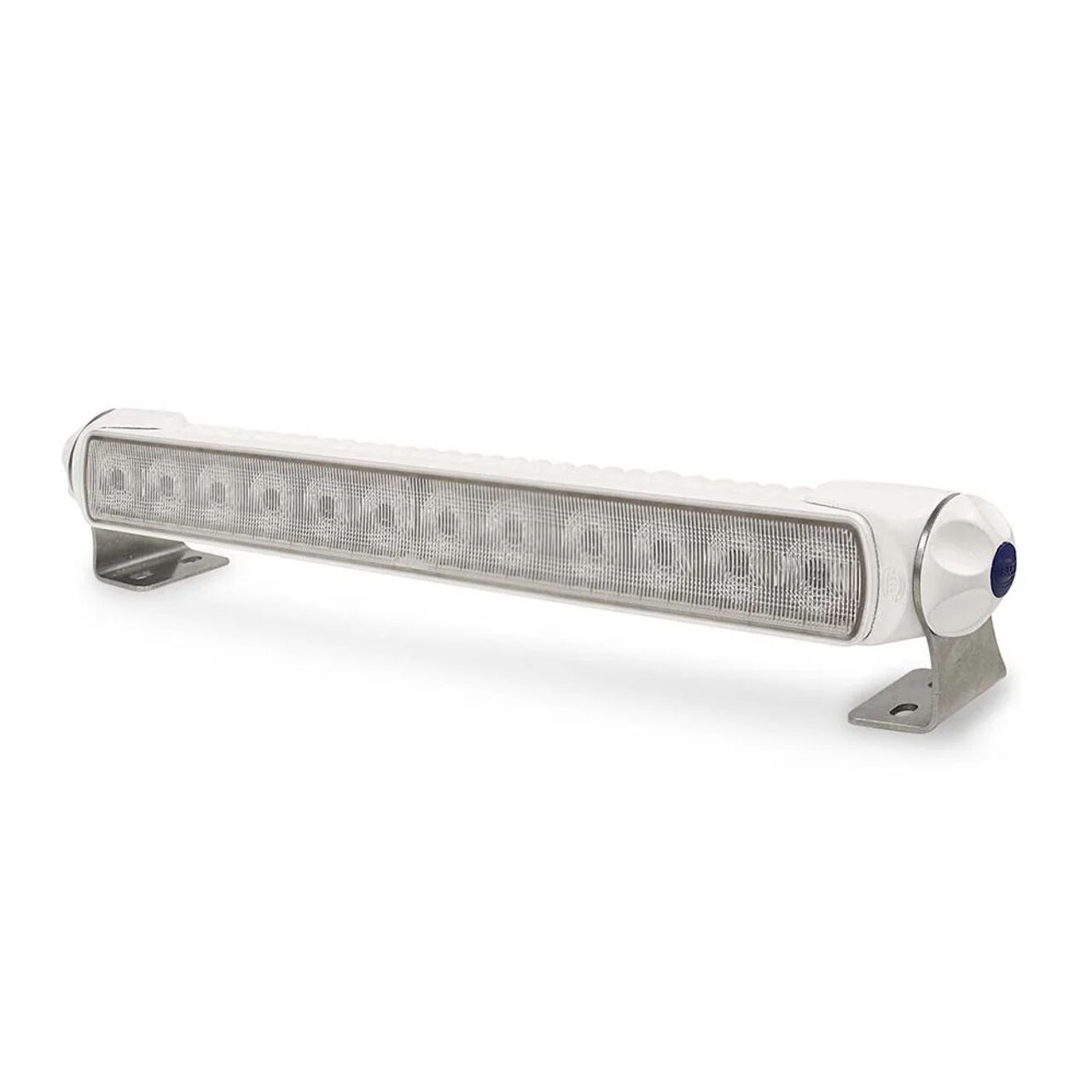

Wide-spread LED light bar for marine deck and work area illumination

The white housing variant delivers broad, even illumination across decks, cockpits, work areas and other exterior marine spaces where a wide beam pattern is required. Producing up to 2200 lumens of 5000K white light, it combines a Spread beam with a corrosion-proof thermally conductive polymer housing, heavy-duty Grilamid lens and polished 316 stainless steel mounting bracket. Multivolt™ electronics support 9–33V DC systems, while IP6K7 and IP6K9K protection supports installation in exposed marine environments.

Key Features

• Spread beam pattern: Distributes light across a wide area for deck, cockpit and general work area illumination.
• 2200 lumen output: Delivers strong 5000K white illumination for exterior marine applications.
• White housing: Provides a clean finish suited to white vessel surfaces and marine installations.
• Corrosion-proof construction: Non-metallic thermally conductive polymer housing manages heat without the corrosion concerns associated with aluminium housings.
• Marine-grade components: Heavy-duty Grilamid lens and polished 316 stainless steel mounting bracket withstand demanding marine environments.
• Completely sealed: IP6K7 and IP6K9K protection provides resistance against water ingress and high-pressure water exposure.
• Multivolt™ operation: Supports 9–33V DC electrical systems for compatibility with common 12V and 24V vessels.
• Marine cabling: Supplied with a 2.5m tinned multi-core marine cable for installation in corrosive environments.
• Made in New Zealand: Manufactured for demanding marine applications.

The wide Spread beam makes this configuration suited to applications where illuminating a larger working area is more important than projecting a concentrated long-range beam.
