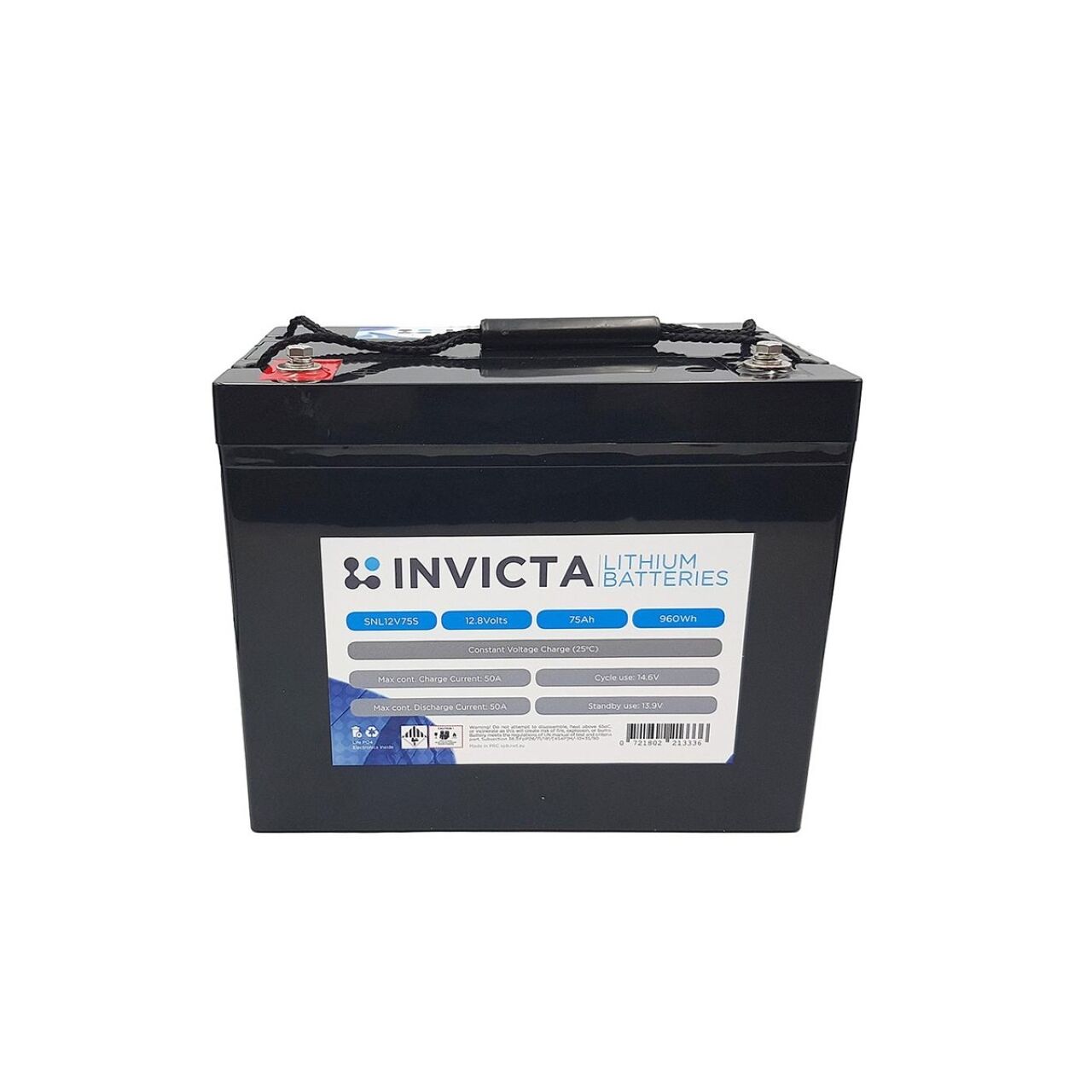

Invicta 12V75AH with 4 series functionality
High-performance 12V 75Ah LiFePO₄ battery offering extended cycle life, light weight, and fast recharge for off-grid, marine, and deep-cycle applications.
SKU: INV.SNL12V75S | MPN: SNL12V75S
SAVE $193.76 (17%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Stopped reading documents
Reliable lightweight power for demanding deep cycle applications
The Invicta 12V 75Ah Lithium battery provides a robust, long-life alternative to traditional lead-acid batteries. Designed with LiFePO₄ chemistry and an integrated battery management system (BMS), it delivers safe, stable, and efficient performance across a wide range of uses—from off-grid systems and RV setups to marine and industrial applications. Its low weight and high energy density make it ideal where performance and portability are critical.
Key Features
- Extended cycle life: Exceeds 2000 full cycles at 100% depth of discharge, significantly reducing replacement costs.
- Safe LiFePO₄ chemistry: Integrated BMS protects against overcharge, over-discharge, short circuit, and temperature extremes.
- High usable capacity: Provides up to 60% more usable energy than equivalent lead-acid batteries for longer runtime.
- Lightweight design: Weighs less than half of a comparable SLA battery, improving efficiency and mobility.
- Rapid recharge capability: Recharges quickly and efficiently for minimal downtime.
- Flat discharge curve: Delivers stable voltage output and consistent performance through the entire cycle.
- Low self-discharge: Maintains charge for extended periods when not in use.
Built for reliability and endurance, this battery ensures optimal energy delivery and minimal maintenance over its lifetime.
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 75 Ah |
| Max Charge Voltage | 14.6 ± 0.1 V |
| Standby Voltage | 13.8 ± 0.1 V |
| Cut-off Voltage | 10 V |
| Max Charge Current | 50 A |
| Recommended Charge Current | < 30 A |
| Max Discharge Current | 50 A |
| Max Pulse Discharge (3 Sec) | 150 A |
| Cycle Life (100% DoD) | > 2000 |
| Mechanical Specifications | |
| Terminal Type | M8 Insert |
| Length | 260 ± 2 mm |
| Width | 169 ± 2 mm |
| Height | 215 ± 2 mm |
| Weight | 9.8 kg |
| Environmental Specifications | |
| Operating Temperature (Charge) | 0 – 50 °C |
| Operating Temperature (Discharge) | -20 – 55 °C |
| Series / Parallel Configuration | Up to 4S or 4P |
| SKU | INV.SNL12V75S |
| Model # | SNL12V75S |
| Brand | Invicta Lithium |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.262m |
| Shipping Height | 0.217m |
| Shipping Length | 0.171m |
| Shipping Cubic | 0.009722034m3 |
| Unit Of Measure | ea |
