Reliable Deep Cycle Lithium Battery with Advanced Safety and Efficiency

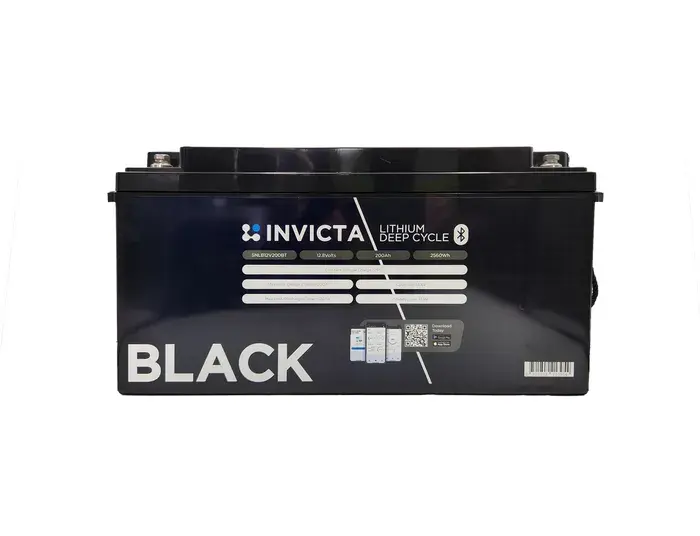

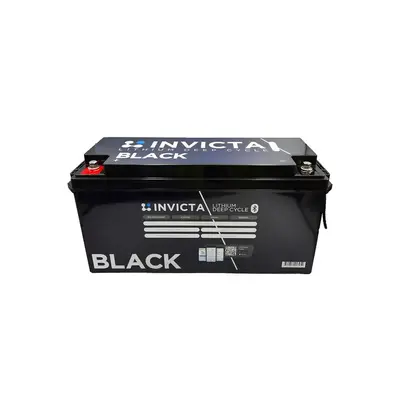

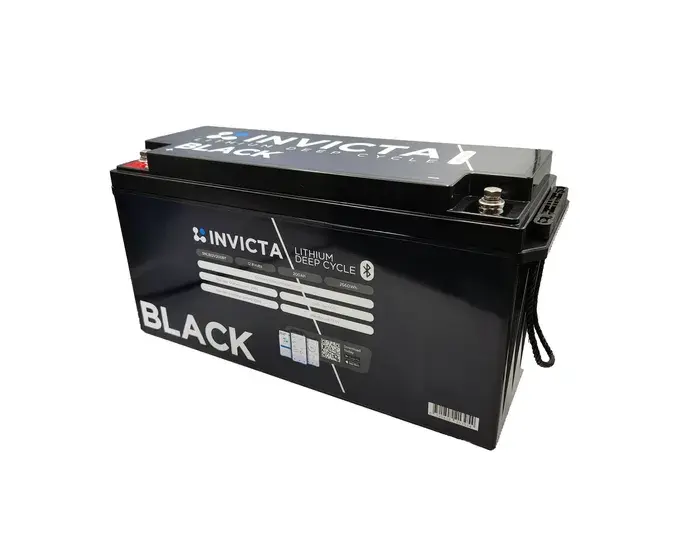

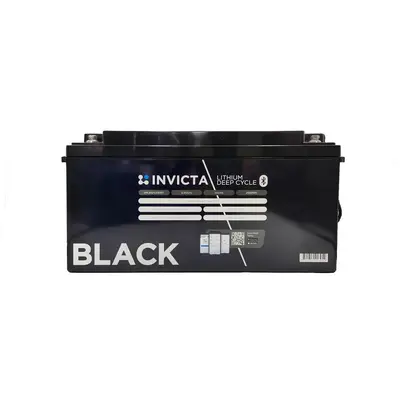

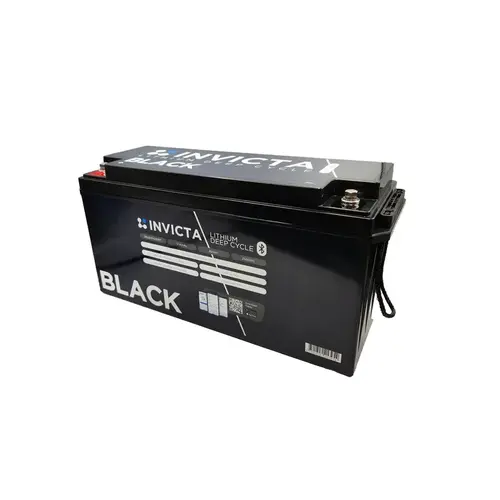

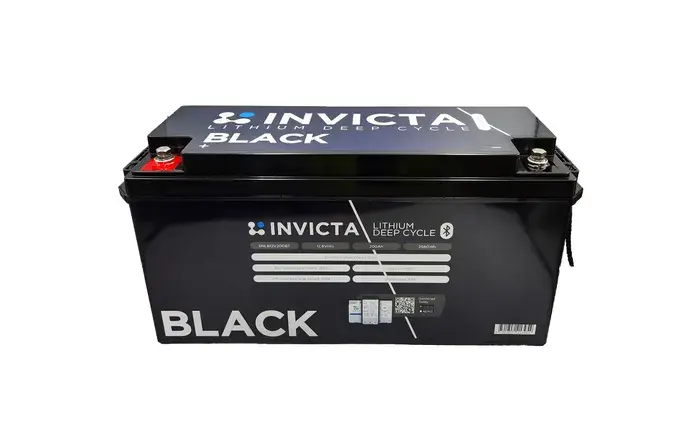

The Invicta Lithium Black series battery is designed as a drop-in replacement for lead acid units, delivering superior performance, extended cycle life, and safe operation. Built with LiFePO4 chemistry and an integrated BMS, it provides efficient deep-cycle energy storage for demanding applications while reducing weight and improving recharge times.

Key Features

  • Extended cycle life: Delivers over 3000 cycles at 100% depth of discharge, offering up to eight times the lifespan of sealed lead acid batteries.
  • Safe and stable operation: Integrated BMS protects against overcharge, over-discharge, temperature extremes, and short circuits for reliable performance.
  • Optimised capacity utilisation: Provides up to 60% more usable capacity compared to sealed lead acid, ensuring longer runtime.
  • Lightweight design: High energy density results in less than half the weight of an equivalent lead acid battery, reducing system load.
  • Fast recharge capability: Supports rapid charging to minimise downtime and ensure quicker readiness for use.
  • Flat discharge curve: Maintains consistent power delivery for longer runtime and efficient energy use.
  • Low self-discharge: Can remain idle for extended periods without significant capacity loss.
  • Bluetooth monitoring: Integrated connectivity enables real-time status checks and battery management via compatible devices.
  • Durable and compliant: IP65-rated for dust and water resistance and certified to IEC 62619 standards.

Engineered for demanding energy storage needs, this battery ensures safety, reliability, and efficiency across a wide range of applications.



Product Specifications
Nominal Voltage 12.8 V
Nominal Capacity 300 Ah
Terminal Type M8 Insert
Length 522 ± 2 mm
Width 268 ± 2 mm
Height 222 ± 2 mm
Weight 30.3 kg
Max Charge Voltage 14.6 ± 0.1 V
Standby Voltage 13.8 ± 0.1 V
Cut-off Voltage 11 V
Max Discharge Current 200 A
Max Pulse Discharge (3s) 1000 A
Max Charge Current 200 A
Recommended Charge Current < 60 A
Cycle Life (100% DoD) > 3000
Operating Temperature - Charge 0 – 45 °C
Operating Temperature - Discharge -20 – 60 °C
Max Configuration 4S / 4P
Ingress Protection IP65
Certification IEC 62619
Bluetooth Connectivity Yes
SKU INV.SNLB12V300BT
Model # SNLB12V300BT
Brand Invicta Lithium
Shipping Weight 31.0000kg
Shipping Width 0.290m
Shipping Height 0.250m
Shipping Length 0.550m
Shipping Cubic 0.039875000m3
Unit Of Measure ea
