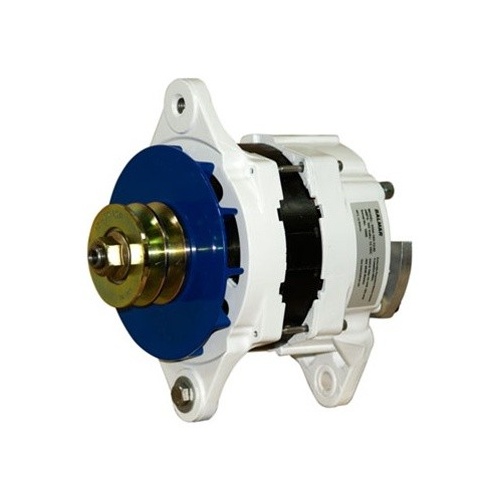

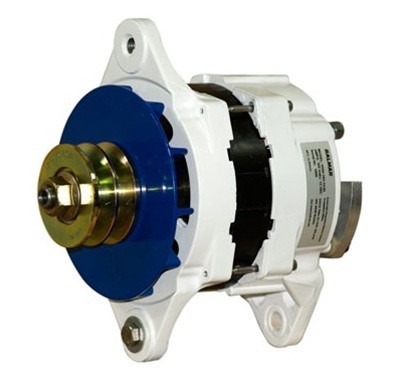

Balmar Alternator, 95 Series, 165a, 12v, SaddleMT, 4 inch, DualPul, IsoGrd

A large case 12 volt 165 amp alternator with a J180 4" dual foot mounting arrangment.

  • Availability:
  • SKU: BAL.9504-12-165-IG
  • Voltage: 12V
  • Gnd: Isol Gnd
  • Mount: 4 J180 Saddle
  • Manufacturer: Balmar
  • MPN:
  • Shipping Weight: 9.09kg
$2,747.24 inc GST

Related Products

All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

A large case 12 volt 165 amp alternator with a J180 4" dual foot mounting arrangment.

Download Data Sheet

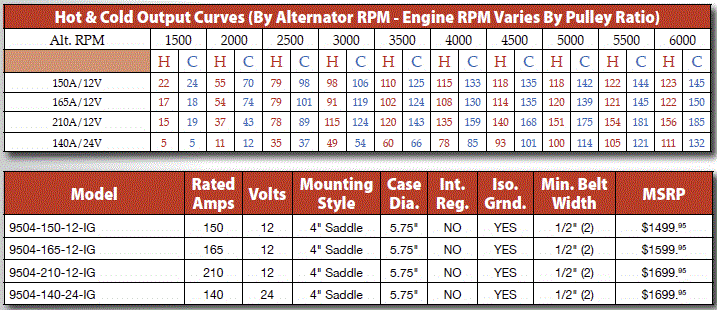

Moderately compact for its generous output curves, the 95-Series features an extra heavy duty stator winding with large gauge wire for added output at low RPM. Combine that with extra large sealed bearings, a massive .875” pulley shaft and high amperage diodes for durability and long alternator life.

The lower amperage 12 volt unit provides a higher relative output at low RPM making it suitable for higher output at near idle speeds.

The 95-Series alternator features an isolated ground and a brawny J-180 style saddle mount for plenty of resistance to twist and torque.

  • Isolated Ground
  • Bidirectional cooling fan.
  • 6,500 RPM maximum rotation speed.
  • Corrosion-resistant powdercoat finish.
  • Meets US Coast Guard Title 33 safety standards.
  • Requires external regulation.
  • 1-year limited warranty. ShWt. 20lb
Balmar 95 Series
