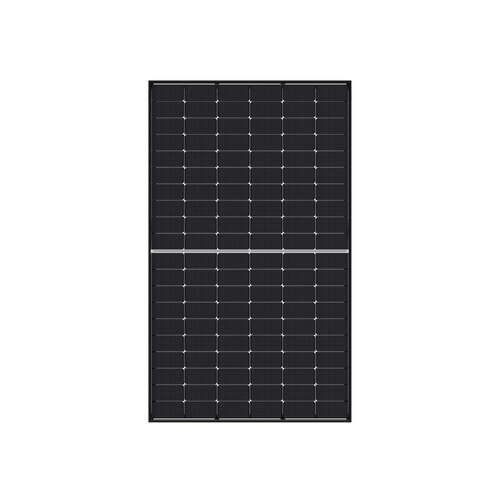

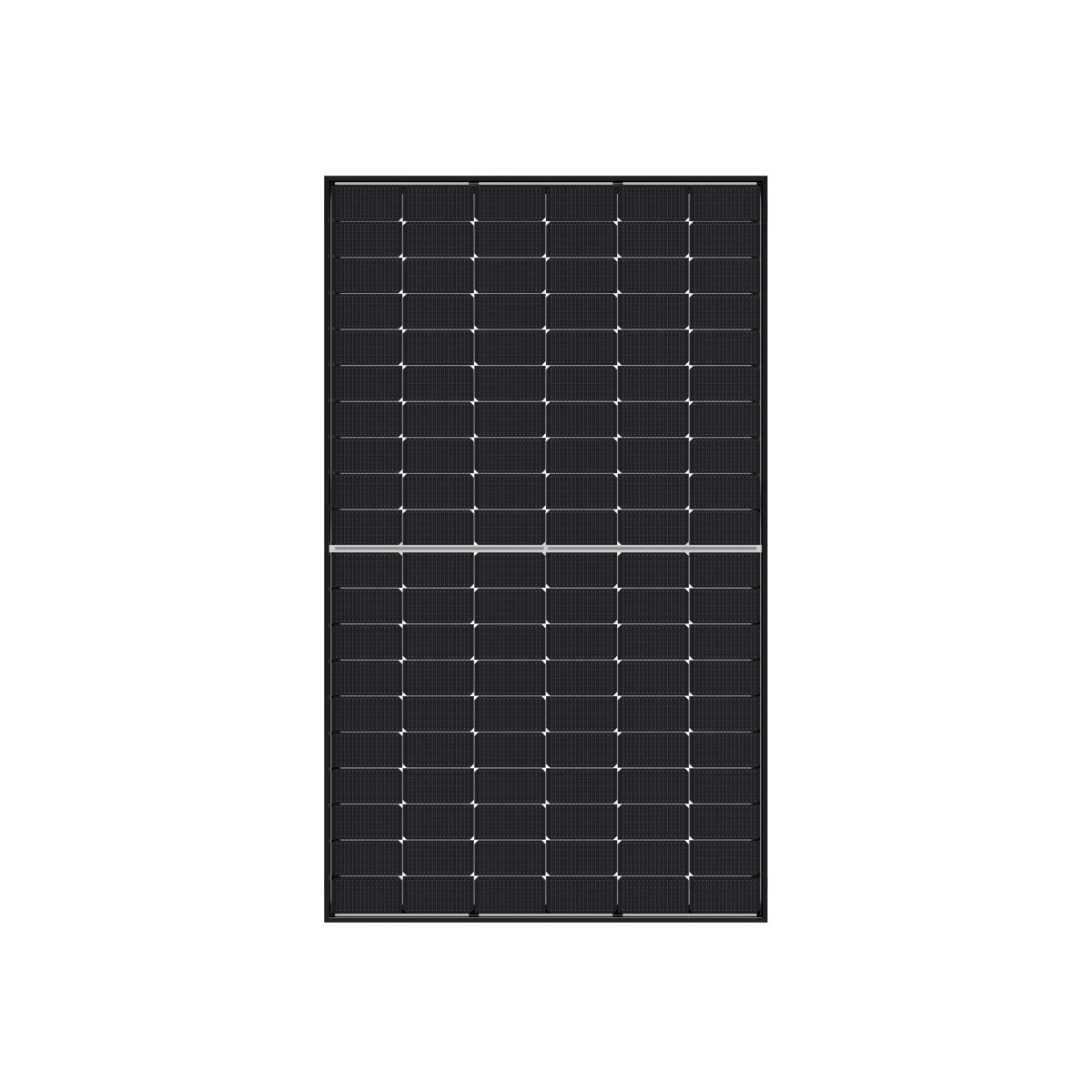

Jinko Solar Panel 510W - 24V Mono 1903x1134x30mm 120 Cell
510W N-Type solar panel with 23.83% efficiency, black frame, and TOPCon cell tech—engineered for high-output residential, commercial, and utility applications.
SKU: JIN.JKM510N-60HL4-V | MPN: JKM475N-60HL4-V
SAVE $5.13 (2%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
High-Efficiency Solar Panel with Advanced N-Type TOPCon Technology
This 510-watt N-Type solar panel delivers exceptional efficiency, durability, and power density, making it ideal for residential rooftops, commercial buildings, and large-scale installations. Built with advanced TOPCon cell technology, it ensures reduced power degradation, improved performance in low-light conditions, and long-term reliability. The 30mm black anodised frame enhances structural strength while offering a modern, sleek appearance.
Key Features
- High module efficiency: Reaches up to 23.83% efficiency for superior energy generation from limited roof space.
- TOPCon N-Type cell design: Offers better temperature performance, reduced light-induced degradation, and longer lifespan than P-Type alternatives.
- Sleek black frame finish: The 30mm anodised aluminium frame provides enhanced aesthetics and corrosion resistance.
- Strong environmental durability: Withstands 5400 Pa snow loads and 2400 Pa wind pressure for high resilience in harsh climates.
- Low annual degradation: Only 1% degradation in the first year, and just 0.4% annually over 30 years ensures long-term output.
- High PTC rating: Independently tested under PVUSA Test Conditions to confirm dependable field performance.
A powerful and reliable solar module built to deliver maximum returns across residential, commercial, and utility-scale systems.
General Specifications | |
---|---|
Model | JKM510N-60HL4-V |
Cell Type | N-Type Mono-Facial (TOPCon) |
Number of Cells | 120 (60×2) |
Dimensions | 1906 × 1134 × 30 mm |
Weight | 22.5 kg |
Frame | 30 mm Black Anodised Aluminium |
Front Glass | 3.2 mm Tempered, Low Iron, Anti-Reflective |
Junction Box | IP68 Rated |
Connector Type | JK03M/JK03M2 or MC4-EVO2 |
Output Cables | 4.0 mm²; (+): 400 mm, (−): 200 mm or customised |
Electrical Specifications (STC) | |
Maximum Power (Pmax) | 510 W |
Module Efficiency | 23.83% |
Open-Circuit Voltage (Voc) | 44.66 V |
Short-Circuit Current (Isc) | 14.41 A |
Maximum Power Voltage (Vmp) | 37.32 V |
Maximum Power Current (Imp) | 13.80 A |
Power Tolerance | −5 W to +15 W |
Temperature Ratings | |
Operating Temperature | −40°C to +70°C |
Temp. Coefficient (Pmax) | −0.29 %/°C |
Temp. Coefficient (Voc) | −0.25 %/°C |
Temp. Coefficient (Isc) | +0.045 %/°C |
Mechanical & Environmental | |
Max System Voltage | 1500 VDC (IEC) |
Max Series Fuse Rating | 25 A |
Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
IEC Fire Classification | Class C |
Warranty & Certifications | |
Product Warranty | 25 Years |
Performance Warranty | 30 Years (1% Year 1, 0.4% annual thereafter) |
Certifications | IEC61215:2021, IEC61730:2023, ISO9001, ISO14001, ISO45001 |
SKU | JIN.JKM510N-60HL4-V |
Model # | JKM475N-60HL4-V |
UPC/EAN | 2000101036777 |
Brand | Jinko |
Shipping Weight | 25.0000kg |
Shipping Width | 0.050m |
Shipping Height | 1.134m |
Shipping Length | 1.906m |
Shipping Cubic | 0.108070200m3 |
Unit Of Measure | ea |
Warranty Information (From Install)
Commercial Use - 25 Years
Domestic Use 25 - Years
Warranty Method - Contact Manufacturer
Warranty Period - 25 Years
