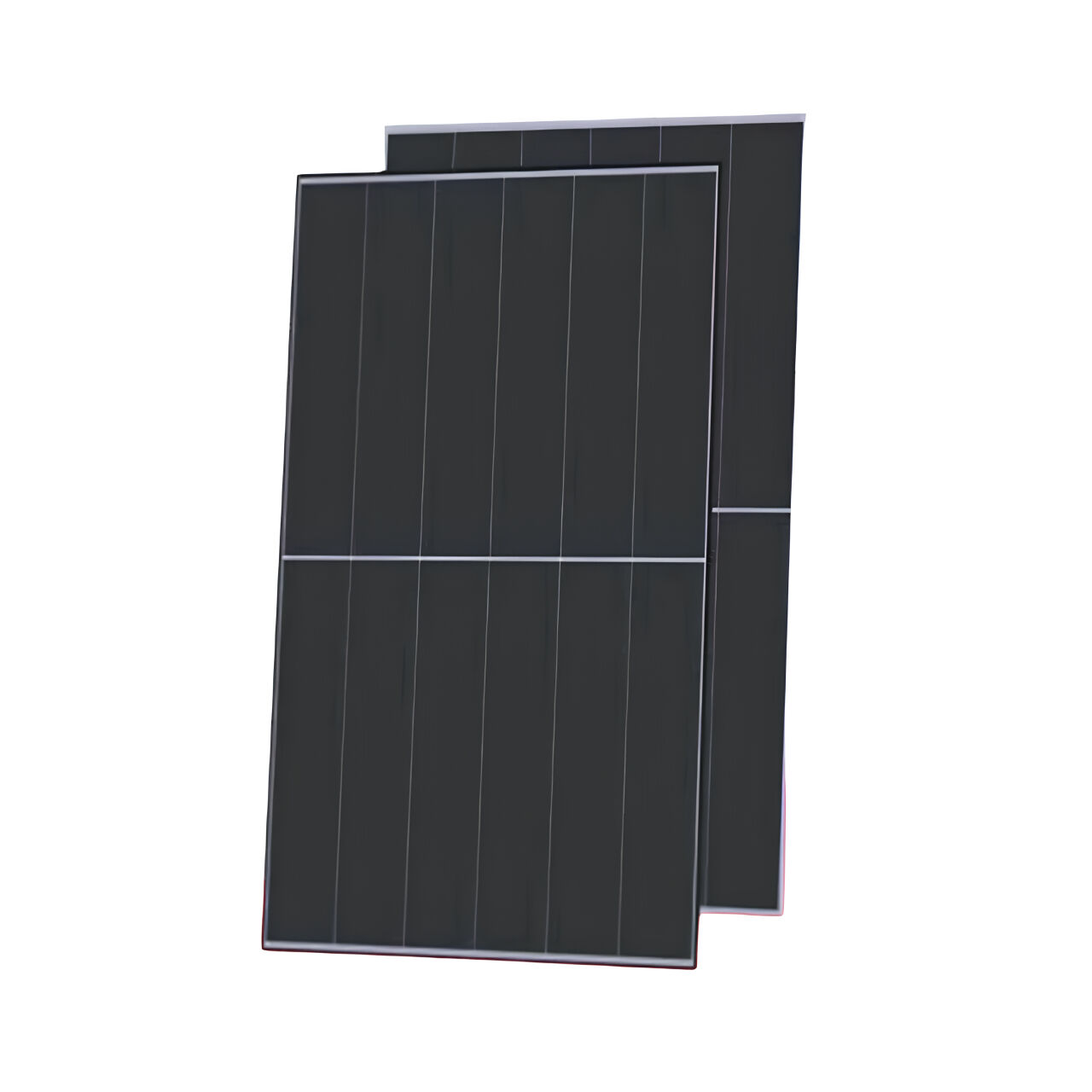

N-Type Dual-Glass Solar Module for Residential and Commercial PV Systems

The Jinko Solar Tiger Neo III 475 W module uses N-type monocrystalline TOPCon cell technology with a mono-facial dual-glass construction for residential, commercial and other photovoltaic installations. It delivers 475 W maximum power with 23.77% module efficiency under STC, while the anti-reflection front glass and enhanced cell structure support energy generation in low-light conditions. The module incorporates an anodized aluminium alloy frame, IP68-rated junction box and heat-strengthened rear glass, with certified static test loads of 5400 Pa on the front and 2400 Pa on the rear.

Key Features

  • N-Type TOPCon Technology: N-type monocrystalline cell construction with enhanced TOPCon technology for improved front-side power generation.
  • 475 W Output: Delivers 475 W maximum power with 23.77% module efficiency under Standard Test Conditions.
  • Dual-Glass Construction: 2.0 mm anti-reflection coated front glass paired with 2.0 mm heat-strengthened rear glass.
  • Low-Light Performance: Enhanced cell structure supports power generation under reduced-light conditions.
  • Temperature Performance: Maximum power temperature coefficient of -0.26%/°C.
  • Mechanical Load Capability: Certified for maximum static test loads of 5400 Pa from the front and 2400 Pa from the rear.
  • Weather-Resistant Construction: Anodized aluminium alloy frame and IP68-rated junction box support long-term outdoor installation.
  • 1500 VDC System Compatibility: Suitable for photovoltaic systems operating at up to 1500 VDC, with a maximum series fuse rating of 30 A.
  • Long-Term Power Warranty: 25-year product warranty and 30-year linear power warranty, with 1% first-year degradation and 0.35% annual degradation over 30 years.
  • International Standards: Module documentation lists IEC 61215:2021 and IEC 61730:2023, alongside ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system certifications.

Combining N-type TOPCon cells with dual-glass construction supports efficient solar generation and long-term durability across fixed photovoltaic installations.

Maximum Power 475 W
Module Efficiency 23.77%
Maximum Power Voltage 31.11 V
Maximum Power Current 15.27 A
Open-Circuit Voltage 36.42 V
Short-Circuit Current 15.86 A
Cell Type N-Type Monocrystalline
Number of Cells 192 (48 × 4)
Dimensions 1762 × 1134 × 30 mm
Weight 24.4 kg
Front Glass 2.0 mm, anti-reflection coating
Back Glass 2.0 mm, heat-strengthened glass
Frame Anodized aluminium alloy
Junction Box IP68 rated
Protection Class Class II
IEC Fire Type Class C
Output Cable Size ≥4.0 mm²
Output Cable Length (+) 600 mm, (-) 400 mm or customised length
Maximum System Voltage 1500 VDC (IEC)
Maximum Series Fuse Rating 30 A
Operating Temperature -40°C to +70°C
Module Maximum Temperature (T98) 70°C
Temperature Coefficient of Pmax -0.26%/°C
Temperature Coefficient of Voc -0.24%/°C
Temperature Coefficient of Isc 0.046%/°C
Power Sorting -5 W to +15 W
Maximum Front Static Test Load 5400 Pa
Maximum Rear Static Test Load 2400 Pa
Product Warranty 25 years
Linear Power Warranty 30 years
First-Year Degradation 1%
Annual Degradation 0.35% over 30 years
Standards IEC 61215:2021, IEC 61730:2023
Country of Manufacture China
SKU JIN.JKM475N-48QL6-DV
Model # JKM475N-48QL6-DV
Brand Jinko
Shipping Weight 25.0000kg
Shipping Width 1.762m
Shipping Height 0.300m
Shipping Length 1.134m
Shipping Cubic 0.599432400m3
Unit Of Measure ea
