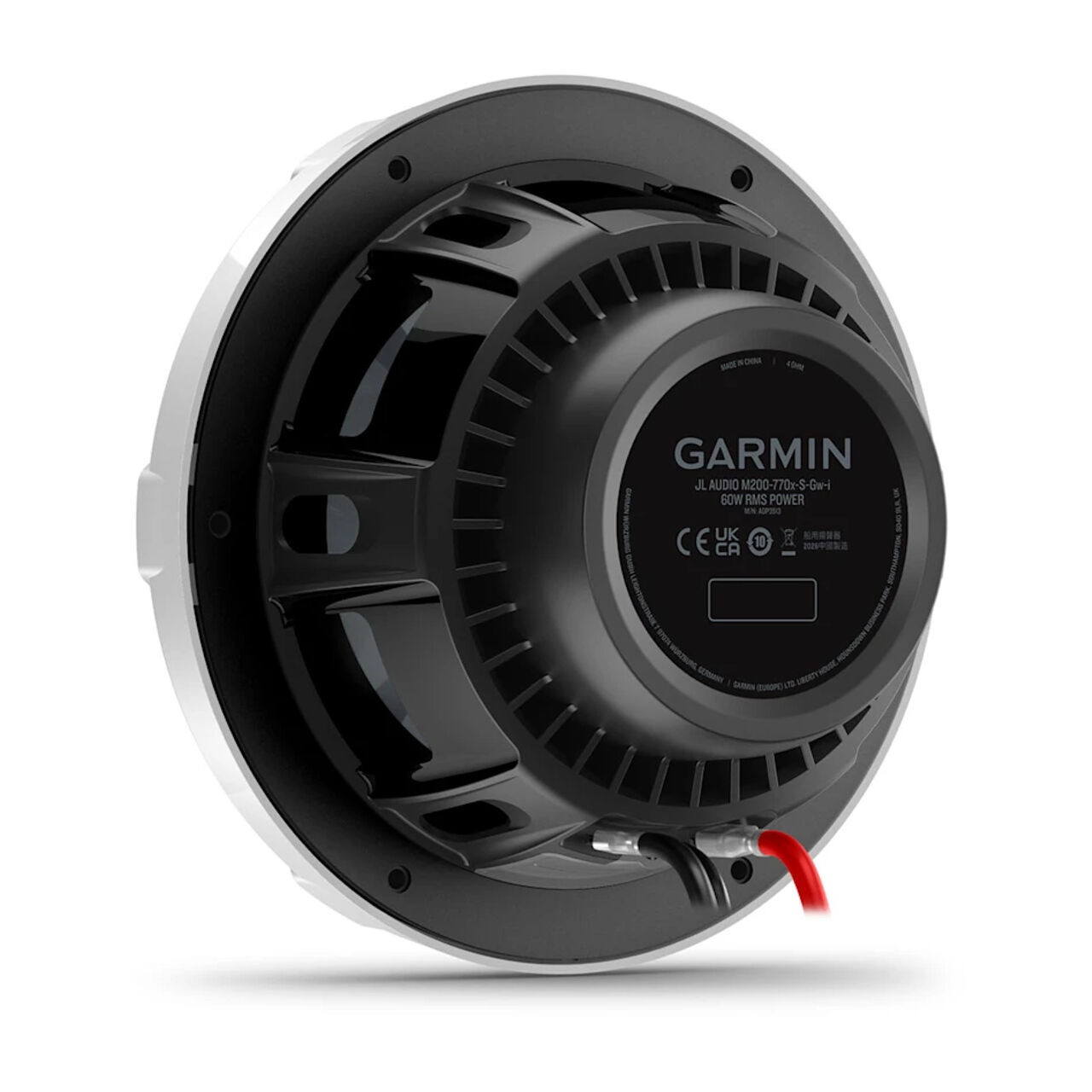

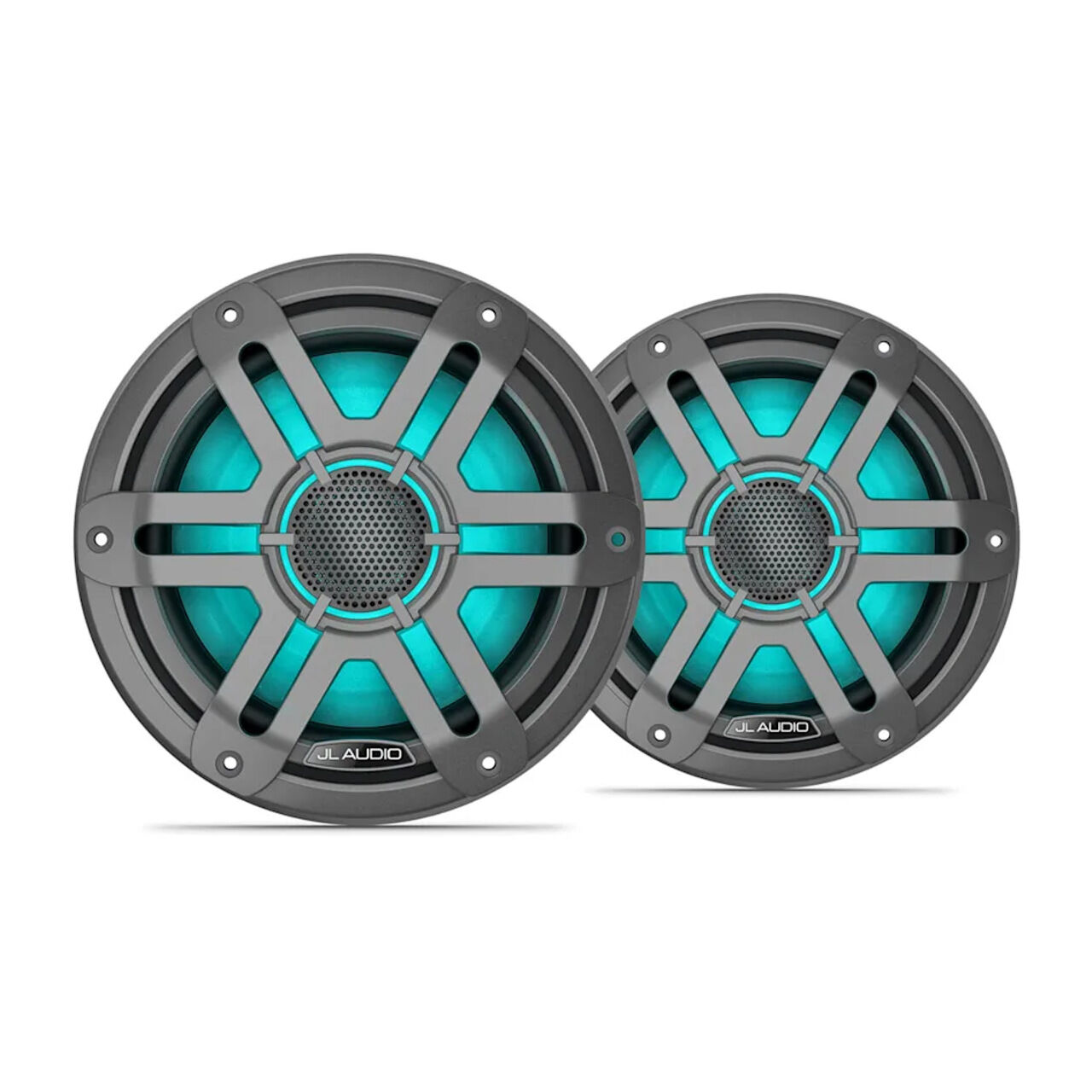

Marine Coaxial Speakers with LED Lighting for Onboard Audio Systems

The JL Audio M200 7.7" Marine Speakers deliver full-range audio for boats and other marine vessels, combining a coaxial speaker configuration with integrated LED lighting and a Grey Sport Grille. Marine-grade construction supports installation in areas exposed to moisture, salt and demanding outdoor conditions, while the mica-filled polypropylene woofer cone and silk dome tweeter provide balanced sound reproduction across the listening range. Integrated LED lighting adds customisable illumination to onboard entertainment areas, making these speakers suitable for cockpit, deck and cabin audio installations.

Key Features

  • Marine-Grade Construction: Built with materials and components suited to demanding marine environments and exposure to moisture and salt.
  • Coaxial Speaker Configuration: Combines the woofer and tweeter into a compact full-range speaker arrangement.
  • Mica-Filled Polypropylene Woofer: Injection-moulded cone construction supports durability and consistent audio reproduction.
  • Silk Dome Tweeter: Provides smooth and clear high-frequency reproduction.
  • Integrated LED Lighting: Built-in illumination adds customisable lighting to marine entertainment installations.
  • Grey Sport Grille: Supplied with a Grey Sport Grille for integration with a range of vessel interiors and finishes.
  • IPX6 Water Resistance: Provides protection against powerful water jets for exposed marine installations.
  • Marine Audio Application: Suitable for cockpits, decks, cabins and other onboard entertainment areas.

Marine-resistant construction, integrated lighting and full-range audio make these speakers suitable for upgrading entertainment systems across recreational and commercial vessels.

Speaker Size 7.7"
Speaker Type Coaxial
Grille Grey Sport Grille
Continuous Power Handling 60 W RMS
Recommended Amplifier Power 40–120 W RMS per channel
Nominal Impedance 4 Ω
Sensitivity 88 dB SPL @ 1 W / 1 m
Frequency Response 45 Hz–20 kHz (±3 dB)
Tweeter 1" (25 mm) silk dome
Woofer Cone Material Injection-moulded mica-filled polypropylene
Water Resistance IPX6
LED Lighting Integrated
LED Supply Voltage 10–14.4 V DC
Maximum LED Load Current 140 mA @ 14.4 V DC
Overall Diameter 196 mm (7.70")
Overall Depth 117 mm (4.60")
Mounting Depth 78 mm (3.07")
Mounting Hole Diameter 159 mm (6.25")
Compass-Safe Distance 205 cm (81")
Warranty 3 years
SKU GAR.010-04757-01
Model # 010-04757-01
UPC/EAN 753759376857
Brand JL Audio
Shipping Weight 3.0000kg
Shipping Width 0.415m
Shipping Height 0.149m
Shipping Length 0.239m
Shipping Cubic 0.014778565m3
Unit Of Measure ea
