Marine Coaxial Speakers with LED Lighting for Onboard Audio Systems

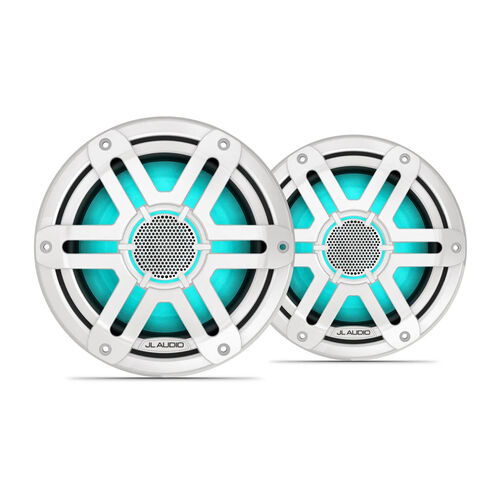

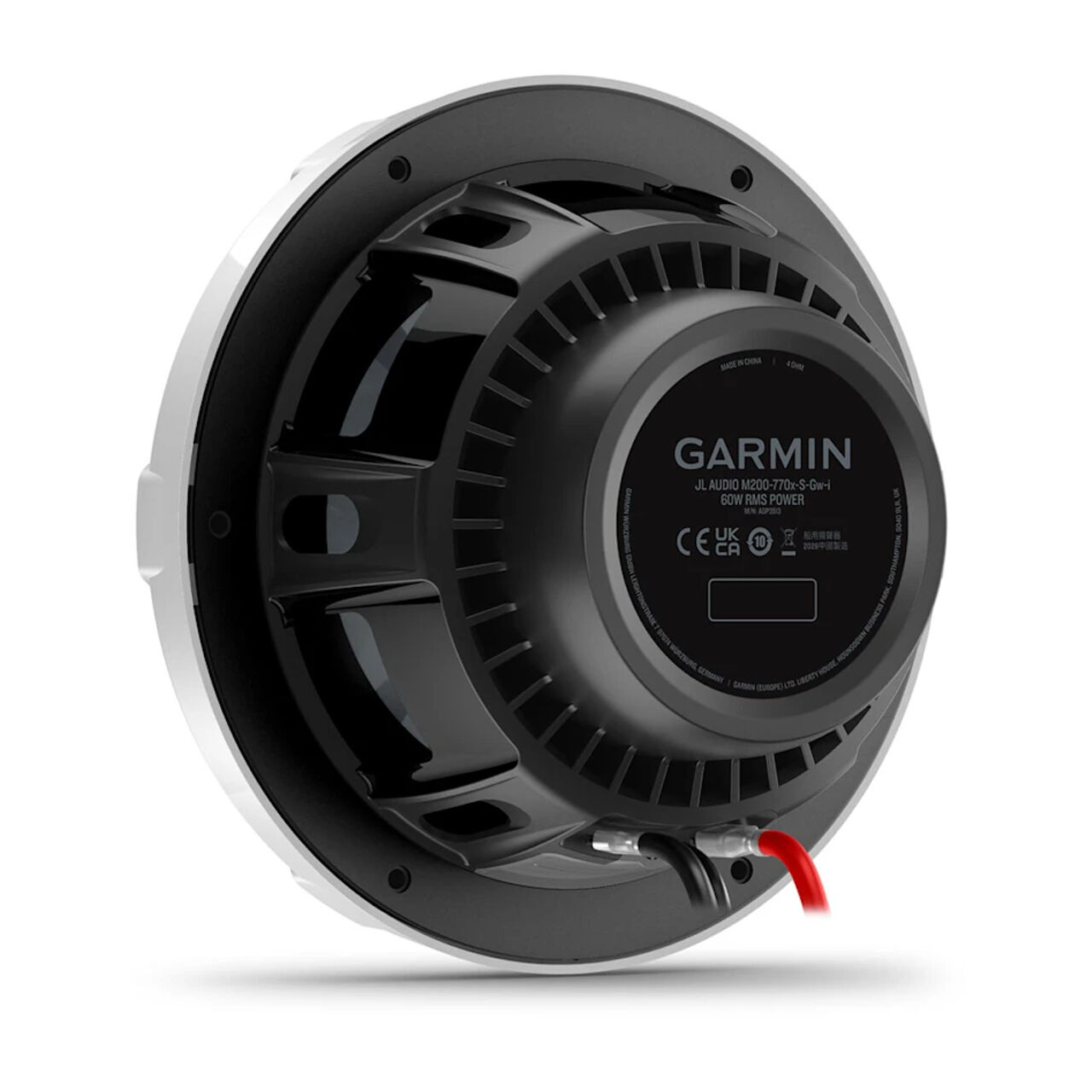

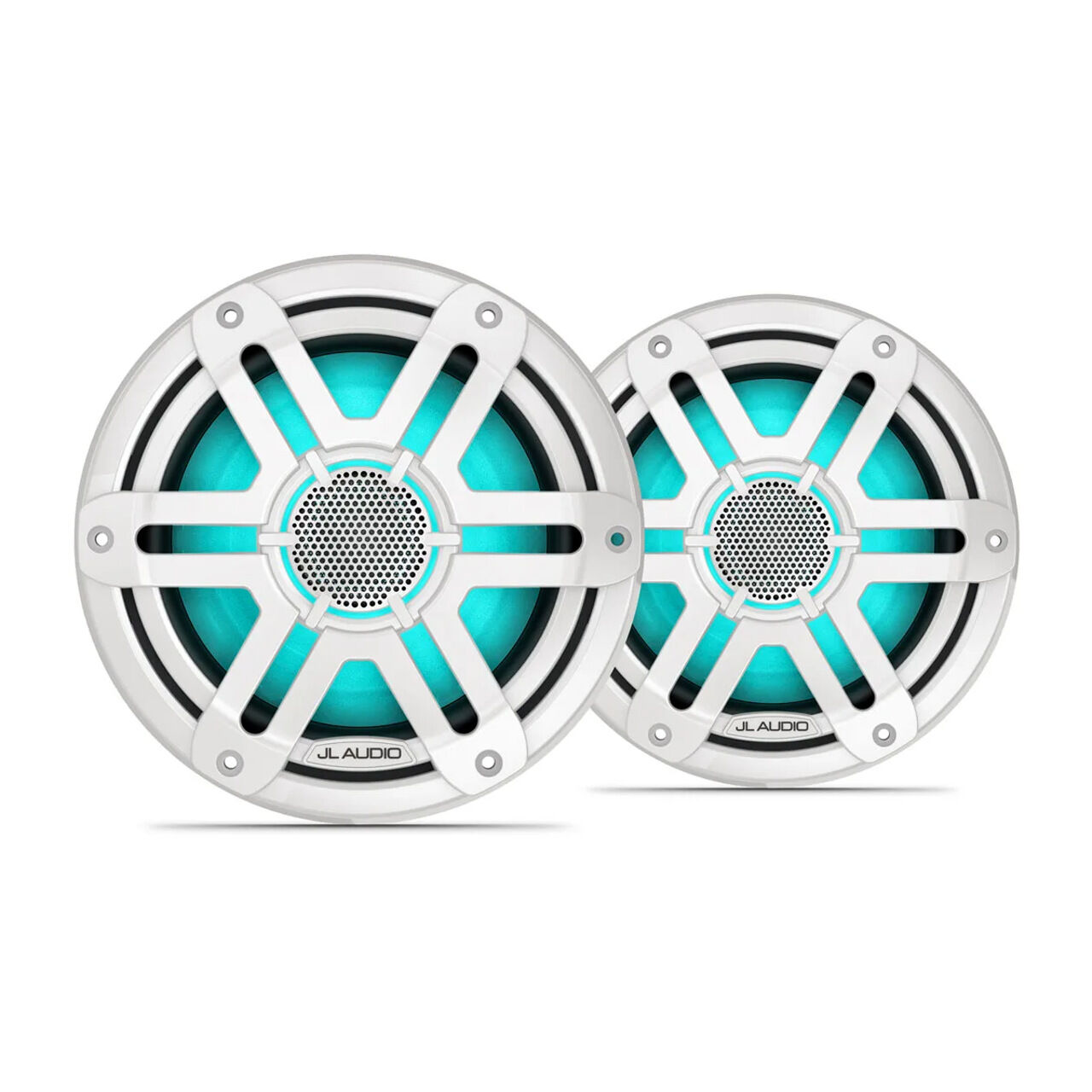

The JL Audio M200 Marine Speakers deliver full-range audio for boats and other marine vessels, combining a 7.7" coaxial speaker design with integrated LED lighting and a White Sport Grille. Marine-grade construction helps withstand exposure to moisture, salt and demanding outdoor conditions, while the mica-filled polypropylene woofer cone and silk dome tweeter provide clear, balanced sound across the listening range. The integrated LED system adds customisable illumination to onboard entertainment areas, making these speakers suitable for cockpit, deck and cabin audio installations.

Key Features

  • Marine-Grade Construction: Built for use in marine environments with materials and components selected to withstand exposure to moisture and salt.
  • Coaxial Speaker Configuration: Combines the woofer and tweeter into a compact full-range speaker for straightforward marine installation.
  • Mica-Filled Polypropylene Woofer: Injection-moulded cone construction provides durability and consistent audio performance in marine applications.
  • Silk Dome Tweeter: Delivers clear and smooth high-frequency reproduction.
  • Integrated LED Lighting: Built-in illumination adds customisable lighting to onboard entertainment areas.
  • White Sport Grille: Supplied with a White Sport Grille for a clean marine installation.
  • IPX6 Water Resistance: Suitable for locations exposed to water spray and demanding marine conditions.
  • Marine Audio Application: Suitable for cockpits, decks, cabins and other onboard entertainment areas.

Marine-resistant construction and integrated lighting make these speakers a practical choice for upgrading entertainment systems aboard recreational and commercial vessels.

Speaker Size 7.7"
Speaker Type Coaxial
Grille White Sport Grille
Continuous Power Handling 60 W RMS
Recommended Amplifier Power 40–120 W RMS per channel
Nominal Impedance 4 Ω
Sensitivity 88 dB SPL @ 1 W / 1 m
Frequency Response 45 Hz–20 kHz (±3 dB)
Tweeter 1" (25 mm) silk dome
Woofer Cone Material Injection-moulded mica-filled polypropylene
Water Resistance IPX6
LED Lighting Integrated
LED Supply Voltage 10–14.4 V DC
Maximum LED Load Current 140 mA @ 14.4 V DC
Overall Diameter 196 mm (7.70")
Overall Depth 117 mm (4.60")
Mounting Depth 78 mm (3.07")
Mounting Hole Diameter 159 mm (6.25")
Compass-Safe Distance 205 cm (81")
Warranty 3 years
SKU GAR.010-04757-00
Model # 010-04757-00
UPC/EAN 753759376840
Brand JL Audio
Shipping Weight 3.0000kg
Shipping Width 0.415m
Shipping Height 0.149m
Shipping Length 0.239m
Shipping Cubic 0.014778565m3
Unit Of Measure ea
