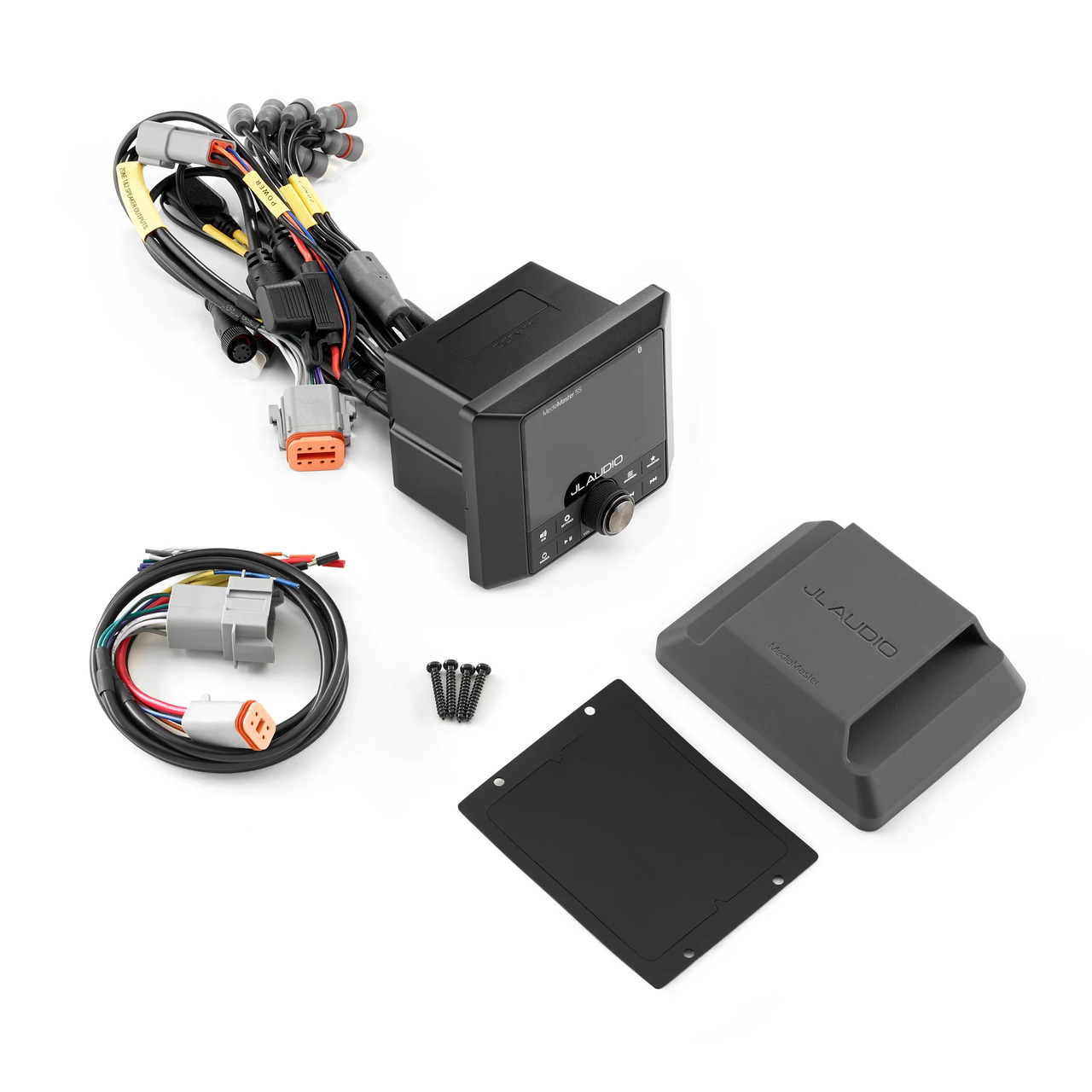

JL Audio MediaMaster 55 MM55 Weatherproof Source Unit with Full-Color LCD Display
Experience high-fidelity sound and rugged durability with this compact marine audio unit, offering versatile media options, Bluetooth streaming, and customisable audio control for your boat
SKU: GAR.010-03365-00 | MPN: 010-03365-00
SAVE $63.66 (9%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Premium, Compact Marine Source unit with High-fidelity sound, Rugged design, and Versatile media options for an Exceptional Audio Experience on the water
The JL Audio MediaMaster 55 is a rugged, compact marine source unit that delivers high-fidelity sound and advanced audio features for your maritime adventures. With a water-resistant (IP67-rated) design, it boasts a 2.8-inch full-color LCD and an intuitive, backlit interface for easy operation. Enjoy a variety of media options, including global radio tuners, USB input, AUX, and Bluetooth streaming. The 4-channel amplifier delivers 100 watts of power (25 watts RMS x 4), and there are nine channels of high-quality preamp outputs for customizable audio control across three separate zones. It also features NMEA 2000 compatibility, making it ideal for integration with multifunction displays.
Features
- Rugged Design: IP67-rated, water-resistant with sealed buttons for real-world marine duty.

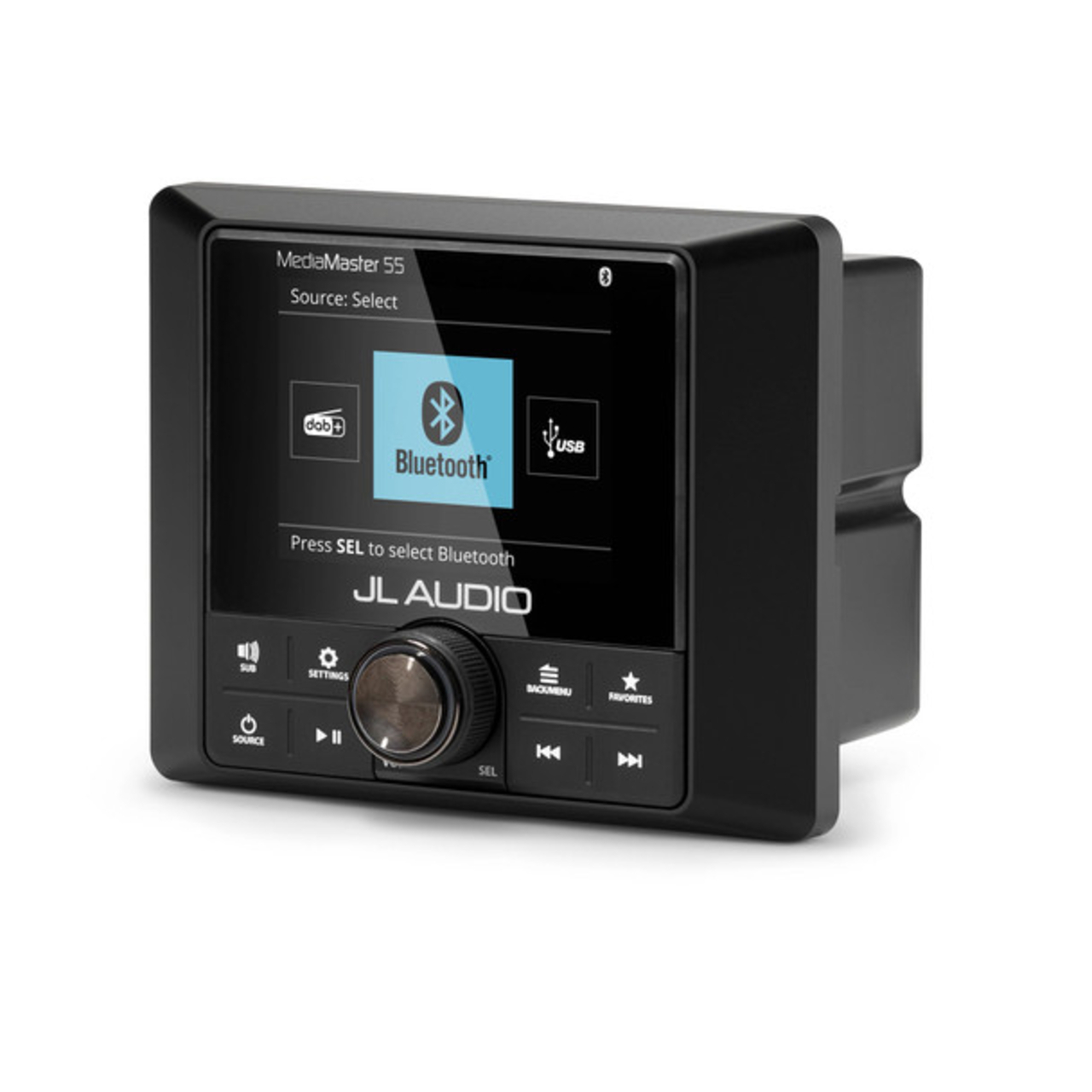

- Full-Color LCD: 2.8-inch, easy-to-read display with high contrast and backlit controls.
- Comprehensive Audio Control: Nine preamp output channels, independent zone controls, volume, tone adjustments, and customisable zone names.
- Built-In Amplifier: 100 watts of sound (25 watts x 4) for clear audio.
- Media Options: Digital AM/FM radio, DAB+ (Europe), USB, AUX, and Bluetooth streaming with Qualcomm® aptX™ audio codec for excellent sound quality.
- NMEA 2000 Certified: Network integration for use with multifunction displays.
This compact yet powerful unit is designed to meet the demands of modern marine audio, offering both durability and exceptional performance.
Product Specifications | |
---|---|
Input Operating Voltage | 10 - 16 VDC |
Standby Current Draw | 100 mA |
Operating Current Draw | 15 A |
Recommended Fuse Value | 15 A |
Remote Turn-on Capacity | 500 mA (max) |
Operating Temperature Range | -4°F to +149°F (-20°C to +65°C) |
Display Size / Type | 2.8" / TFT LCD backlighted |
Display Resolution | 320 x 240 |
Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
Output Zones | Relative, Absolute, Fixed or Off |
Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed) |
SKU | GAR.010-03365-00 |
Model # | 010-03365-00 |
Brand | JL Audio |
Shipping Weight | 2.0000kg |
Shipping Width | 0.118m |
Shipping Height | 0.093m |
Shipping Length | 0.095m |
Shipping Cubic | 0.001042530m3 |
