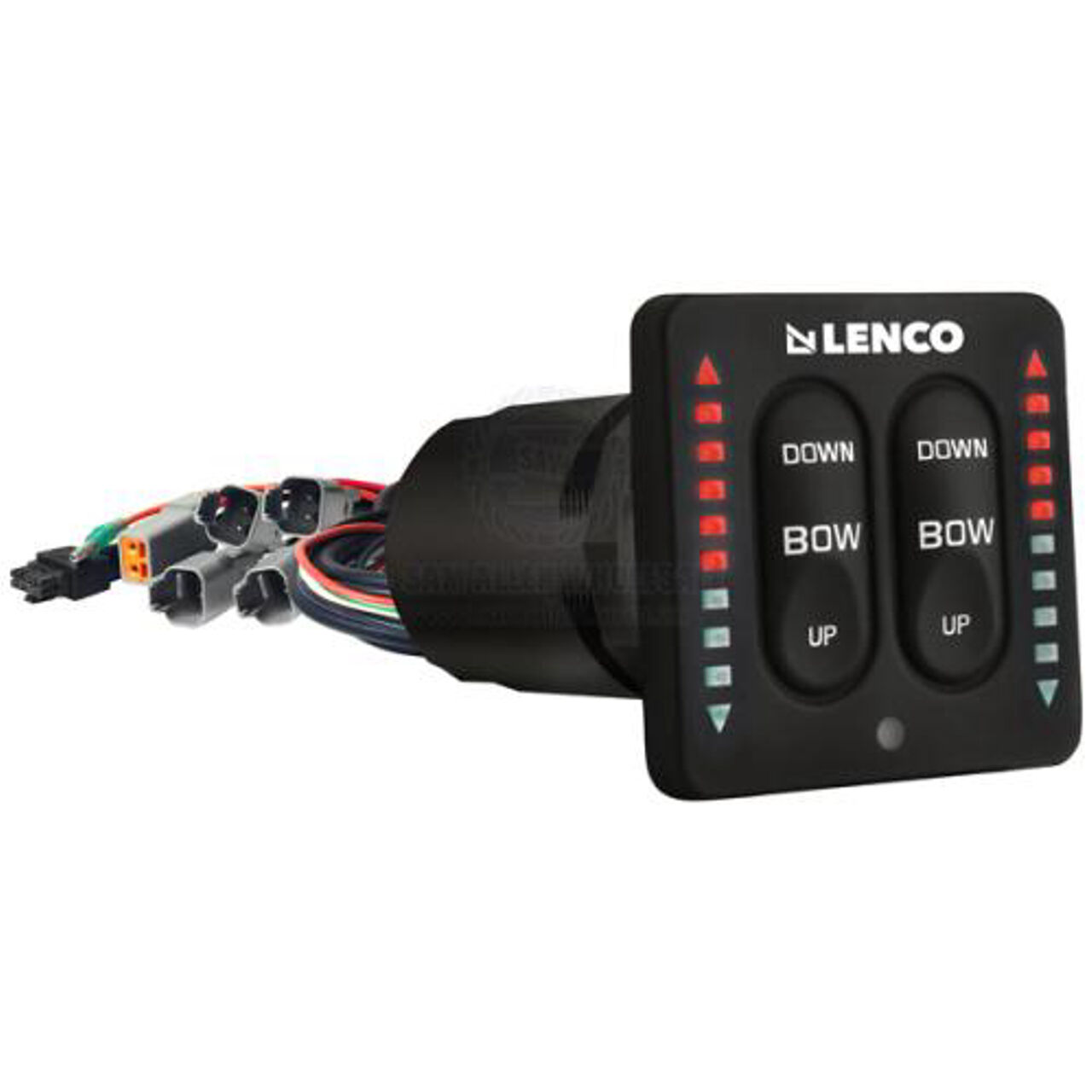

Integrated trim tab control with precise LED position indication

Control dual-actuator trim tab systems from a compact helm-mounted keypad with integrated electronics and real-time position feedback. Two high-intensity LED displays indicate the position of each trim tab, while built-in auto retract returns the tabs when power is removed. A backlit keypad, automatic light-sensing photo eye and waterproof Deutsch connectors support convenient operation and installation in marine environments.

Key Features

• Dual actuator compatibility: Suits Lenco plate kits fitted with dual actuators per trim tab.
• LED position indicators: Two high-intensity LED displays provide continuous visual indication of trim tab position.
• Built-in auto retract: Automatically retracts the trim tabs when power is removed from the switch.
• Integrated control box: All-in-one configuration incorporates the control electronics into the switch assembly.
• Instant response: Provides immediate trim tab actuation from the helm-mounted keypad.
• Waterproof connections: Self-contained keypad uses waterproof Plug & Play Deutsch connectors for marine installation.
• Automatic display adjustment: Integrated photo eye optimises LED visibility according to surrounding light conditions.
• Backlit keypad: Improves visibility and operation during low-light and nighttime conditions.
• Self-check function: Performs a system check at power-up and uses the LED indicators to identify actuator connection faults.
• Low-profile installation: Compact keypad requires a 52.4 mm mounting cutout and provides a neat helm installation.
• 12 V / 24 V compatibility: Supports both 12 V and 24 V electrical systems.
• CE certified: Meets applicable CE compliance requirements.

Integrated controls and position feedback provide a convenient way to manage dual-actuator trim tab systems directly from the helm. The compact keypad combines operation, indication and control electronics into a single installation.
