Now approved by Telstra, Optus and Vodafone

*Note: This device can ONLY be connected with a 12V auxiliary power outlet. This product enables the ROAM R41 to be run from 24V vehicles.

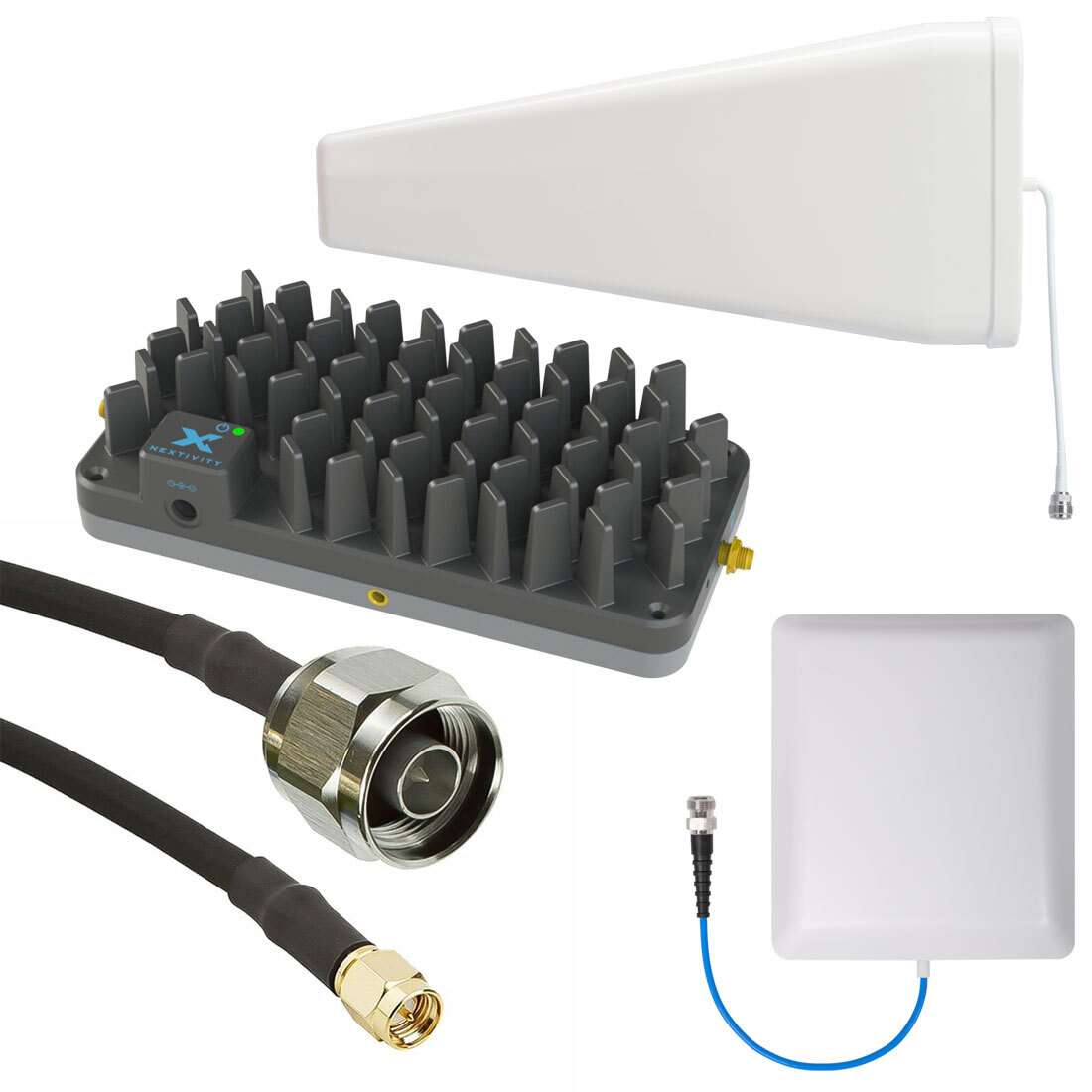

ROAM R41 boasts enterprise-grade performance combined with a user-friendly installation design, making it incredibly easy to set up and power on. This compact solution keeps you connected wherever you roam. Its low-profile design enables discreet installation under any seat, while its rugged frame ensures durability, enhancing both productivity and safety for individuals and mobile devices alike.

Equipped with the cutting-edge 4th generation Nextivity IntelliBoost chip, ROAM R41 features advanced technology utilized in our enterprise cellular coverage solutions. This chip delivers unparalleled signal gain, guaranteeing that you can always make calls, send texts, and enjoy your favourite music.

Setting up ROAM R41 is a breeze with its plug-and-play operation and it is the ideal product to boost and distribute a 3G/4G mobile signal in your caravan.

FEATURES:

  • Ideal for boosting mobile signal in caravans
  • Support for 3G, 4G and 5G DSS*
  • Suitable replacement for GO G31 Mobile
  • Supports 700L/850/900/1800/2100/2600 + Band 20 & 26
  • The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signals
  • Ease of installation with plug-and-play operation
  • Carrier switchable between Telstra, Optus or Vodafone (Optus and Vodafone support due early October – can be performed via WAVE App)

*Supports 5G DSS on Telstra, Optus and Vodafone
This is a type of 5G that layers both 4G and 5G on top of each other sharing the same frequency.
The WAVE App will not display 5G is being boosted, but your handset will have boosted 5G signal and a 5G icon.
May not be available in all areas on all bands.



Bands

Bands

Downlink (MHz)

Uplink (MHz)

Max. Relay BW (MHz)

1 2110-2170 1920-1980 20
3 1805-1880 1710-1785 20
5 869-894 824-849 20
7 2620-2690 2500-2570 20
8 925-960 880-915 15
20 791-821 832-862 20
26 859-894 814-849 20
28L 758-788 703-733 20
Australian Networks Telstra, Optus & Vodafone

Specifications

Frequency Bands 1/3/5/7/8/20/26/28L
Relay Channel Bandwidths (MHz) 5/10/15/20
Networks 3G/4G/5G
Network Protocols WCDMA/LTE/DSS
Network Selection Automatically (MyWave App set to “Following”)
Configured to authorized operator PLMN-IDs
Duplex Modes FDD
# of Relay Bands 1MHz max.
Relay Bandwidth  20MHz max.
Output Downlink Power (All Bands)  0dBm max
Output Uplink Power (Bands 5/8/20/26/28L)  22dBm max.
Output Uplink Power (Bands 1/3/7)  24dBm max.
System Gain 100dBm max.
Enterprise-Grade Echo Cancellation 30dB min.
Return Loss (dB typ.) -8dB typ.

Interface

Donor RF Connector SMA (f)
Server RF Connector SMA (f)
DC Input 5.5 x 2.5 mm (f) Barrel
Device Setup Bluetooth for WAVE App
Power & System Status Bi-color LED (Green/Red)
Factory Debug only USB 2.0 Micro-B
System Management & SW Updates WAVE App for iOS 11.0 or later
WAVE App for Android
Band Selection MyWAVE App for iOS 11.0 or later
MyWave App for Android

Power Supply

Power Consumption (W) max. 18
Input Voltage (VDC max.) 12
Input Current (A max.) 1.5
Power Supply Plug Automobile Auxiliary Power
Power Supply Cable 1mm2 | 18 AWG
Power Supply Cable Length (m (ft)) 5m (16.3ft)

Environmental

Operating Temperature °C (°F) 0 to 60°C (32 to 140°F)
Storage Temperature °C (°F) -35 to 70°C (-31 to 158°F)
Heat Dissipation Passive Convection
Surface Temperature °C (°F) max. at ambient 44°C (111.2°F)
Non-condensing Humidity 0 to 95%
Ingress Protection Rating IPX0

Mechanical & Packaging

Main Unit Dimensions 170.2 x 78.7 x 43.2mm | 6.7 x 3.1 x 1.7in
Main Unit Weight 0.49KG | 1.08lbs
SKU NEX.KIT-R41-CELFI-CARAVAN
Brand Nextivity
