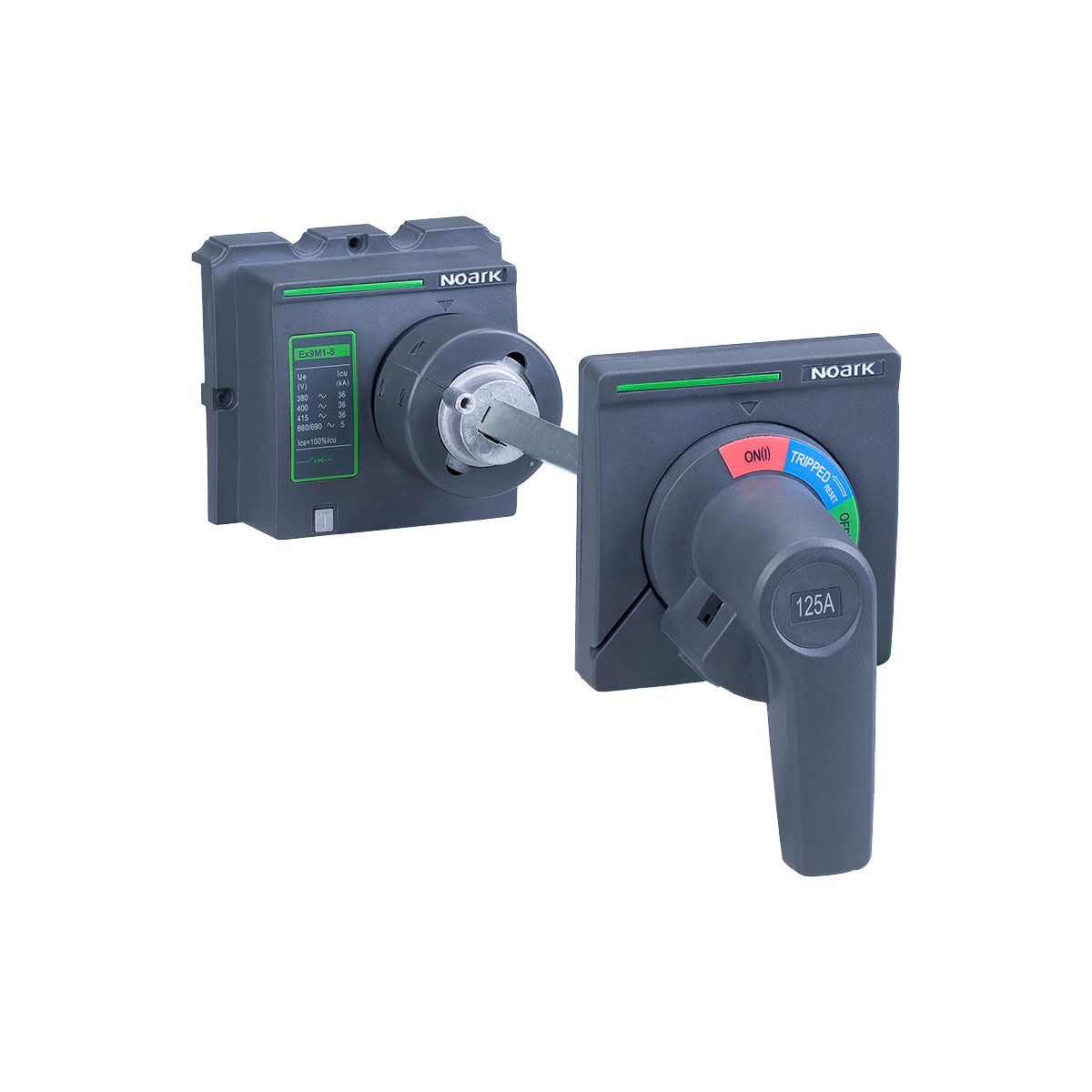

Noark ERH23 Extended Rotary Handle for Frame 3 MCCB

The 101482 Rotary Handle ERH23 is a versatile and secure rotary handle, designed for use with frame size M3. It is an ideal solution for operating switch disconnectors and power circuit breakers with added safety and convenience features.

Key Features and Characteristics:

  • Lockable Design

    Enhances safety by allowing the rotary handle to be locked, preventing accidental or unauthorized use.
  • Compatibility

    Suitable for both switch disconnectors and power circuit breakers, making it a versatile choice for various electrical setups.
  • Extension Shaft

    Comes with an extension shaft that can be shortened as per requirements. Additionally, a longer extension shaft of 500 mm is available separately.
  • Scope of Delivery

    Includes a mechanism block, an extension shaft, and the rotary handle itself, providing all necessary components for installation and operation.
  • Status Indication

    Clearly indicates the connected breaker status (ON-OFF-TRIP), enhancing safety and ease of use.
  • High Degree of Protection

    Rated IP54 and IK08, ensuring protection against dust ingress, water splashes, and mechanical impacts.
  • Locking Capability

    Can be locked in both ON and OFF positions with up to three padlocks (not included), adding an extra layer of security.

The 101482 Rotary Handle ERH23 is more than just a control mechanism; it's a robust and reliable solution, ensuring operational safety and flexibility in various electrical environments.

Technical Specification Detail
Lockable Yes
Suitable for Emergency Stop No
Colour Grey
Extension Shaft Included Yes
Degree of Protection IP54, IK08
Locking Option Up to three padlocks
SKU NRK.25121
Model # 101482
Brand Noark
Shipping Weight 0.2500kg
Shipping Length 0.500m
