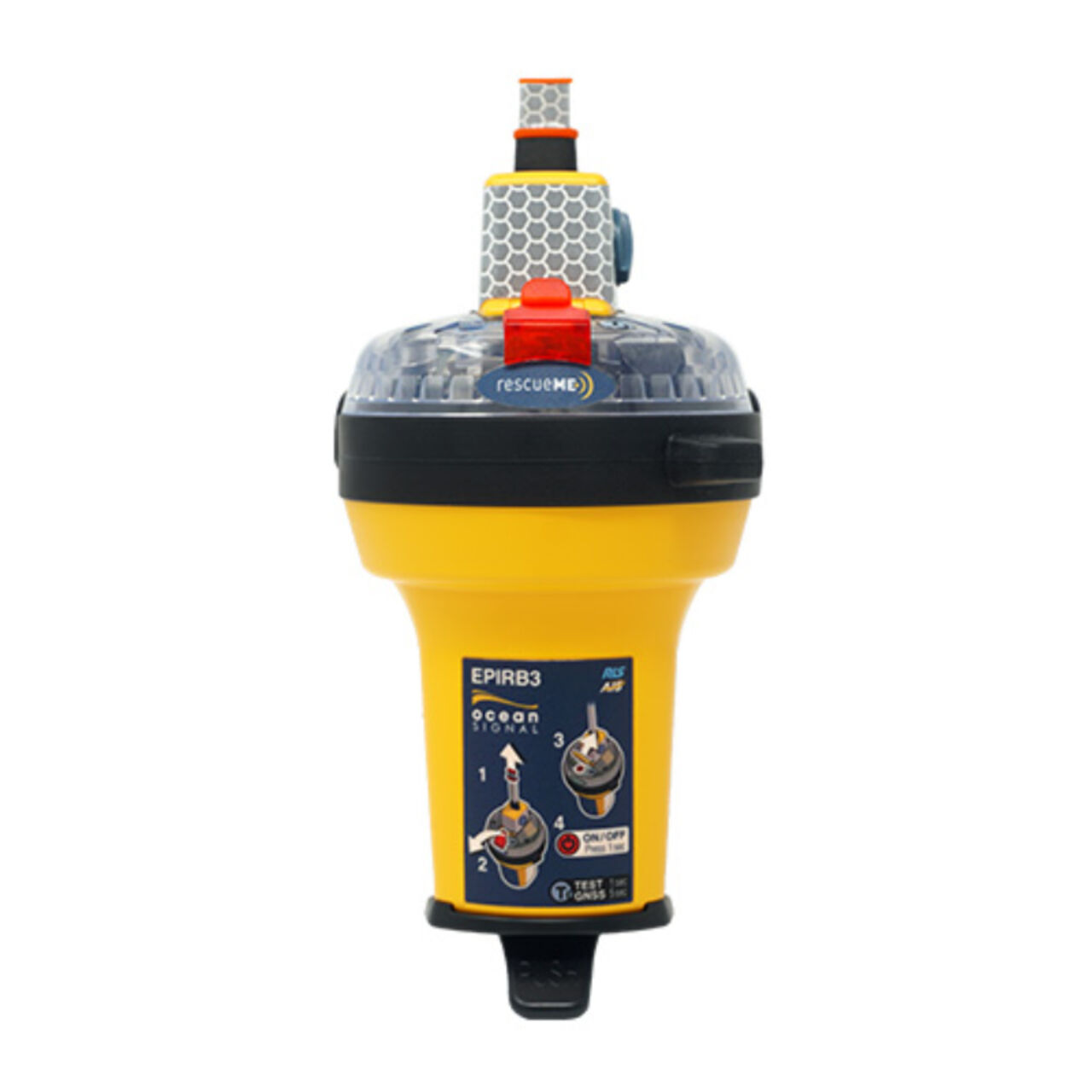

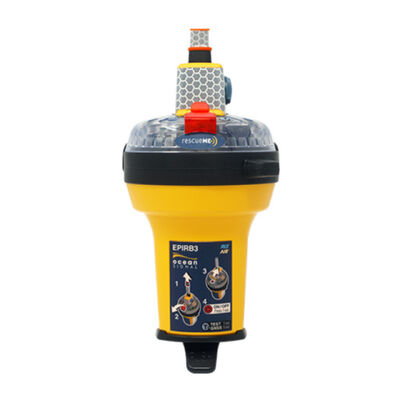

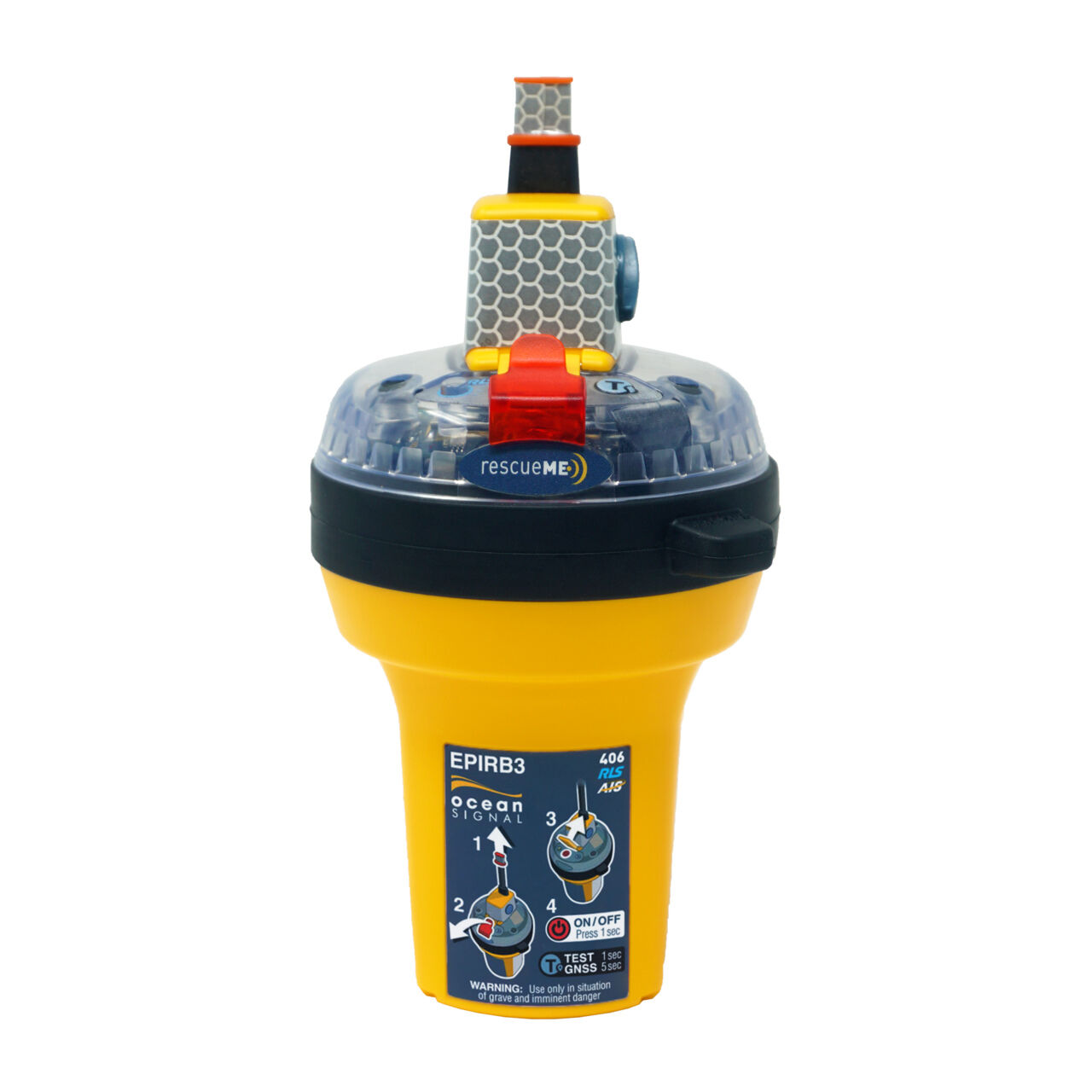

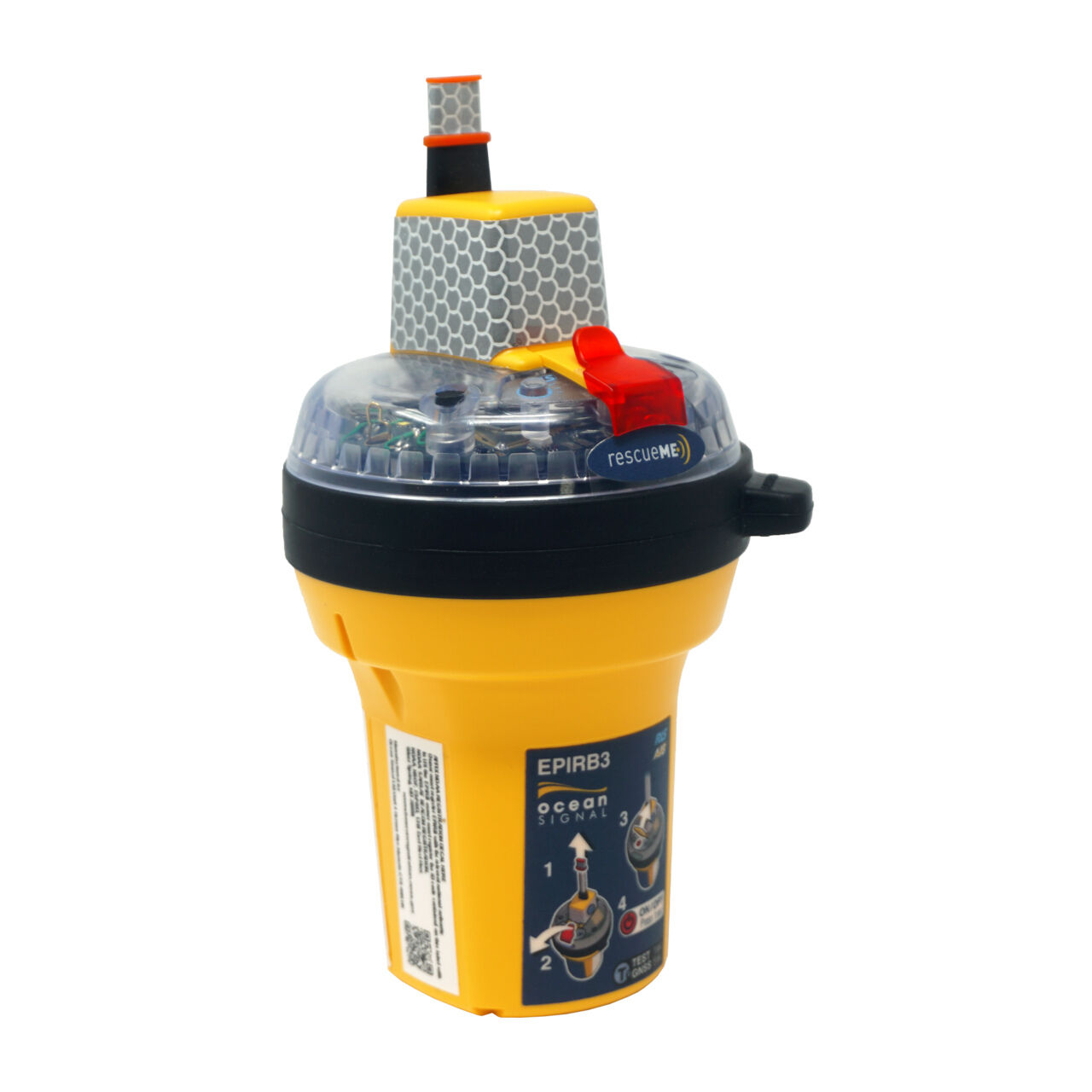

Ocean Signal rescueME EPIRB 3
Deliver worldwide emergency alerts with a compact beacon featuring global satellite coverage, local AIS broadcast, NFC app support, and multi-satellite positioning.
SKU: OCE.OSEPIRB3 | MPN: OSEPIRB3
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Advanced Distress Beacon Solution for Enhanced Maritime Safety Worldwide
Reliable emergency alerting is crucial for maritime operations, and this compact beacon offers powerful, modern signalling capabilities. Designed for both recreational and professional use, it combines global and local alert systems with user-friendly monitoring features. With a lightweight build and advanced positioning accuracy, it provides confidence and peace of mind in critical situations.
Key Features
- Global emergency notification capability: Utilises a 406 MHz signal to communicate distress alerts through the Cospas-Sarsat satellite network, delivering worldwide coverage for rescue coordination.
- Local proximity alerting function: Sends AIS distress notifications over VHF frequencies, enabling vessels nearby to rapidly identify and respond to the emergency location.
- Return link service confirmation: Offers visual feedback that distress alerts have been successfully received by rescue services, giving users crucial reassurance during emergencies.

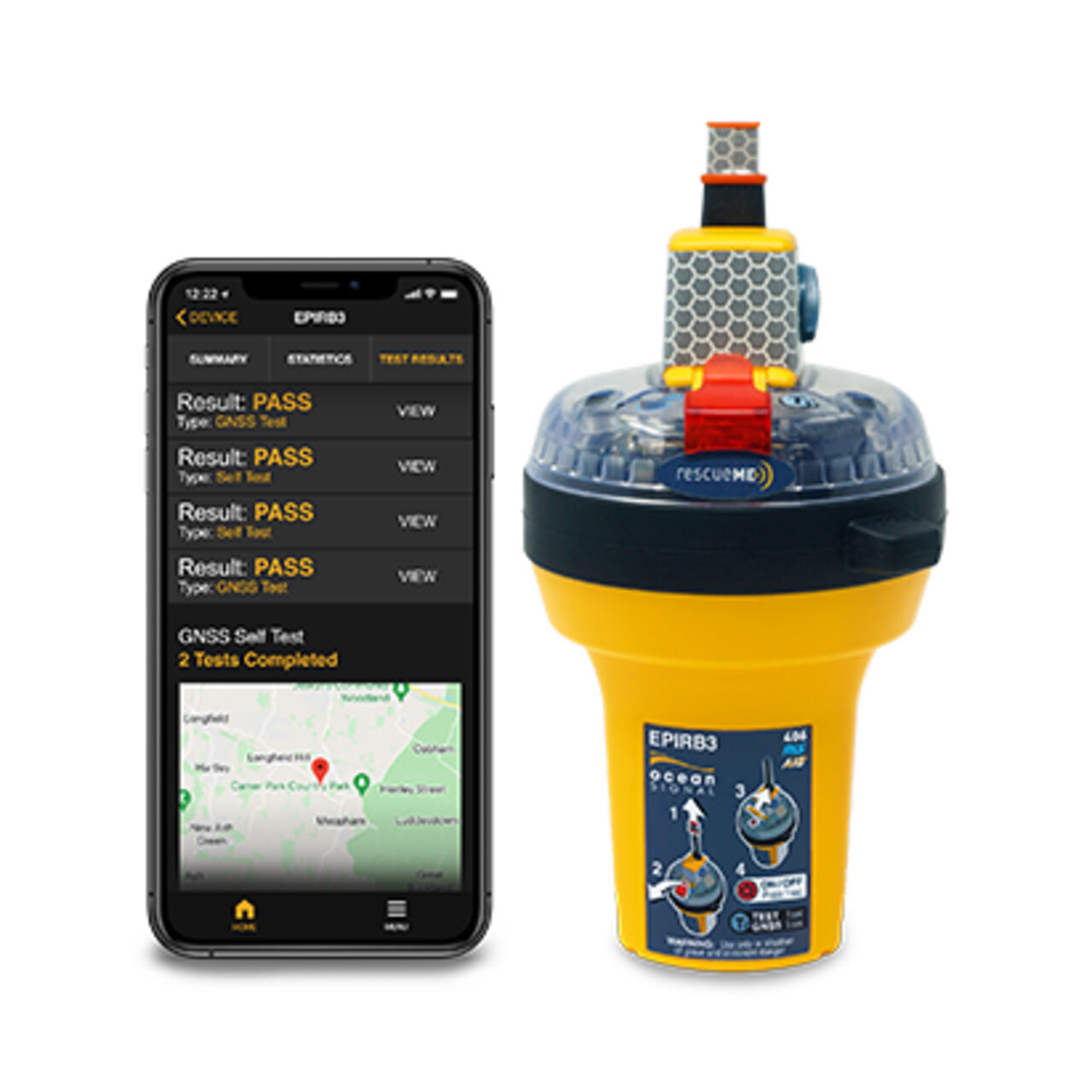

- Near field communication support: Connects to mobile applications via NFC to enable convenient battery monitoring and device self-testing through smartphones.
- Multi-constellation satellite positioning: Accesses GPS, Galileo, and Glonass systems for enhanced accuracy and faster location transmission during distress situations.
- Visual and infrared locating aids: Includes high-intensity strobe and infrared lights to improve visibility in darkness or low-visibility conditions during search and rescue operations.
- Extended operational battery life: Equipped with a ten-year battery shelf life and capable of providing over 48 hours of continuous distress signalling when activated.
- Compact, lightweight design: Significantly smaller than previous models, making it highly portable and easier to install in tight spaces without compromising performance.
Equip your vessel with a compact, technologically advanced beacon designed to deliver reliable distress signalling when it matters most.
406 MHz Transmission | |
---|---|
Transmit Power (EIRP) | 12W |
Frequency | 406.031 MHz ±1KHz |
Modulation | Phase ±1.1 Radians (16K0G1D) |
Encoding | Biphase L |
Rate | 400 bps |
AIS Transmission | |
Transmit Power (EIRP) | 1Watt ±3dB |
Frequency | 161.975/162.025 MHz ±500Hz |
Baud Rate | 9600 baud |
Synchronisation | UTC |
Messages | Message 1 (Position), Message 14 (Status) |
Repetition Interval | 8 messages/minute – Message 14 sent twice every 4 minutes |
121.5 MHz Homing Transmission | |
Transmit Power (PERP) | 50mW ±3dB |
Frequency | 121.5 MHz |
Modulation Duty Cycle | >35% |
Modulation Factor | 0.85 to 1.00 |
Frequency Stability | ±50ppm |
Duty Cycle | >98% |
Light | |
Light Type | High Intensity LED and Infrared (IR) |
Light Colour | White and IR |
Average Intensity Visible | Greater than 1 candela |
Average Intensity Night Vision Light | 15mW/sr |
Flash Rate | 24 per minute (nominal) |
Battery | |
Type | Lithium Iron Disulphide (LiFeS₂) |
Operating Time | Greater than 48 hours @ -20°C |
Battery Replacement Period | 10 years |
GNSS Receiver | |
Satellite Channels | 72 acquisition |
Sensitivity | -167dBm |
Cold Start / Re-acquisition | -148dBm / -160dBm |
GNSS Antenna | Microstrip Patch |
SKU | OCE.OSEPIRB3 |
Model # | OSEPIRB3 |
Brand | Ocean Signal |
Shipping Weight | 0.7000kg |
Shipping Width | 0.250m |
Shipping Height | 0.120m |
Shipping Length | 0.140m |
Shipping Cubic | 0.004200000m3 |
Unit Of Measure | each |
