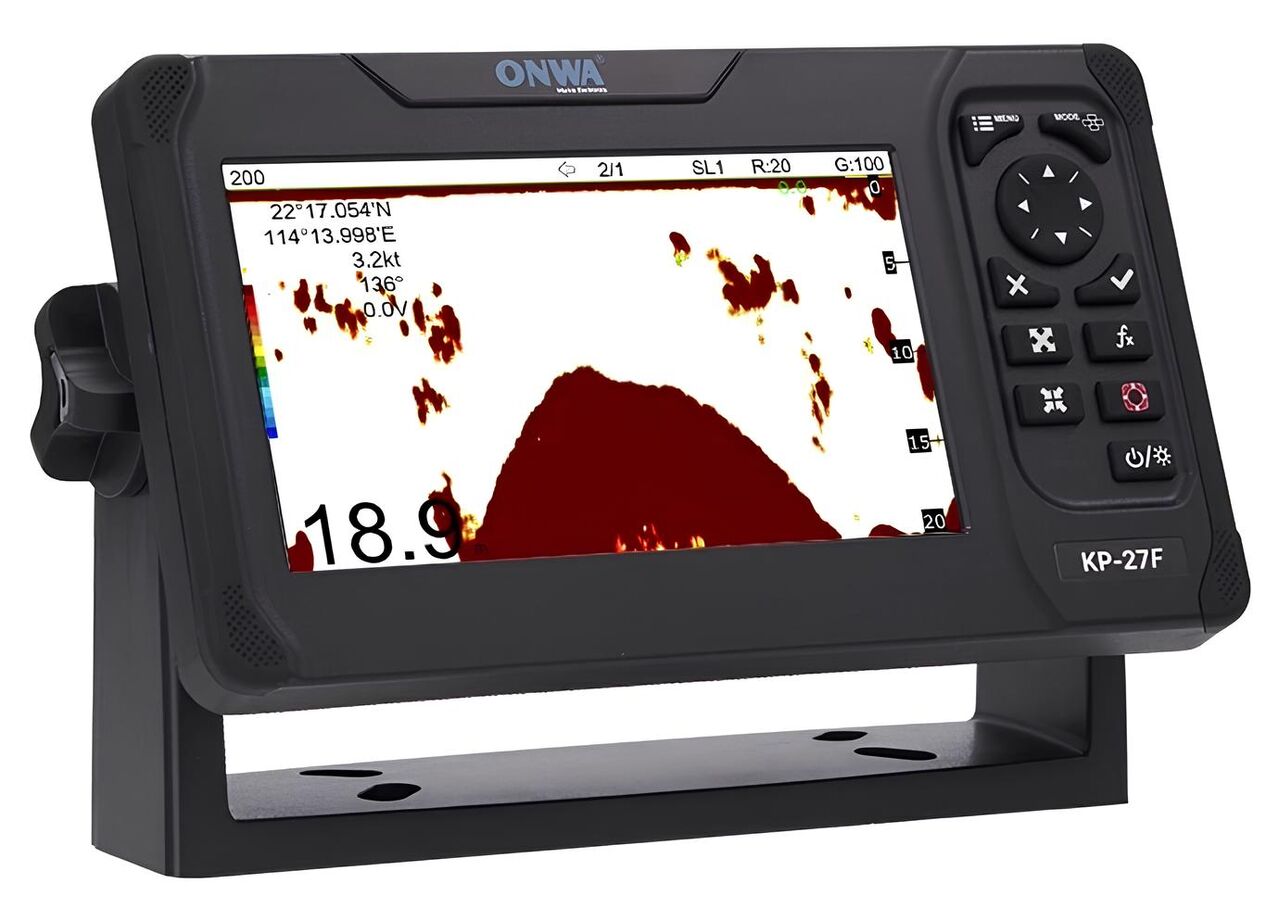

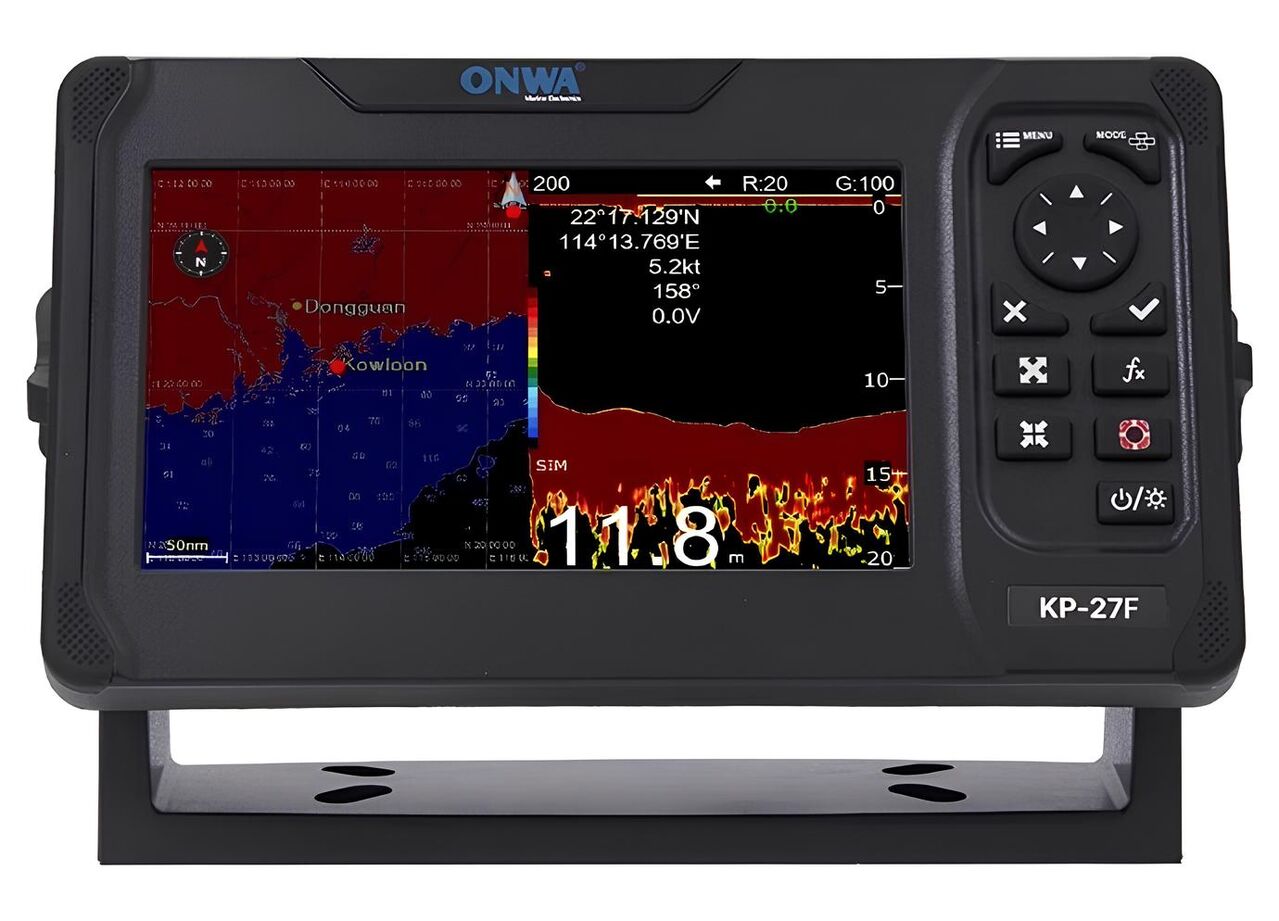

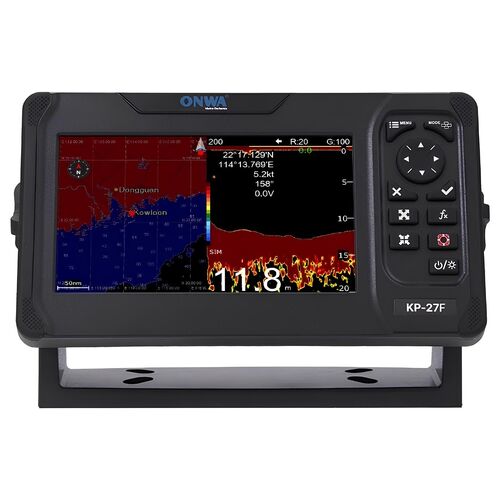

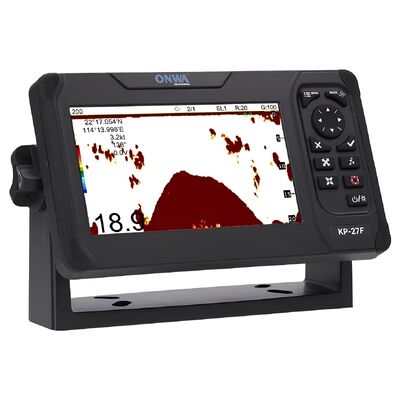

Efficient Marine Navigation and Sonar System in Compact Display Unit

This compact marine GPS chart plotter with integrated 600W fish finder offers both navigational accuracy and underwater detection. Ideal for smaller boats, it combines sonar and chart plotting in one unit for simplicity and functionality on the water. The clear 5-inch screen supports various chart formats and sonar modes to ensure you’re covered in diverse conditions.

Key Features

  • High-Resolution Colour Display: Features a bright 5-inch colour LCD for clear chart and sonar readings in varying light conditions.
  • Integrated GPS Chart Plotter: Supports K-Chart, C-Map MAX, and Navionics+ formats for precise marine navigation.
  • Powerful 600W Fish Finder: Offers dual-frequency (50/200kHz) sonar for accurate depth and fish targeting performance.
  • Compact and Waterproof Design: Durable housing rated for marine environments, perfect for exposed helm installations.
  • User-Friendly Controls: Intuitive menu and button layout ensure easy operation even during active navigation.
  • Flexible Mounting Options: Can be dash-mounted or bracket-mounted to suit various vessel layouts.

Reliable functionality in one unit, perfect for fishers and boaters.

Product Specifications
Display 5" TFT LCD, 800 x 480 resolution
Sonar Output 600W RMS
Sonar Frequency 50/200 kHz dual frequency
GPS Chart Support K-Chart 3.0, C-Map MAX, Navionics+
Waterproof Rating IPX7
Mounting Options Bracket mount or flush mount
Power Supply 10–35V DC
Dimensions Approx. 173 x 137 x 71 mm
SKU ONW.KP-25F
Model # KP-25F
Brand ONWA
Shipping Weight 2.0000kg
Shipping Width 0.290m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.010150000m3
Unit Of Measure ea
