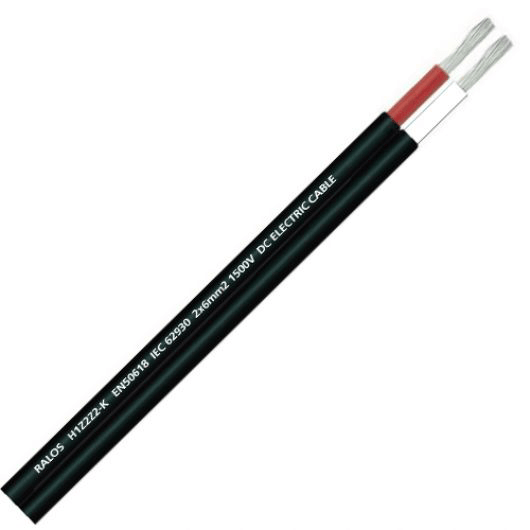

DC Solar Cable - Electron beam cross-linked Solar PV twin core cable

This DC Solar Cable is developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation. Twin core solar cables provide a durable, high performance interconnection solution between photovoltaic (PV) solar panels to the inverter.

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked co-polymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

Specifications

  • Sheath and Inner Insulation: XLPE
  • Rated current: 70 A (6.0 mm²)
  • Nominal Voltage: U0 / U: 0,6 / 1 kV AC / max. 1,8 kV DC
  • Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
  • Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
  • Conductor cross section mm²: 2x 6.0mm²
  • Conductor Ø mm: 3.0mm²
  • Outer Ø mm: 6.0 X 12.0mm²
  • Conductor resistance/ 20℃ Ω / km: 5.09
  • Ambient temperature: –40 °C ...+90 °C
  • Bending radius: Dynamic: >4 × OD
  • Resistance to... tested according to IEC 60811-2-1: Acids and alkali
  • Resistant to: UV: HD 605/A1 / Ozone: EN 50396
  • Approvals: TUV EN 50618 and IEC62930



SKU RAL.RC2C6EN
Model # RC2C6EN100
Brand Ralos
Shipping Weight 0.3000kg
Shipping Width 0.020m
Shipping Height 0.100m
Shipping Length 0.020m
Shipping Cubic 0.000040000m3
Unit Of Measure m
