Wideband omnidirectional antenna and low-loss cable kit for 4G cellular signal installations

This wideband omnidirectional antenna provides consistent cellular signal reception across multiple frequency bands, making it suitable for CEL-FI repeater systems, cellular modems, routers and other mobile communication equipment. Its 360° coverage allows signals to be received from multiple directions without requiring precise antenna alignment, while the rugged UV-stable construction supports permanent outdoor installations and use on moving machinery. The supplied 10 m low-loss coaxial cable provides the connection between the antenna and compatible SMA-equipped equipment.

Key Features

  • Wideband cellular coverage: Operates across 698 to 2700 MHz to support commonly used 4G cellular frequency bands.
  • High antenna gain: Delivers 5 dBi gain across 698 to 960 MHz and 6 dBi across 1695 to 2700 MHz for improved cellular signal reception.
  • Omnidirectional coverage: Provides 360° azimuth coverage, removing the need to aim the antenna directly towards a cellular tower.
  • Suitable for moving equipment: Vertical polarisation and broad vertical coverage help maintain connectivity as vehicles or machinery tilt, pitch or change direction.
  • Outdoor construction: Ruggedised UV-stable PVC construction and stainless steel mounting components support installation in harsh Australian conditions.
  • Wide operating temperature: Suitable for operation from -40°C to 65°C.

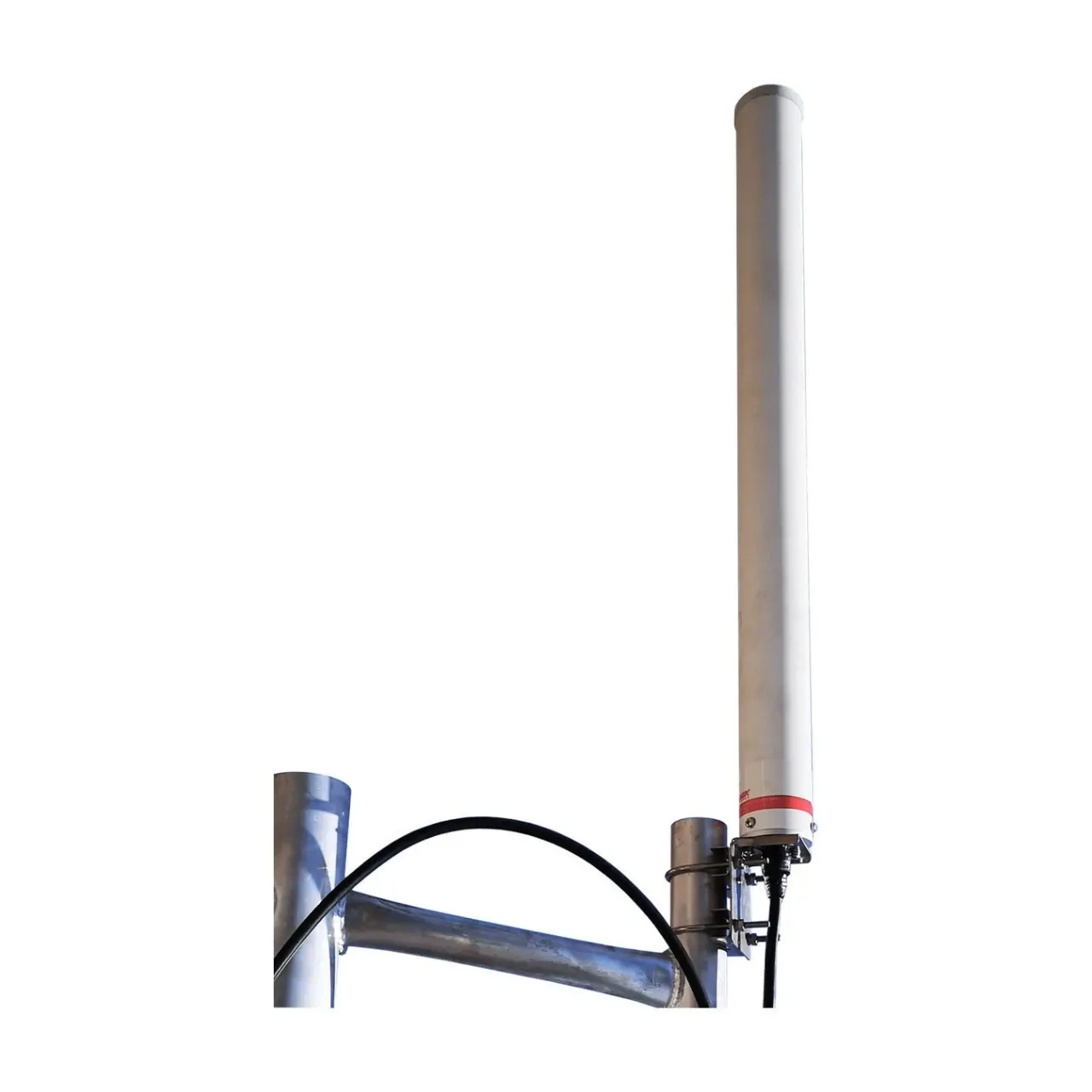

  • Pole mounting: Supplied stainless steel L-bracket provides a secure mounting point for fixed and mobile installations.

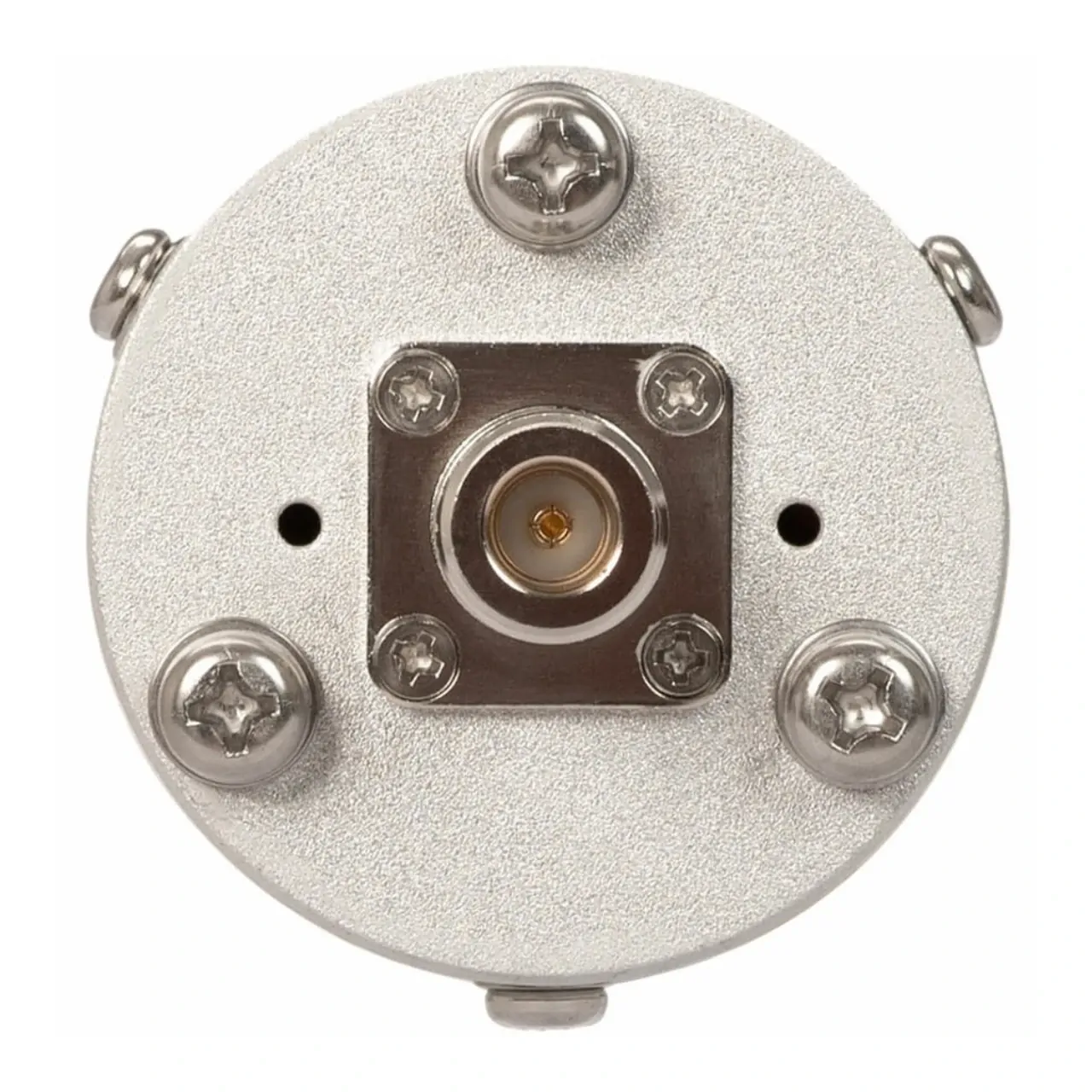

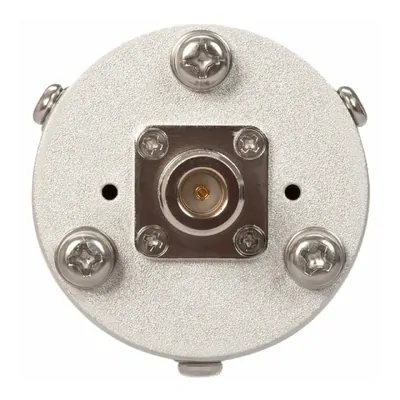

  • N Female antenna connection: Integrated N Female connector provides a secure RF connection to compatible coaxial cable assemblies.
  • 10 m low-loss cable: Includes 10 m PTL-240 coaxial cable terminated with N Male and SMA Male connectors for connection to compatible cellular equipment.

Its combination of wide frequency coverage, omnidirectional reception and durable construction supports cellular installations where tower direction may vary or precise antenna alignment is impractical.

Category Specification Details
Model Number VCOL-6927.N2 Powertec 4G High Gain Omni Antenna
Order Code ANT-BH-OM-204 -
Frequency Range 698 to 2700 MHz Wideband performance across 4G/LTE frequencies
Gain 5 dBi (698-960 MHz) Higher gain on lower frequency bands
Gain 6 dBi (1695-2700 MHz) Higher gain on mid-frequency bands
Polarisation Vertical SISO
Design Type Collinear Omnidirectional
VSWR Less than 2.3:1 Ensures efficient signal transmission
Azimuth Beamwidth 360° Full omnidirectional coverage
Vertical Beamwidth 15° to 40° Varies with frequency range
Input Impedance 50 Ω Standard for cellular antennas
Max Input Power 100 W Handles high power inputs
Connector N Female Integrated connector
Mounting Pole Mount Ø 25-52 mm
Dimensions 680 × 63 mm Length x Diameter
Weight 1.9 kg -
Operating Temperature -40 °C to 65 °C Built for harsh environments
Construction PVC, Stainless Steel Ruggedised for Australian conditions
Included Accessories Stainless Steel L-Bracket For secure installation
SKU PWT.ANT-BH-OM-204-10
Model # VCOL-6927-6.N2
Brand Powertec
Shipping Weight 2.5000kg
Shipping Width 0.120m
Shipping Height 0.110m
Shipping Length 0.800m
Shipping Cubic 0.010560000m3
Unit Of Measure ea
