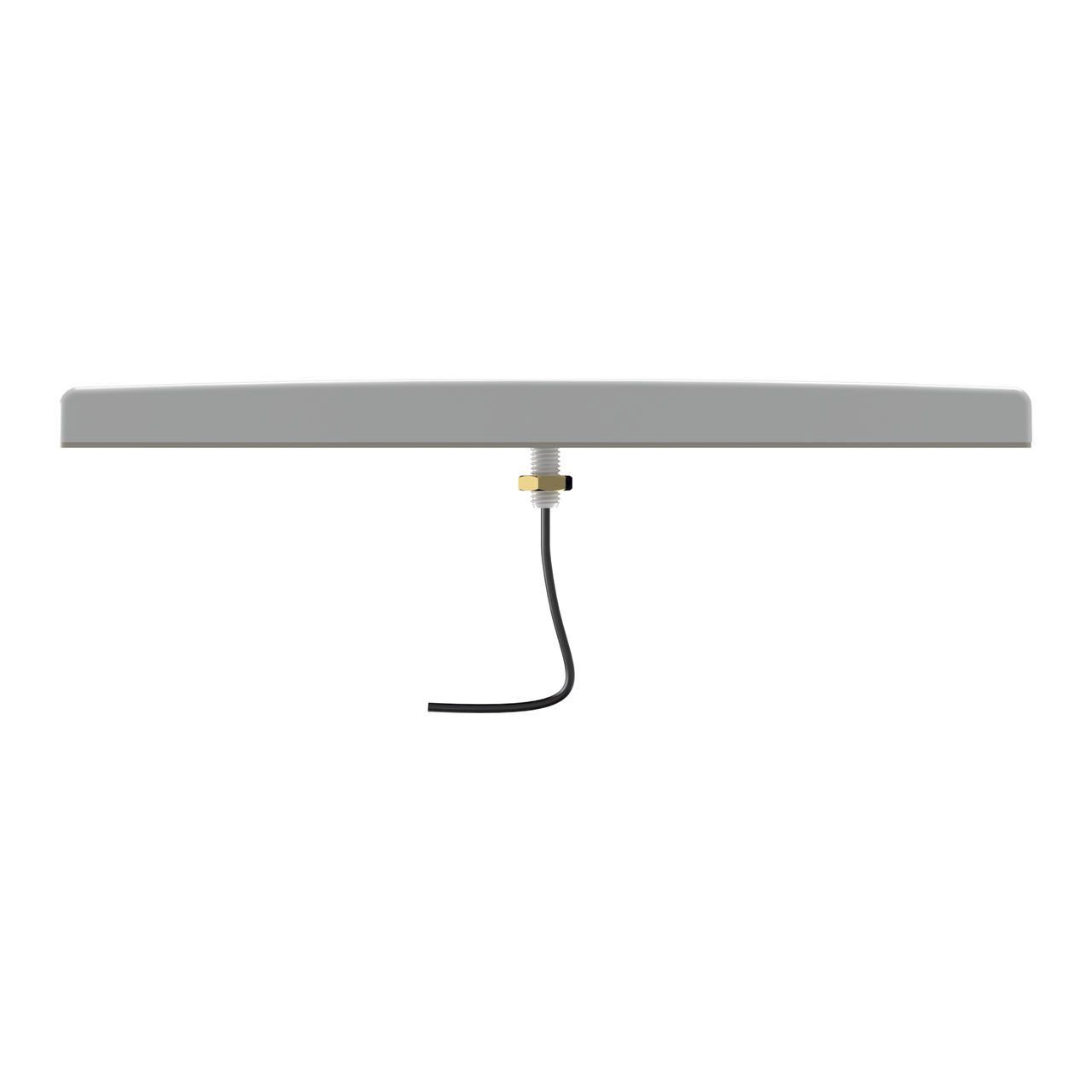

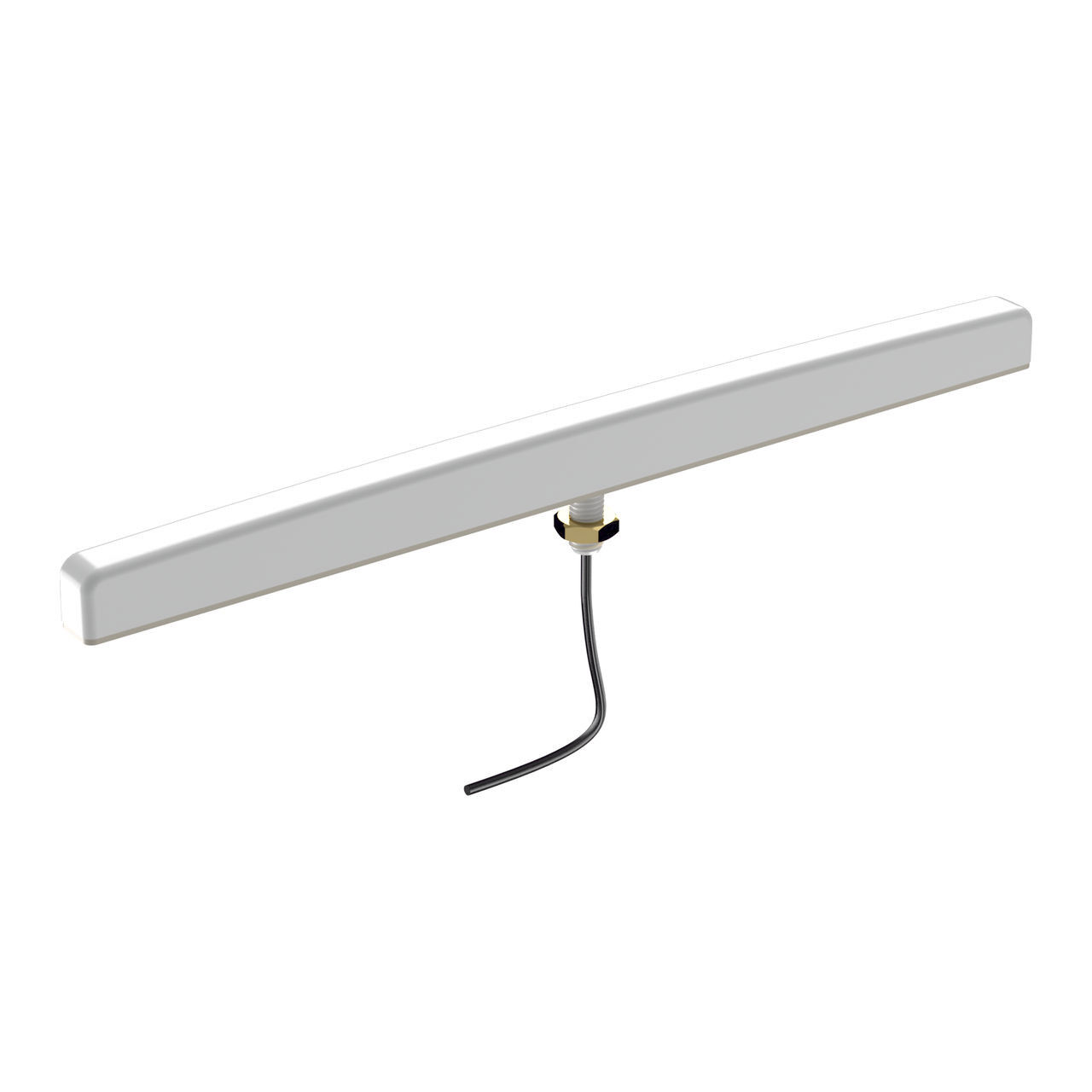

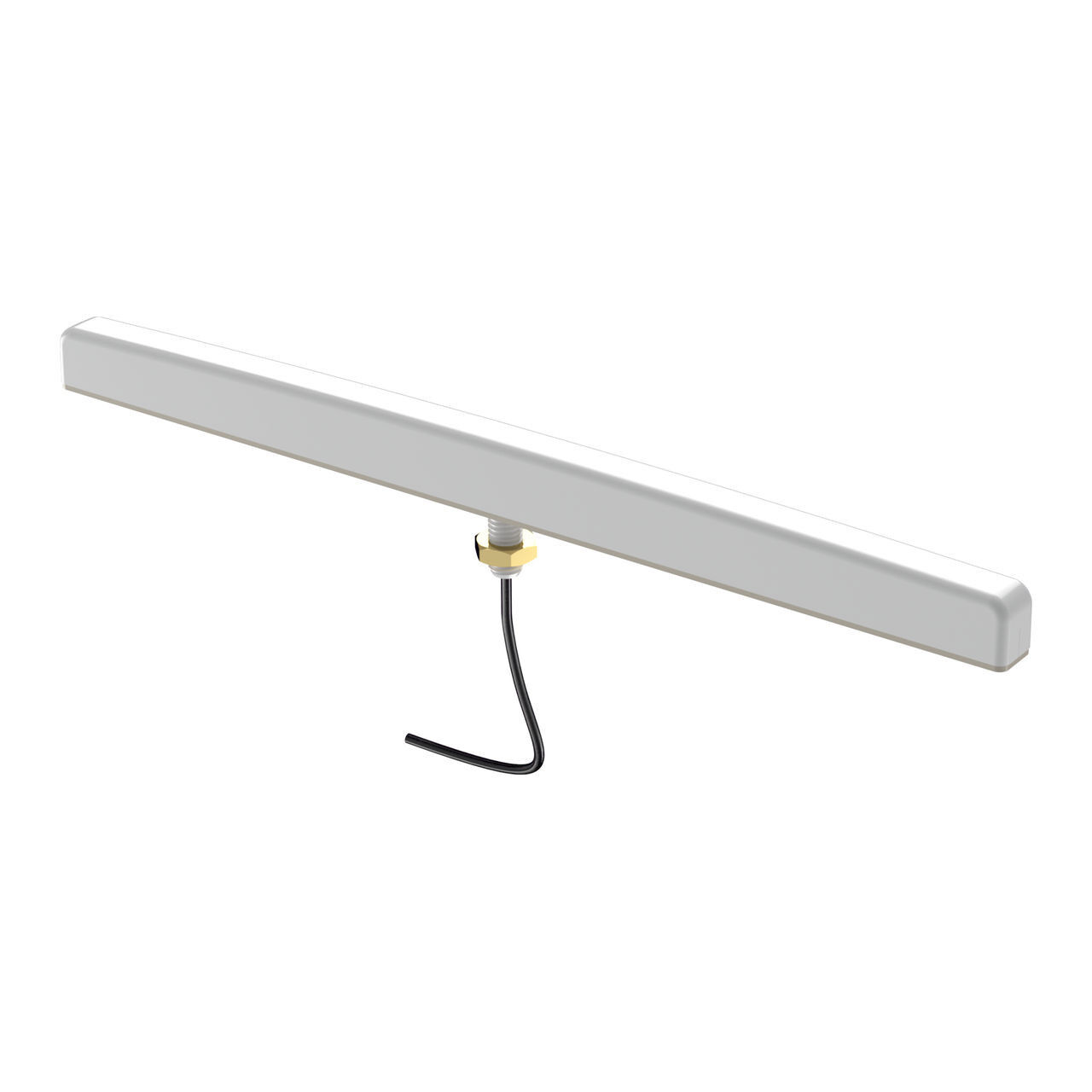

The DASH-1 bi-directional antenna is designed for low profile requirements such as Smart Meters. The DASH-1 antenna is designed with installation simplicity in mind, while covering the LTE frequency bands from 698 – 2700MHz with a modest 3.8 dBi gain.

Supports the following IoT technologies:

  • Zigbee
  • Wi-Fi
  • Z-Wave
  • Wi-Fi HaLow
  • LoRaWAN
  • LTE-M/NB-IoT
  • Sigfox
  • Bluetooth

 Features:

  • Omni-directional antenna
  • Wideband frequency ranges from 690-2700 MHz
  • Stylish but robust design
  • Robust, vandal-resistant and waterproof (IO67) antenna
  • Ultra-versatile mounting options for easy installation
  • Right Angle SMA Male, 1m



Specification Description
Industry (Application) IoT M2M & Smart Meter Antennas
Technology Cellular (LTE/2G/3G/4G)
Frequency Band 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz
Frequency Range 698 – 2700 MHz
Gain 4dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n51, n53, n65, n66, n67, n74, n75, n76, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B74, B85, B103, B106
Wi-Fi Standard Wi-Fi 3 (802.11g)
Mounting Type Spigot Mount
Connectors SMA
MIMO SISO
Polarisation Linear Polarised
Environmental IP67
Enclosure Name DASH
Enclosure Size Small
LTE Ports 1
SKU POY.DASH-1-01-V1
Model # A-DASH-0001-01-V1
Brand Poynting
Shipping Weight 0.0700kg
Shipping Width 0.270m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000540000m3
