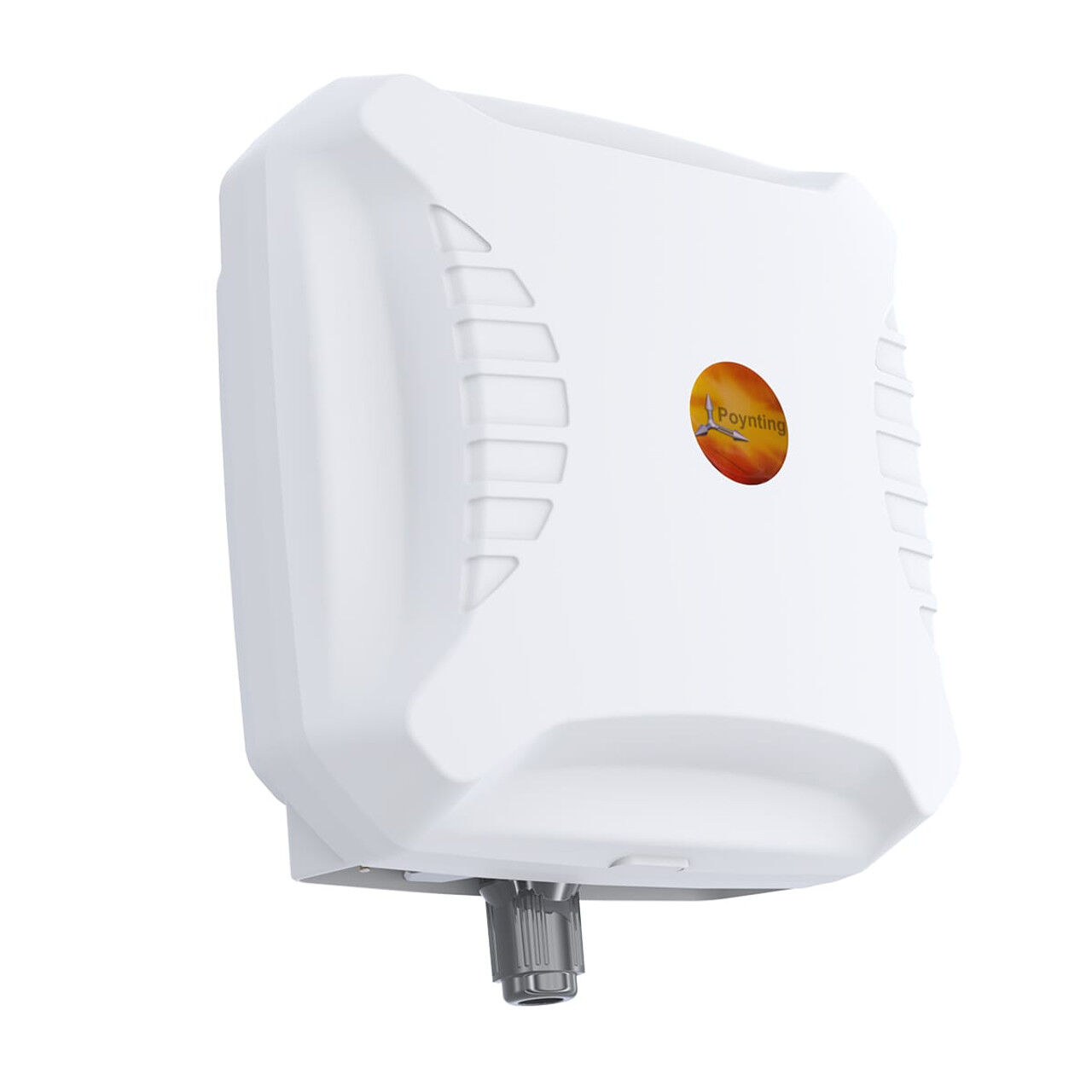

High-performance enclosure enabling versatile multi-antenna connectivity across diverse environments

The EPNT-01 is designed for enhanced MIMO configuration, providing stability and high throughput in built-up areas. It includes four cross-polarised antennas for 4x4 MIMO or dual 2x2 MIMO routers, and two dual-band Wi-Fi antennas. This makes it highly versatile for urban and rural cellular, commercial, industrial, and agricultural settings.

Features

  • Multi-Functionality: Combines 4x4 MIMO 4G/5G and 2x2 MIMO Wi-Fi antennas in one enclosure.
  • Wideband Coverage: Supports frequencies from 617 to 3800 MHz, suitable for LTE & 5G networks.
  • Cross-Polarised Antennas: Enhances performance, especially in areas with multiple base stations.
  • Durable Design: Weather, dust, and vandal-resistant enclosure with an IP65 rating.
  • Router Compatibility: Can accommodate routers up to 185 x 145 x 45 mm³ in size.
  • Dual-Band Wi-Fi: Includes omni-directional antennas for both 2.4 GHz and 5 to 6 GHz Wi-Fi bands.

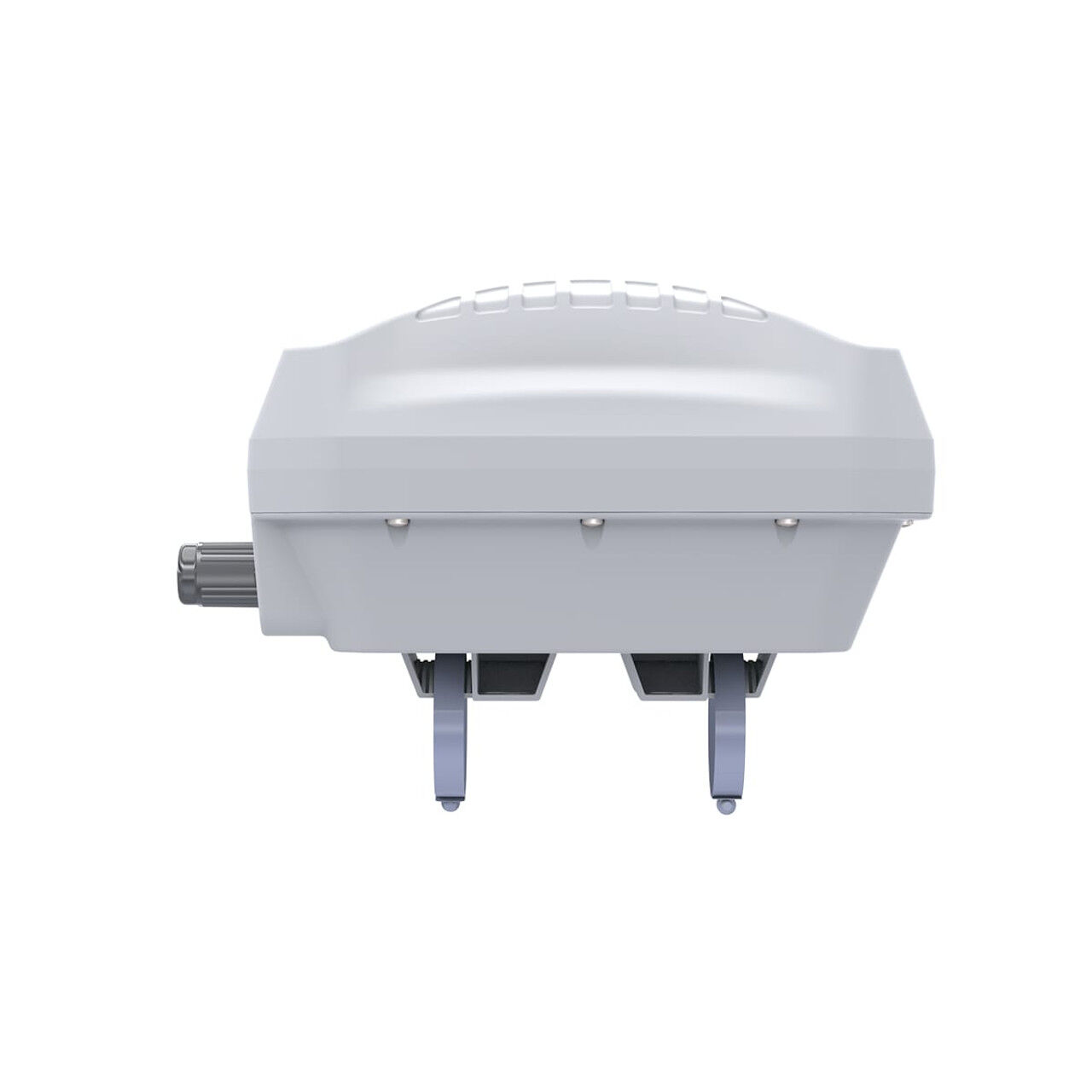

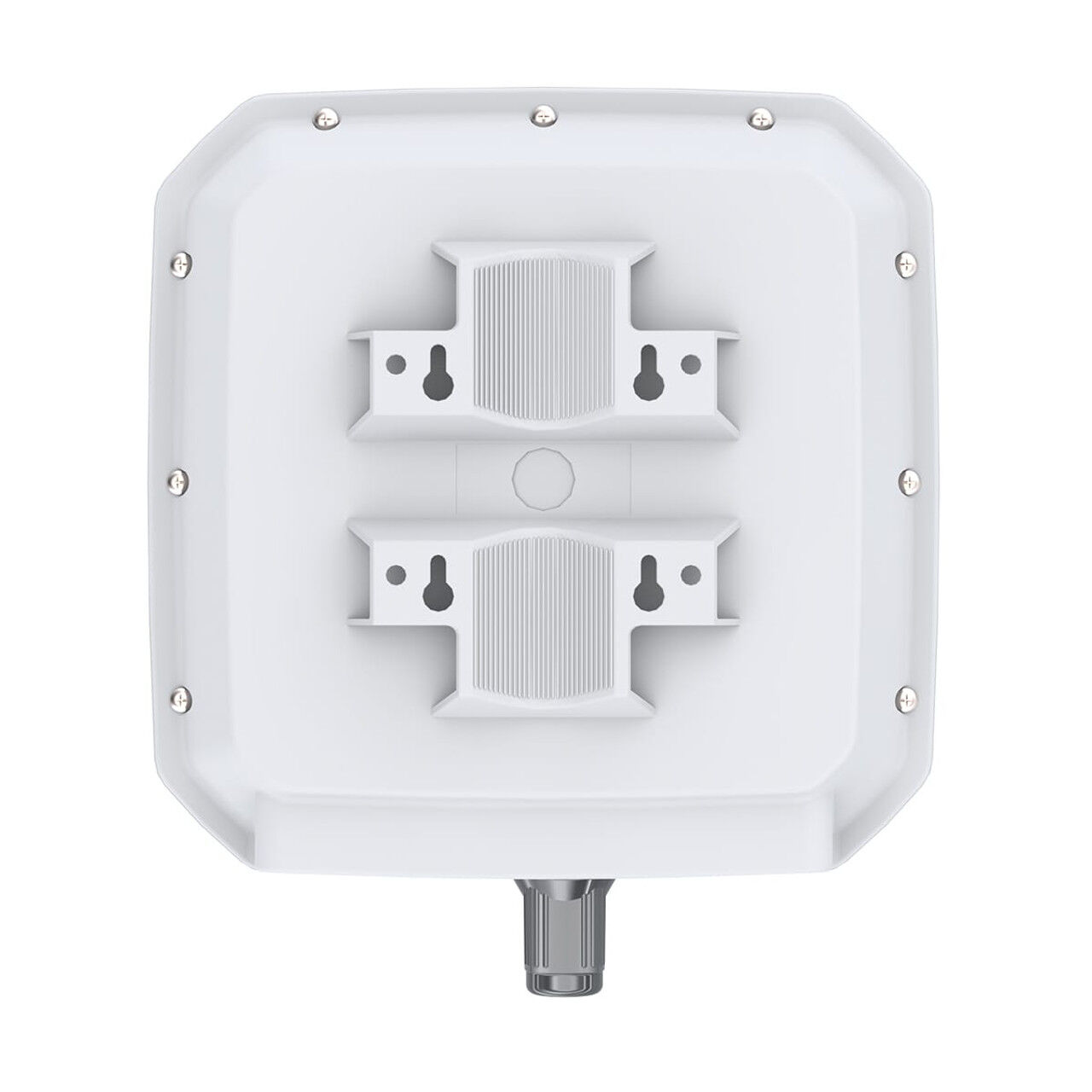

  • Versatile Mounting: Options for pole, wall, and window mounting.
Specification Description
Technology Cellular (LTE/2G/3G/4G/5G), Wi-Fi
Industry (Application) Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas
Frequency Range 617 – 3800 MHz
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 5000-7200MHz
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Gain 4.5dBi
Directionality Omni-Directional
Wi-Fi Standard Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Mounting Type Pole Mount, Wall Mount, Window Mount
Connectors SMA
MIMO 2×2, 4×4
Polarisation X-Polarised
Environmental IP65
Enclosure Name ePoynt®
Enclosure Size Medium
LTE Ports 4
Wi-Fi Ports 2
Router Housing Dimensions 185x145x45 mm, 5.7×7.28×1.77 inch
SKU POY.EPNT-01
Model # A-EPNT-0001-V2-01
Brand Poynting
Shipping Weight 2.0000kg
Shipping Width 0.410m
Shipping Height 0.180m
Shipping Length 0.280m
Shipping Cubic 0.020664000m3
Unit Of Measure Each
