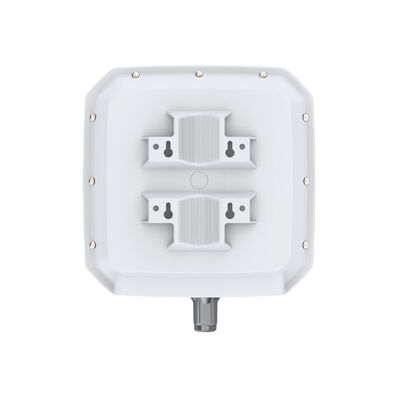

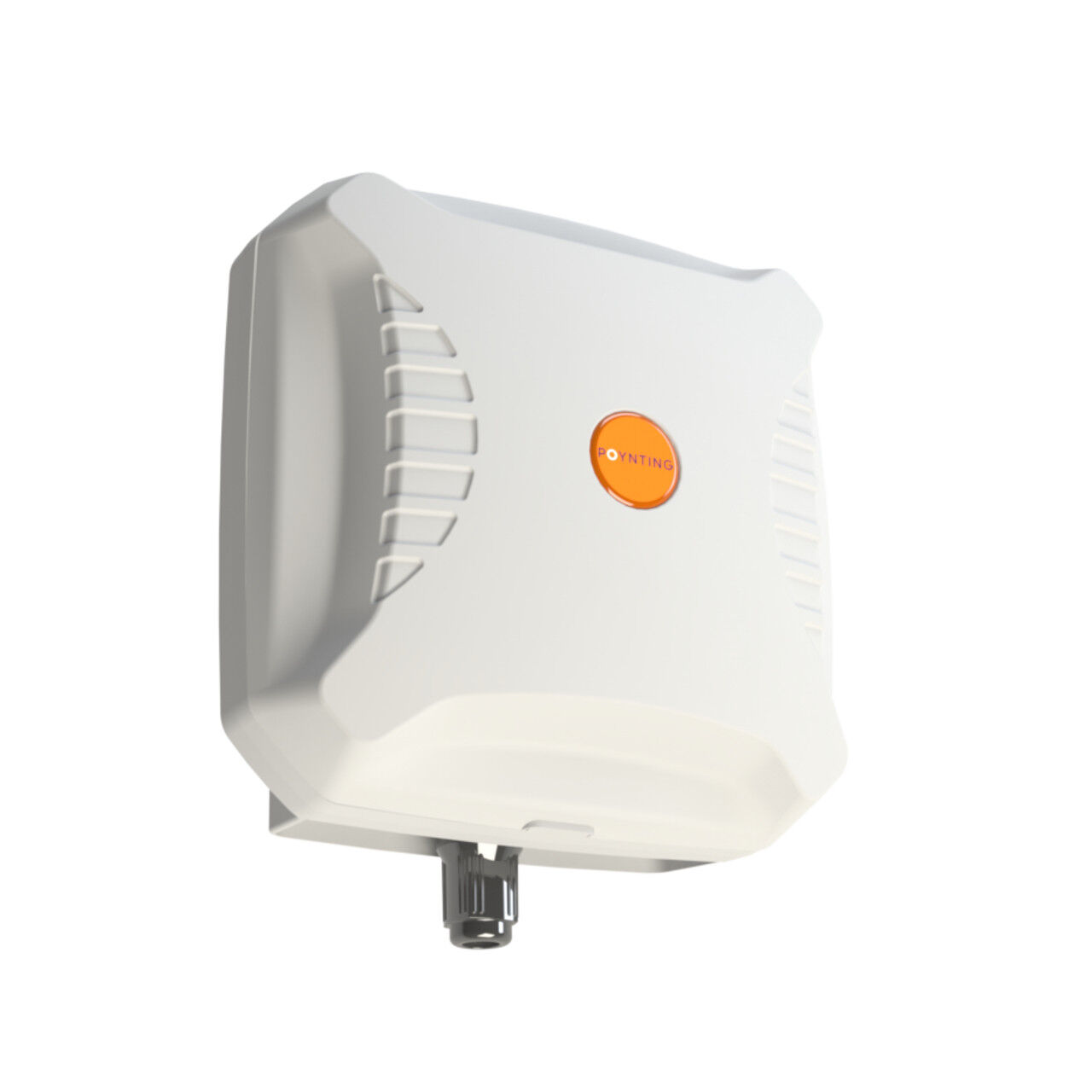

Rugged antenna enclosure delivering powerful 4G, 5G and WiFi

The EPNT-2 is a high-performance antenna enclosure integrating 4x4 4G/5G MIMO and 2x2 WiFi MIMO antennas into a single rugged IP65 housing. It provides wideband coverage from 617 to 4200 MHz with up to 11 dBi gain, while supporting dual-band WiFi from 2.4 GHz and 5–7.2 GHz. Designed to house a router directly inside, it eliminates RF cable losses and delivers exceptional data throughput for both urban and rural applications.

Key Features

  • Integrated antenna enclosure: Combines 4x4 cellular MIMO and 2x2 WiFi MIMO antennas with space for router installation.
  • Wide frequency coverage: Operates across 617–960 MHz, 1710–2700 MHz, and 3400–4200 MHz for full 4G and 5G support.
  • High gain performance: Delivers up to 11 dBi gain on cellular bands and 7 dBi on WiFi for improved data speeds.
  • Cross-polarised MIMO design: Features uni-directional and omni-directional elements for stable multi-antenna operation.
  • Reduced signal loss: Router fits directly inside the enclosure, eliminating long RF cables and boosting efficiency.
  • WiFi dual-band support: Provides 2.4 GHz and 5–7.2 GHz WiFi connectivity with 2x2 MIMO operation.
  • Rugged construction: Built with UV-stable ASA housing, IP65 weather resistance, and IK08 impact protection.

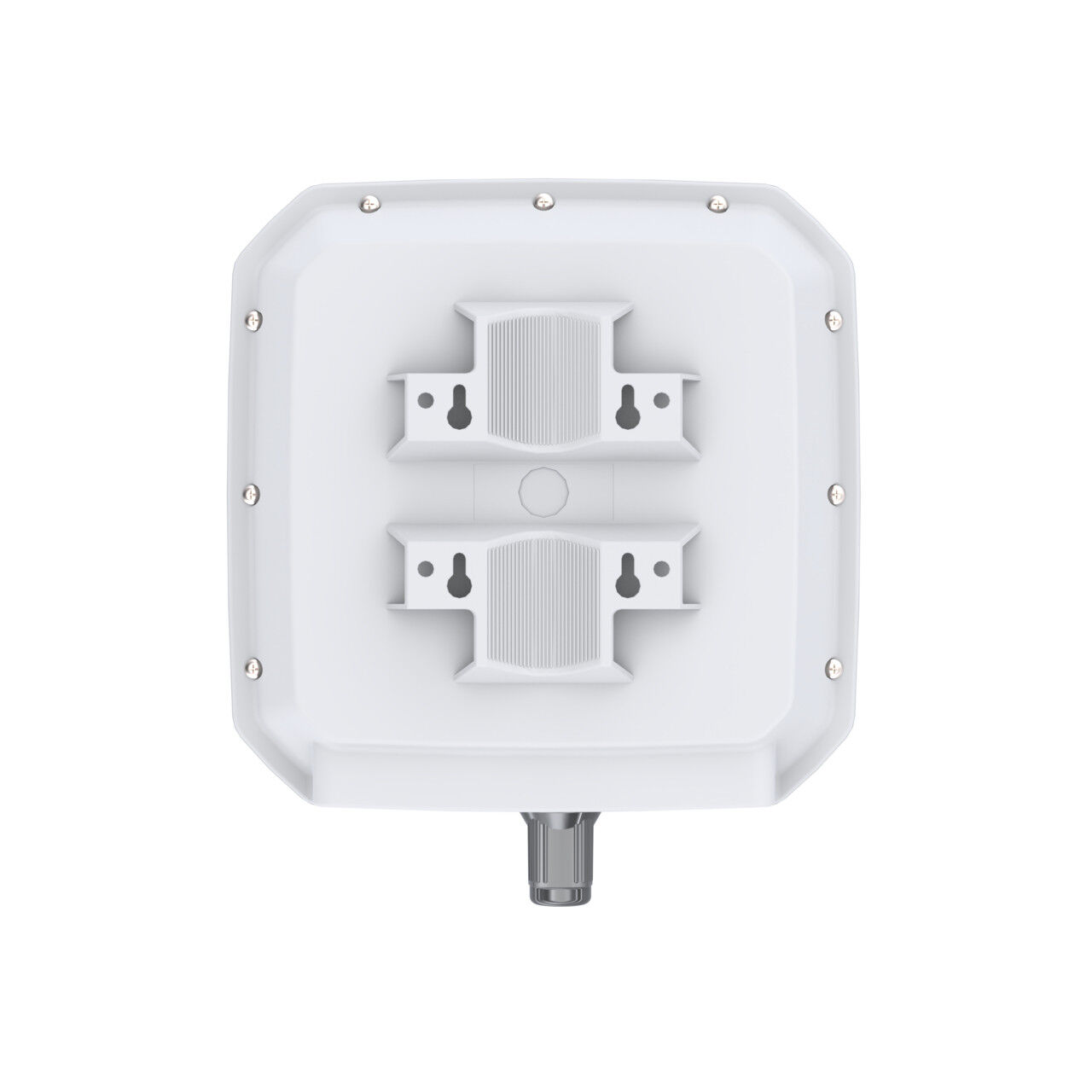

  • Flexible mounting options: Supplied with wall, pole, and window mounting accessories for versatile installations.

Engineered for fixed wireless, commercial, and industrial applications, this enclosure delivers reliable broadband connectivity in demanding environments.

Product Specifications
Frequency Bands (Cellular) 617–960 MHz, 1710–2700 MHz, 3400–4200 MHz
Gain (Cellular) 9 dBi @ 617–960 MHz, 8.5 dBi @ 1710–2700 MHz, 11 dBi @ 3400–4200 MHz
Frequency Bands (WiFi) 2400–2500 MHz, 5000–7200 MHz
Gain (WiFi) 3 dBi @ 2.4 GHz, 7 dBi @ 5–7.2 GHz
MIMO Configuration 4x4 MIMO cellular, 2x2 MIMO WiFi
Polarisation ±45° linear and vertical/horizontal linear
Connector Types 4 x RA SMA (M), 2 x RA RPSMA (M)
Router Space 185 × 145 × 45 mm
Dimensions 260 × 264 × 168 mm
Weight 1.43 kg (2.17 kg packaged)
Radome Material/Colour UV-stable ASA, Brilliant White (Pantone P 179-1C)
Ingress Protection IP65
Operating Temperature -40 °C to +80 °C
Wind Survival ≤ 220 km/h
Impact Resistance IK08
Mounting Options Wall, pole, and window mounts included
Compliance CE, RoHS, ISO 9001:2015
Warranty 2 Years
SKU POY.EPNT-2-V3
Model # A-EPNT-0002-V3-01
Brand Poynting
Shipping Weight 3.0000kg
Shipping Width 0.410m
Shipping Height 0.180m
Shipping Length 0.280m
Shipping Cubic 0.020664000m3
Unit Of Measure Each
